Review Summary
AMD EPYC 7302P 16-core / 32-thread processor, up to 3.3GHz
64-bit x86
Yes (AES-NI)
256GB RDIMM DDR4 ECC (8x 32GB)
1TB+ (12x 128GB)
12x RDIMM DDR4
5GB (Dual boot OS protection)
10x 2.5" U.2 PCIe NVMe / SATA 6Gbps
2.5" U.2 NVMe Gen 4 x4 solid state drives
2.5" SATA solid state drives
Yes
Yes
Yes
2x (2.5G/1G/100M/10M)
2x 25GbE SFP28 SmartNIC port
Yes
Yes
2x
Slot 1: PCIe Gen4 x16
Slot 2: PCIe Gen4 x16
3x
1U Rackmount
Disk, Status, LAN, storage expansion port status
Power, Reset
32 - 104 Degree F (0 - 40 Degree C)
-4 - 158 Degree F (-20 - 70 Degree C)
5-95% RH non-condensing, wet bulb: 80.6 Degree F (27 Degree C)
2x 550W PSU, AC 100-240 V
Operating Mode, Typical: 157.97W
5x 60mm, 12VDC
Buzzer
10,000 (with Max. Memory)
Taiwan
1.73 x 16.93 x 22.91" (4.39 x 43 x 58.19cm)
25.57 lbs (11.59kg)
QTS 5.2.6
QuTS hero h5.2.6
Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022, and 2025
Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)
Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
Yes
Yes
QTS 5.2.6: 308TB
QuTS hero h5.2.6: 5PB
128
QTS 5.2.6: Thick, Thin, Static
QuTS hero h5.2.6: Thick, Thin
QTS 5.2.6: 250TB
QTS 5.2.6: 128
QTS 5.2.6: 250TB
QuTS hero h5.2.6: 5PB
Yes
Yes
Yes
Yes
Thick, Thin
QTS 5.2.6: Yes
Yes
QTS 5.2.6: 250TB
QuTS hero h5.2.6: 1024TB
QTS 5.2.6: 128
QuTS hero h5.2.6: 256
QTS 5.2.6:
LUN Mapping (LUN can be moved between iSCSI and FC)
LUN Masking
WWPN Aliases Import/Export
FC Port Group
FC Port Binding
Multipath IO (MPIO)
Online LUN capacity expansion
LUN snapshot
LUN snapshot replication and clone
QTS 5.2.6: Yes
QTS 5.2.6:
8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
2-bay: JBOD, Single, RAID 0, 1
QuTS hero h5.2.6:
8-bay (and more): Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity
6-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, Triple Mirror, Triple Parity
4-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, Triple Mirror, Triple Parity
3-bay: Single, RAID 0 (Stripe), 1, 5, Triple Mirror, Triple Parity
2-bay: Single, RAID 0 (Stripe), 1
Yes
QTS 5.2.6: Yes
QTS 5.2.6: Yes
Yes (by replacing bigger Disks)
Yes (by adding RAID Group)
Global, Local
Yes
QTS 5.2.6: EXT4
QuTS hero h5.2.6: ZFS
EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
QTS 5.2.6: 5 minutes
QuTS hero h5.2.6: 1 minute
Yes
Yes
Yes
Yes
QuTS hero h5.2.6: Yes
Yes
QTS 5.2.6: Yes
QuTS hero h5.2.6: Yes
QTS 5.2.6: 0, 1, 5, 6, 10
QuTS hero h5.2.6: 0, 1, 10 (journal)
QTS 5.2.6: Yes
Yes
Yes
Yes, (QNAP so on) Management
Yes, (QNAP so on) Management
File sharing across Windows, Mac, and Linux/UNIX
Microsoft networking (CIFS/SMB)
Apple networking (AFP)
NFS version 2/3/4/4.1 services
QuFTP (QTS 5.2.6 only)
FTP, SFTP and TFTP protocols
FTP over SSL/TLS (explicit FTPS)
FXP support
1024
QuTS hero h5.2.6: Yes
QuTS hero h5.2.6: Yes
QuTS hero h5.2.6: Yes
Yes
Yes
QTS 5.2.6: 4096
QuTS hero h5.2.6: 16000
512
200000
Yes
Yes
Yes
QTS 5.2.6: Yes (AFP, CIFS/SMB, FTP, and File Station)
QTS 5.2.6: Yes (CIFS/SMB)
QuTS hero h5.2.6: Yes
Yes
Yes
QTS 5.2.6: Yes (Snapshot shared folder)
QuTS hero h5.2.6: Yes
Yes
Yes
V2, V3
Recover files deleted using AFP, CIFS/SMB, and File Station
Automatic cleanup and file type filter
Log recording: 3,000 event per second
Yes
Yes
IPv4, IPv6
Yes
Yes (7 modes)
Yes
Yes
Yes
SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP (with auto-blocking)
Yes
Yes
Yes (validated by FIPS 140-2 CAVP)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
TLS 1.0/1.1/1.2/1.3
Yes
32
Yes
Management Mode: User customization, Central
Qsync client supported platforms: Windows, macOS, Ubuntu, Android, and iOS
Maximum number of version control: 64
Yes
File Cloud Gateway
QTS 5.2.6: Concurrent Connections = 20 Upload & 20 Download
QuTS hero h5.2.6: Concurrent Connections = 80 Upload & 80 Download
Network Drive Mount: Yes
Free cloud gateway sessions: 2
Yes
NAS to NAS backup
Cloud Backup
Cloud Sync
2-way and Active Sync
Backup Deduplication
Apple Time Machine Backup
External drive backup
Maximum number of backup job: 400
Yes
Yes
Office 365 Backup
Google Workspace Backup
Full-text search
Yes
Previews: Photos, music, videos, PDFs, Gmail, and others
Integrate Mac Finder
Advanced picture search
Search filters
Yes
Browse photos
Virtual and smart albums
AI-assisted photo management: People, things, places, and others
Yes
Yes
Yes
Remote Access: PPTP, L2TP/IPSec, OpenVPN, WireGuard (QTS 5.2.6 only), QBelt (QNAP proprietary)
Supported utility and mobile app: Windows, macOS, iOS, and Android
Supported maximum clients: 100
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Supports Virtual machine instances: Windows, Linux, Unix, and Android
VM importing, exporting, cloning, snapshot capturing, backup, and restoration: All function is Fine
Virtual switches: Can create a virtual switch
Suggested number of virtual machine instances: 32
GPU pass-through:
QTS 5.2.6: Not support GPU
QuTS hero h5.2.6: GPU function is fine
Yes
Supported type: LXC/LXD and Docker
Docker Hub Registry
Container importing and exporting
Console mode
Yes
Supports Ubuntu versions: 16.04 (QuTS hero h5.2.6 only), 18.04, and 20.04
Yes
QTS 5.2.6:
Yes
Recording Technique: Index database based
License Type: Perpetual
User-defined trigger events
Metadata
QVR Pro Client (Desktop): Windows, macOS, and QNAP HybridDesk Station
QVR Pro Client (Mobile): Android and iOS
Recording camera streams: H.264
Free built-in camera channels: 8
Yes
Recording Technique: Standard MP4 file based
License Type: Subscription-based
User-defined trigger events
QVR Pro Client (Desktop): Windows, macOS, and QNAP HybridDesk Station
QVR Pro Client (Mobile): Android and iOS
Recording camera streams: H.264
Free built-in camera channels: 2
Expandable camera channels: Developing (QuTS hero h5.2.6 only)
QTS 5.2.6:
Yes
Dynamic View Layout
Windows
Mac
HybridDesktop
iOS
Android
Yes
Log management
Central monitoring across multiple servers
QTS 5.2.6:
Yes
Failover design
Viewing task details
Automatic switch between Standby and Takeover modes
QTS 5.2.6: Yes
QTS 5.2.6: Yes
885022024490

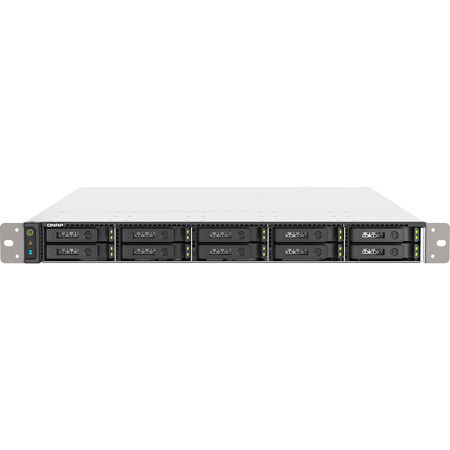

The TS-h1090FU high-density NVMe all-flash storage is designed for providing extreme performance with high cost-efficiency. Featuring ten U.2 NVMe Gen 4x4 SSD bays, the TS-h1090FU delivers remarkable random read/write IOPS with ultra-low latency. The ZFS-based QuTS hero operating system supports inline data deduplication and compression for reducing I/O and SSD storage consumption, which significantly extends SSD lifespan with a higher price-performance ratio for all-flash storage arrays.
Ideal for I/O-intensive and latency-sensitive applications, the TS-h1090FU eliminates productivity bottlenecks in virtualization, modern data centers, multimedia storage, and mission-critical backup/restore tasks - suitable for Tier 2 storage workloads with an ideal low cost-per-GB.
Build high-performance storage infrastructure for IOPS-demanding applications
Virtualization
Eliminates storage bottlenecks for unstructured data and I/O intensive workloads; ideal for server virtualization and virtual desktop infrastructure (VDI).
Data Centers
Delivers ultra-low latency and high IOPS performance, providing response times within microseconds for data centers that host significant business-critical systems and data.
Media and Entertainment (M&E) production
Satisfies smooth 4K/8K media streaming and post-production, empowering multimedia workflows with faster data transfer, access, and backup for boosted efficiency.
Powerful, reliable, and multitasking with up to 1TB DDR4 ECC memory
The TS-h1090FU is armed with 2nd Gen AMD EPYC 7002 series processors (Rome), based on the "Zen 2" architecture with cutting-edge 7nm process technology. With DDR4 ECC memory that detects and corrects single-bit memory errors for higher reliability, the TS-h1090FU provides 12 Long-DIMM slots for up to 1TB memory to fulfill memory-intensive workloads. Demonstrating immense computing power and multi-tasking capabilities, the TS-h1090FU is the ideal choice for uncompromising performance demands in HPC, virtualization, and 4K/8K multimedia applications.
U.2 NVMe PCIe Gen 4x4 - faster speed, optimal I/O, and lower latency
The 1U rackmount TS-h1090FU has 10 drive bays that support high-performance U.2 NVMe PCIe Gen 4 x4 SSDs or economical SATA 6Gb/s SSDs. Latency-sensitive applications can be bolstered with U.2 NVMe PCIe SSDs to attain optimized performance and utmost application response times. Coupled with powerful ZFS data deduplication and SSD optimization technologies, the TS-h1090FU provides solid foundations for overcoming performance demands while also maximizing your SSD investments!
Supports larger capacity U.2 SSD
The single capacity of U.2 NVMe SSDs has increased from 7.68TB to up to 61.44TB, allowing the TS-h1090FU all-flash NAS to provide over 600TB of raw capacity when fully populated. It supports workload-demanding applications such as enterprise data centers, AI/machine learning, edge storage, and virtual machines with ease.
Leverage the M.2 PCIe NVMe SSD to U.2 Adapter
Install one or more QDA adapters in the TS-h1090FU to maximize PCIe bandwidth utilization in a cost-effective way by using M.2 PCIe NVMe SSD instead of the U.2 SSD for optimizing data-intensive applications. It can also boost IOPS performance when configuring SSD caching. Users can monitor drive health and manage SSD usage from the QTS Storage & Snapshots Manager. The M.2 SSD installed in the QDA adapter is hot swappable.
Dual 25GbE connectivity multiplies all-flash superior performance
The NVMe-ready TS-h1090FU provides breakthrough network connectivity with two 25GbE SFP28 SmartNIC ports (compatible with 10GbE SFP+ / 1GbE SFP) that also support iSCSI Extensions for RDMA (iSER) to increase performance of data transfer between NAS and VMware ESXi server and offload CPU workloads.
With Port Trunking and Auto-Negotiation, the TS-h1090FU empowers your organization with the bandwidth and reliability to allow thousands of endpoint users to smoothly access data stored on the NAS while satisfying the most performance-demanding applications. The TS-h1090FU is also ideally matched with QNAP's managed and unmanaged 2.5GbE/10GbE/25GbE switches to form high-speed, secure, and scalable network environments without going over budget.
Multiple PCIe Gen 4 slots for flexible expansion
The TS-h1090FU is equipped with two PCIe Gen 4 slots. With twice the I/O performance of PCIe Gen 3, the TS-h1090FU can take advantage of PCIe cards to expand application potential.
10/25/40/100GbE network cards
Enable lightning-fast throughput for bandwidth-hungry tasks (such as virtualization, massive data transmission, and fast backup/restoration).
QM2 cards
Add M.2 SSD caching or 2.5GbE/10GbE connectivity for optimized performance or bandwidth.
SATA storage expansion cards
Designed for connecting the TS-h1090FU to SATA 6Gb/s TL expansion units to satisfy the ever-growing storage needs.
Robust hardware paralleled to boost all-flash NVMe performance
TS-h1090FU features high-level hardware with an expandable architecture to provide businesses with high performance and low latency access.
ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
Data integrity is key
QuTS hero's self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.
Data reduction improves storage efficiency and performance
Inline data deduplication, compression, and compaction reduce file sizes to conserve storage capacity and optimize performance.
Multi-level cache technology
Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power failure protection are supported to boost performance and security.
RAID Z enables robust data protection
Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection.
QSAL (QNAP SSD Antiwear Leveling) enhances data protection
RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.
App Center ecosystem extends NAS functionality
Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the NAS.
Inline data deduplication, compression, and compaction improve SSD endurance
QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%.
Whether acting as primary or backup storage, the TS-h1090FU optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era. All-flash solutions thus achieve higher cost efficiency while improving both random write performance and SSD lifespan.
More SSD performance and lifespan optimization technologies
Write Coalescing
Transforms all random writes to sequential writes along with reduced I/O, effectively increasing write performance in all-flash environments.
Pool Over-provisioning
Dedicated space can be flexibly reserved in an SSD storage pool to allow new data to be written into a complete block even if the pool is almost full, thus improving the performance of fragmented pools.
TRIM
Allows QuTS hero to inform SSDs to delete unneeded data blocks and process the deletion tasks during system idle times, meaning it does not have to wait for when new data is written to the block.
Comprehensive backup and disaster recovery solution
The TS-h1090FU supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.
Remote backup for NAS
Hybrid Backup Sync makes it easy to back up data from a TS-h1090FU to another QNAP NAS or remote server to fulfill your 3-2-1 backup strategy.
VM backup
Enjoy license-free VMware and Hyper-V VM backup with source-side incremental backup, global deduplication, and recovery compression.
SaaS backup
Safeguard enterprise cloud data by backing up/syncing files, emails, calendars, and contacts from Google Workspace and Microsoft Office 365 to the NAS.
Cloud backup for NAS
Use Hybrid Backup Sync to back up NAS data to myQNAPcloud Storage or other mainstream cloud space. For backup to object cloud storage, VJBOD Cloud is especially useful to reduce bandwidth usage and backup time.
QuDedup technology
Hybrid Backup Sync eliminates redundant data at the source and then backs up the deduplicated data, helping to save time and storage costs while providing efficient multi-version backups.
