About QNAP TS-h3088XU-RP
Modernize your IT using the ZFS-based, 25GbE-ready all-flash storage with high performance, high capacity, and low latency

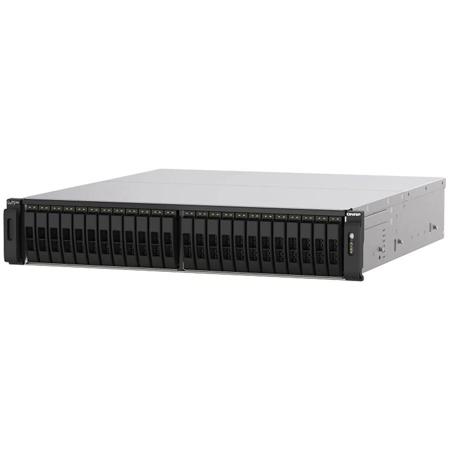

The 2U rackmount TS-h3088XU-RP provides a cost-efficient all-flash storage solution for tackling I/O-intensive and latency-sensitive enterprise applications. With 30 drive bays for 2.5-inch SATA 6Gb/s SSDs, built-in dual-port 25GbE SFP28 SmartNIC, four 2.5GbE LAN ports, PCIe expandability, and up to petabyte-scale storage capacity, the TS-h3088XU-RP satisfies uncompromising performance demands in virtualization, modern data centers, hybrid/multi-cloud applications, mission-critical backup/restore tasks, and file servers that allow thousands of simultaneous connections.
The QuTS hero operating system features ZFS data reduction and SSD optimization technologies to get the utmost performance, lifespan, and efficiency from your SSD investments!
Optimal SSD performance
Inline data deduplication and compression, Pool Over-provisioning, and TRIM maximize SSD performance and lifespan.
2x 25GbE SFP28 ports
Dual 25GbE SFP28 and quad 2.5GbE RJ45 high-speed connectivity accelerate virtualization, intensive file access, media file transfer, and large backup/restoration tasks.
3x PCIe Gen 3 slots
PCIe Gen 3 slots allow for installing 5/10/25/40GbE adapters, QM2 cards, or Fiber Channel cards to increase application performance.
Virtualization applications
Supports virtualization storage and hosting virtual machines and containerized apps.
Cloud storage gateway
Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud.
Petabyte-scale storage
Scalable design to grow with your business by connecting up to sixteen SAS 12Gb/s TL-1620Sep-RP expansion enclosures to attain petabyte-scale storage capacity of 286 disk drives.
Build high-performance storage infrastructure for IOPS-demanding applications
Virtualization
Eliminates storage bottlenecks for unstructured data and I/O intensive workloads; ideal for server virtualization and virtual desktop infrastructure (VDI).
Data Centers
Delivers ultra-low latency and high IOPS performance, providing response times within microseconds for data centers that host significant business-critical systems and data.
Media and Entertainment (M&E) production
Satisfies smooth 4K/8K media streaming and post-production, empowering multimedia workflows with faster data transfer, access, and backup for boosted efficiency.
High-capacity 30-bay SATA all-flash array that meets your business budget
With a large storage capacity and high I/O performance, the TS-h3088XU-RP provides a flexible yet economical SATA all-flash storage solution. It is perfect for budget-conscious businesses who seek an affordable all-flash storage architecture to run multiple business-critical and performance-demanding applications.
Powerful Intel Xeon W processors supporting up to 128 GB DDR4 ECC memory
Featuring Intel Xeon W-1200 series processors, the TS-h3088XU-RP provides options of 6-core and 8-core models with frequency performance of up to 5.0 GHz and enormous processing power to drive virtual machine performance. The integrated Intel AES-NI encryption engine helps maintain the security of NAS data without impacting performance. With dual-channel modules and 4 Long-DIMM slots, the TS-h3088XU-RP's DDR4 ECC memory can be upgraded up to 128 GB for memory-intensive and complex multitasking workloads.
Extreme all-flash performance
To get the utmost performance from the TS-h3088XU-RP, we recommend:
The front 24 SSDs should be configured as data pool #2 in RAID 6 or RAID 60 (yields the best performance). The rear 6 SSDs should be configured as pool #1 in RAID 6 (as system and app pool/small data storage).
Virtualization Certifications Supported by TS-h3088XU-RP
Dual 25GbE connectivity optimizes data transfer and VMware virtualization with iSER
The TS-h3088XU-RP provides four 2.5GbE RJ45 ports (supports 2.5/1GbE) and has a built-in dual-port 25GbE SFP28 SmartNIC (supports 25/10/1GbE) with the NVIDIA Mellanox ConnectX-4 Lx SmartNIC controller that supports iSCSI Extensions for RDMA (iSER) to increase performance of data transfer between NAS and ESXi server and offload CPU workloads.
With Port Trunking and Auto-Negotiation, the TS-h3088XU-RP empowers your organization with the bandwidth and reliability to allow thousands of endpoint users to smoothly access data stored on the NAS and also satisfy the most demanding applications, including data centers, virtualization, massive file transfer, high-speed backup/restoration, and multimedia transmission.
The TS-h3088XU-RP is also ideally matched with QNAP's managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure and scalable network environments without going over budget.
Abundant I/O capability with PCIe expansion
The TS-h3088XU-RP features three PCIe Gen 3 slots that enable using numerous expansion cards for expanding application potential. (One slot comes pre-installed with a dual-port 25GbE network card.)
5/10/25/40GbE network cards
Enable lightning-fast throughput for bandwidth-hungry tasks (such as virtualization, massive data transmission, and fast backup/restoration).
QM2 M.2 SSD/10GbE cards
Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity for optimized performance and bandwidth.
SAS/SATA storage expansion cards
Designed for connecting the TS-h3088XU-RP to SAS 12Gb/s or SATA 6Gb/s expansion units for petabyte-scale storage capacity.
Direct 4K HDMI output for multimedia and virtual machine content
The TS-h3088XU-RP features Intel UHD Graphics P630 that supports hardware decoding and real-time transcoding. The HDMI output supports up to 4K (4096 x 2160p) @30Hz, providing great benefits for applications like video production/editing or industrial design that demands high resolution and color realism as well as intensive media storage, transfer and display. By connecting the TS-h3088XU-RP to an HDMI display, you can directly watch multimedia content saved on the NAS, virtual machine OS desktop from Virtualization Station, or Ubuntu Linux Station desktop for system maintenance.
Exceptional hardware to boost all-flash performance
The TS-h3088XU-RP features high-level hardware with an expandable architecture to provide businesses with high performance and low latency access.
ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
Data integrity is key
QuTS hero's self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.
Data reduction improves storage efficiency and performance
Inline data deduplication, compression, and compaction reduce file size to conserve storage capacity and optimize performance.
Multi-level cache technology
Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power fail protection are simultaneously supported to boost performance and security.
RAID Z enables robust data protection
Multiple RAID levels allow flexible capacity utilization. RAID Triple Parity and Triple Mirror deliver higher levels of data protection.
QSAL (QNAP SSD Antiwear Leveling) enhances data protection
RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.
App Center ecosystem extends NAS functionality
Apps for backup/sync, virtual machines/containers, content management, productivity, and more features can be used to expand the application potential of the TS-h3088XU-RP.
Inline data deduplication, compression, and compaction improve SSD endurance
QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%. Whether acting as primary or backup storage, the TS-h3088XU-RP optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era. All-flash solutions thus achieve higher cost efficiency while improving both random write performance and SSD lifespan.
More SSD performance and lifespan optimization technologies
Write Coalescing
Transforms all random writes to sequential writes along with reduced I/O, effectively increasing write performance in all-flash environments.
Pool Over-provisioning
Dedicated space can be flexibly reserved in an SSD storage pool to allow new data to be written into a complete block even if the pool is almost full, thus improving the performance of fragmented pools.
TRIM
Allows QuTS hero to inform SSDs to delete unneeded data blocks and process the deletion tasks during system idle times, meaning it does not have to wait for when new data is written to the block.
QNAP TS-h3088XU-RP Features
- Inline data deduplication and compression, Pool Over-provisioning, and TRIM maximize SSD performance and lifespan
- Dual 25GbE SFP28 and quad 2.5GbE RJ45 high-speed connectivity accelerate virtualization, intensive file access, media file transfer, and large backup/restoration tasks
- PCIe Gen 3 slots allow for installing 5/10/25/40GbE adapters, QM2 cards, or Fiber Channel cards to increase application performance
- Supports virtualization storage and hosting virtual machines and containerized apps
- Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud
- Scalable design to grow with your business by connecting up to sixteen SAS 12Gb/s TL-1620Sep-RP expansion enclosures to attain petabyte-scale storage capacity of 286 disk drives
