Review Summary
AMD Ryzen 7 7000 series 8-core/16-thread processor, burst up to 5.3GHz
64-bit x86
AMD Radeon Graphics
Yes
Yes (AES-NI)
Yes
64GB UDIMM DDR5 (2x 32GB)
192GB (4 x 48GB)
4x UDIMM DDR5
Support optional ECC memory
5GB (Dual boot OS protection)
30 x 2.5" SATA 6Gb/s, 3Gb/s
2.5" SATA solid state drives
Yes
Yes
Yes
2 (2.5G/1G/100M/10M)
2x 10GBASE-T (10G/5G/2.5G/1G/100M)
Yes
Yes
3
Slot 1: Gen 4 x 4
Slot 2: Gen 4 x 8 or Gen 4 x 4
Slot 3: Gen4 x 4
2 x Type-A USB 3.2 Gen 2 10Gbps
2U Rackmount
Power Status, SSD 1-30, Status, LAN, storage expansion port status
Power, Reset
32 Degree F - 104 Degree F (0 Degree - 40 Degree C)
-4 Degree F - 158 Degree F (-20 Degree - 70 Degree C)
5-95% RH non-condensing, wet bulb: 80.6 Degree F (27 Degree C)
2x 550W, 100-240V
380.23 W (Operating Mode, Typical)
System fan: 3x 60mm, 12VDC
Buzzer
5000 with Max. Memory
Taiwan
3.48 x 17.43 x 19.11" (88.3 x 442.6 x 485.2mm)
28.06 lbs (12.73kg)
QTS 5.2.6
QuTS hero h5.2.6
Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022, and 2025
Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)
Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
Yes
Yes
QTS 5.2.6: 308TB
QuTS hero h5.2.6: 5PB
128
QTS 5.2.6: Thick, Thin, Static
QuTS hero h5.2.6: Thick, Thin
QTS 5.2.6: 250TB
QTS 5.2.6: 128
QTS 5.2.6: 250TB
QuTS hero h5.2.6: 5PB
QTS 5.2.6: 512
QuTS hero h5.2.6: 256
Yes
Yes
Yes
Yes
Thick, Thin
QTS 5.2.6: Yes
Yes
QTS 5.2.6: 250TB
QuTS hero h5.2.6: 1024TB
QTS 5.2.6: 128
QuTS hero h5.2.6: 256
QTS 5.2.6:
LUN Mapping (LUN can be moved between iSCSI and FC)
LUN Masking
WWPN Aliases Import/Export
FC Port Group
FC Port Binding
Multipath IO (MPIO)
Online LUN capacity expansion
LUN snapshot
LUN snapshot replication and clone
QTS 5.2.6: Yes
QTS 5.2.6: 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
2-bay: JBOD, Single, RAID 0, 1
QuTS hero h5.2.6: 8-bay (and more): Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity
6-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, Triple Mirror, Triple Parity
4-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, Triple Mirror, Triple Parity
3-bay: Single, RAID 0 (Stripe), 1, 5, Triple Mirror, Triple Parity
2-bay: Single, RAID 0 (Stripe), 1
Yes
Yes (by replacing bigger Disks)
QTS 5.2.6: Yes
QTS 5.2.6: Yes
Yes (by adding RAID Group)
Global, Local
Yes
QuTS hero h5.2.6: Yes
QuTS hero h5.2.6: Yes
QTS 5.2.6: EXT4
QuTS hero h5.2.6: ZFS
EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
QTS 5.2.6: 5 minutes
QuTS hero h5.2.6: 1 minute
Yes
Yes
Yes
Yes
QuTS hero h5.2.6: Yes
Yes
Yes
Yes
QTS 5.2.6: Yes
QuTS hero h5.2.6: Yes
QTS 5.2.6: 0, 1, 5, 6, 10
QuTS hero h5.2.6: 0, 1, 10 (journal)
QTS 5.2.6: Yes
Yes
Yes
Yes, (QNAP so on) Management
Yes, (QNAP so on) Management
File sharing across Windows, Mac, and Linux/UNIX
Microsoft networking (CIFS/SMB)
Apple networking (AFP)
NFS version 2/3/4/4.1 services
QuFTP (QTS 5.2.6 only)
FTP, SFTP and TFTP protocols
FTP over SSL/TLS (explicit FTPS)
FXP support
1024
QuTS hero h5.2.6: Yes
QuTS hero h5.2.6: Yes
QuTS hero h5.2.6: Yes
Yes
Yes
QTS 5.2.6: 4,096
QuTS hero h5.2.6: 16,000
512
200000
Yes
Yes
Yes
QTS 5.2.6: Yes, (AFP, CIFS/SMB, FTP, and File Station)
QTS 5.2.6: Yes, (CIFS/SMB)
Yes
Yes
Yes, QTS 5.2.6: Snapshot shared folder
Yes
Yes
V2, V3
Recover files deleted using AFP, CIFS/SMB, and File Station
Automatic cleanup and file type filter
Log recording: 3,000 event per second
Yes
Yes
IPv4, IPv6
Yes
Yes, (7 modes)
Yes
Yes
Yes
SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP (with auto-blocking)
Yes
Yes
Yes (validated by FIPS 140-2 CAVP)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
TLS 1.0/1.1/1.2/1.3
Yes
32
Yes
Management Mode: User customization, Central
Qsync client supported platforms: Windows, macOS, Ubuntu, Android, and iOS
Maximum number of version control: 64
Yes
File Cloud Gateway
QTS 5.2.6: Concurrent Connections = 20 Upload & 20 Download
QuTS hero h5.2.6: Concurrent Connections = 80 Upload & 80 Download
Network Drive Mount: Yes
Free cloud gateway sessions: 2
Yes
NAS to NAS backup
Cloud Backup
Cloud Sync
2-way and Active Sync
Backup Deduplication
Apple Time Machine Backup
External drive backup
Maximum number of backup job: 400
Yes
Yes
Office 365 Backup
Google Workspace Backup
Full-text search
Yes
Previews: Photos, music, videos, PDFs, Gmail, and others
Integrate Mac Finder
Advanced picture search
Search filters
Yes
Browse photos
Virtual and smart albums
AI-assisted photo management: People, things, places, and others
Yes
Yes
Yes
Remote Access: PPTP, L2TP/IPSec, OpenVPN, WireGuard (QTS 5.2.6 Only), QBelt (QNAP proprietary)
Supported utility and mobile app: Windows, macOS, iOS, and Android
Supported maximum clients: 100
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Supports Virtual machine instances: Windows, Linux, Unix, and Android
VM importing, exporting, cloning, snapshot capturing, backup, and restoration
Virtual switches: Can create a virtual switch
QTS 5.2.6: GPU pass-through: Not support GPU
QuTS hero h5.2.6: GPU function is fine
Suggested number of virtual machine instances: 16
Yes
Supported type: LXC/LXD and Docker
Docker Hub Registry
Container importing and exporting
Console mode
Yes
Supports Ubuntu versions: 16.04 (QTS 5.2.6 only), 18.04, and 20.04
Yes
QTS 5.2.6: Yes
Recording Technique: Index database based
License Type: Perpetual
User-defined trigger events
Metadata
QVR Pro Client (Desktop): Windows, macOS, and QNAP HybridDesk Station
QVR Pro Client (Mobile): Android and iOS
Recording camera streams: H.264
Free built-in camera channels: 8
Yes
Recording Technique: Standard MP4 file based
License Type: Subscription-based
User-defined trigger events
QVR Pro Client (Desktop): Windows, macOS, and QNAP HybridDesk Station
QVR Pro Client (Mobile): Android and iOS
Recording camera streams: H.264
Free built-in camera channels: 2
QuTS hero h5.2.6: Expandable camera channels: Developing
QTS 5.2.6: Yes
Dynamic View Layout
Windows
Mac
HybridDesktop
iOS
Android
Yes
Log management
Central monitoring across multiple servers
QTS 5.2.6: Yes
Failover design
Viewing task details
Automatic switch between Standby and Takeover modes
QTS 5.2.6: Yes
QTS 5.2.6: Yes
885022027040

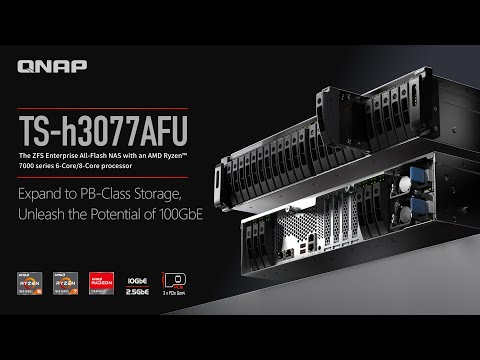

Highly reliable ZFS-based all-flash NAS with AMD Ryzen 7000 series processor - boosting all-round business with petabyte-scale storage and 100 GbE potential.
Gain a competitive advantage by deploying an AMD Ryzen 7000 series-powered SATA SSD all-flash storage with 30 drive bays. The TS-h3077AFU is ideal for media production companies, enterprises, and science research institutions that require high-performance large capacity storage for storing recordings, business assets, Big Data, and virtual machines.

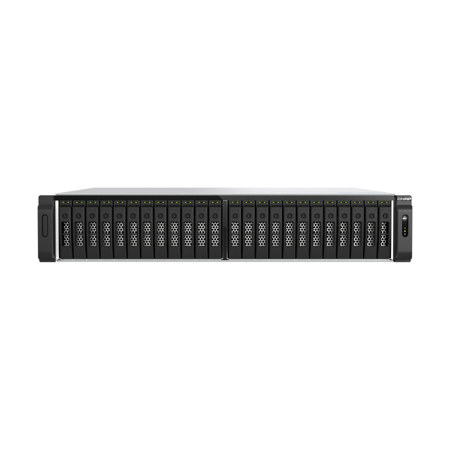

High-density SATA all-flash array architecture
The TS-h3077AFU offers an affordable all-flash storage solution, combining ample storage capacity and robust I/O performance. It caters to budget-conscious businesses, providing all-flash storage infrastructure capable of efficiently handling a range of demanding, business-critical applications.
Powered by AMD Ryzen 7000 series processors
The TS-h3077AFU is armed with enterprise-class AMD Ryzen 7000 series processors. The first gen of CPUs on the new AMD Socket AM5 platform provides greater performance and power efficiency compared to similar-grade processors.
AMD Radeon Graphics
Integrated AMD Radeon Graphics on the TS-h3077AFU provides energy-efficient high-quality graphics performance, enabling processing high-resolution videos, photos, and simultaneously running multiple tasks.
DDR5 RAM
DDR5 RAM comes as standard on the TS-h3077AFU to accommodate the increased performance of CPUs. Up to 192 GB can be installed to tackle memory-intensive and complex multitasking workloads, and ECC memory is also supported (sold separately).
Designed for media production and enterprises
Expandability is a concept for the TS-h3077AFU. Let's see how the all-flash TS-h3077AFU supercharges your organization in 4K/8K video workflows, storage centers, and virtualization applications.
Flexibly add petabyte-scale storage capacity
Use a TS-h3077AFU paired with multiple QNAP TL PCIe interface SATA JBOD expansion enclosures to achieve both breakthrough performance and massive capacity. The TS-h3077AFU supports up to eight 24-bay TL-R2400PES-RP JBOD enclosures, providing a storage capacity of 192 drives.
Upgrade up to 100 Gbps
The TS-h3077AFU empowers your organization with the bandwidth to tackle the most demanding applications, including storage centers, virtualization, massive file transfer, high-speed backup/restoration, and multimedia transmission. Utilizing Port Trunking (Link Aggregation) ensures network redundancy to improve fault tolerance.
Streamline post-production workflows
Store your projects on the super-fast TS-h3077AFU. NAS folders can be mounted on Windows or Mac via 25/10 GbE, allowing teams to save time and effort.
Backup business-critical data
The all-flash TS-h3077AFU delivers low latency and high IOPS performance. The ZFS-based QuTS hero operating system ensures data integrity and reliability while supporting multiple backup solutions.
Virtualization
With ultra-fast DDR5 memory which is optimized for large data processing, the TS-h3077AFU is ideal for server virtualization and virtual desktop infrastructure (VDI) usage.
Long-term and stable supply available
The TS-h3077AFU will be available until 2030. This long-term availability makes the TS-h3077AFU an ideal choice for organizations requiring matching NAS models for long-term projects.
Double your protection with hybrid cloud: Backup to myQNAPcloud Storage and access anytime
Back up your TS-h3077AFU to myQNAPcloud Storage using Hybrid Backup Sync for secure, efficient data management-without any additional bandwidth fees.
The TS-h3077AFU also supports 20+ major public clouds, ensuring near-LAN access speeds for seamless cloud sharing and multi-point synchronization.
Future-proof PCIe Gen 4 slots
The TS-h3077AFU has three PCIe Gen 4 slots for you to add additional functionality (such as 100 GbE connectivity) to meet growing workload and business requirements.
100/25 GbE network card
Enable lightning-fast throughput for bandwidth-demanding tasks such as 4K/8K production or virtualization.
QM2 cards
Adds M.2 SSD or extra 10/2.5 GbE connectivity to the NAS for optimized performance and bandwidth.
Graphics cards
Supercharge your video editing and transcoding or enable GPU passthrough to virtual machines.
Robust hardware to boost SSD performance
The TS-h3077AFU's high-level hardware with an expandable architecture is designed to maximize SSD performance.
ZFS-based QuTS hero operating system enhances NAS performance and data integrity
QuTS hero combines the app-based QTS with the 128-bit ZFS file system to provide flexible storage management, comprehensive data protection, and optimized performance to tackle the complexity and performance demands of modern IT. From storage management, virtualization, to collaborative media workflows, QuTS hero streamlines your business-critical tasks.
Data integrity is key
QuTS hero's self-healing ensures data integrity and reliability. Write Once, Read Many (WORM) is also supported.
Data reduction improves storage efficiency and performance
Inline data deduplication, compression, and compaction reduce file sizes to conserve storage capacity and optimize performance.
Multi-level cache technology
Main memory read cache (L1 ARC), SSD second-level read cache (L2 ARC), and ZFS Intent Log (ZIL) for synchronous transactions with power failure protection are supported to boost performance and security.
QSAL (QNAP SSD Antiwear Leveling) enhances data protection
RAID-level SSD lifespan is automatically and regularly detected to prevent simultaneous SSD failure, improving your data protection and system reliability.
Inline data deduplication, compression, and compaction improve SSD endurance
QuTS hero supports advanced block-based data reduction technologies (including inline data deduplication, compression, and compaction) to reduce file sizes, conserve storage capacity, and optimize performance. For example, if 20 virtual machines on a NAS are replicated using the same template, then storage space requirements for all 20 virtual machines can be reduced by up to 95%.
Whether acting as primary or backup storage, the TS-h3077AFU optimizes storage utilization to provide a reliable storage cornerstone in the Big Data era. All-flash solutions thus achieve higher cost efficiency while improving both random write performance and SSD lifespan.
Additional technologies for optimizing SSD performance and lifespan
Write Coalescing
Transforms all random writes to sequential writes along with reduced I/O, effectively increasing write performance in all-flash environments.
Pool Over-provisioning
Dedicated space can be flexibly reserved in an SSD storage pool to allow new data to be written into a complete block even if the pool is almost full, thus improving the performance of fragmented pools.
TRIM
Informs SSDs to delete unneeded data blocks and processes deletion tasks during system idle times, meaning it does not have to wait for when new data is written to the block.
Real-time SnapSync ensures minimal RPO with real-time disaster recovery
Real-time SnapSync ensures that both the primary and secondary NAS maintain identical data. When data is written to the source, it is immediately written to the destination. If the primary NAS goes offline, IT staff can simply adjust the privilege settings of the secondary NAS to ensure continuous operations. SnapSync provides the strongest support for nonstop business operations and helps users to reduce the risk of data loss.
The TS-h3077AFU also supports snapshots and remote backup to help organizations accomplish routine backup tasks cost-effectively and efficiently.
Snapshots multiply backup protection
Attain peace of mind with near-limitless, instant snapshots. Copy-on-write technology makes snapshot creation almost instantaneous without affecting ongoing data writing. Snapshot Replica replicates snapshot files to the backup NAS, simplifying data protection with version control.
HBS simplifies 3-2-1 backup plans
HBS centralizes backup, restoration, and synchronization for easily transferring data in the TS-h3077AFU to another QNAP NAS, remote server, or cloud storage space. HBS supports QuDedup technology that eliminates redundant data at the source and makes multi-version backup faster.
High availability (HA) and failover with dual-NAS architecture
Create a HA cluster with two TS-h3077AFU - one as the active server, and the other as the passive server. If an unexpected failure or issue with the active server occurs, the passive server provides immediate protection with automatic failover. This ensures continuous storage service and system availability.
Easy management and monitoring
Use the High Availability Manager app to easily configure, remove, or rebuild clusters.
Guaranteed data consistency
Real-time data sync between active and passive servers minimizes the risk of data loss (RPO).
Ensured continuity of critical business
The passive server takes over within 1 minute if the active server fails (RTO < 60 secs).
License-free VMware and Hyper-V backup appliance
With Hyper Data Protector, the TS-h3077AFU becomes an agentless backup tool for VMware vSphere and Microsoft Hyper-V VM backup. Hyper Data Protector features incremental backup, global deduplication, backup scheduling and recovery compression.
909-595-2782
