Intel Atom x6425E 4-core/4-thread processor, burst up to 3.0 GHz
64-bit x86
Intel UHD Graphics for 10th Gen Intel Processors
Yes
Yes (AES-NI)
Yes
8 GB on board (non-expandable)
8 GB on board (non-expandable)
4GB (Dual boot OS protection)
4x 2.5" SATA 6Gb/s, 3Gb/s
2.5" SATA solid state drives
Yes
Yes
2x 10GBASE-T (10G/5G/2.5G/1G)
Yes
Yes
4
1, HDMI 1.4b (up to 3840 x 2160 @ 30Hz)
Tower
Power/Status, LAN, SSD 1-4
Power, Reset
-40 Degree F - 158 Degree F (-40 - 70 Degree C)
-49 Degree F - 185 Degree F (-45 - 85 Degree C)
5-95% RH non-condensing, wet bulb: 80.6 Degree F (27 Degree C)
External Power Adapter, 90W and above, AC 100-240V
9-36V DC input
Buzzer
Yes
1500 (Max. Memory)
2.56 x 7.09 x 10" (6.50 x 18 x 25.4cm)
5.6 lbs (2.54kg)
QTS 5.0.0
Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11
Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, and 2019
Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version)
Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish
Yes
Yes
308 TB
128
Thick, Thin, Static
250 TB
128
250 TB
512
Yes
Yes
Yes
Yes
Thick, Thin
Yes
Yes
250 TB
256
LUN Mapping (LUN can be moved between iSCSI and FC)
LUN Masking
WWPN Aliases Import/Export
FC Port Group
FC Port Binding
Multipath IO (MPIO)
Online LUN capacity expansion
LUN snapshot
LUN snapshot replication and clone
Yes
4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
Yes
Yes
By Adding Disk: Yes
by Replacing bigger Disks: Yes
Yes (by adding RAID Group)
Global, Local
Yes
Internal: EXT4
External: EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
5 minutes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
0, 1, 5, 6, 10
Yes
Yes
Yes
External Device Mode: Yes
NAS Mode: Yes
File sharing across Windows, Mac, and Linux/UNIX
Microsoft networking (CIFS/SMB)
Apple networking (AFP)
NFS version 3/4 services
QuFTP
FTP, SFTP and TFTP protocols
FTP over SSL/TLS (explicit FTPS)
FXP support
1024
Yes
Yes
4096
512
200000
Yes
Yes
Yes
Yes (AFP, CIFS/SMB, FTP, and File Station)
Yes (CIFS/SMB)
Yes
Yes
Yes (Snapshot shared folder)
Yes
Yes
V2, V3
Recover files deleted using AFP, CIFS/SMB, and File Station
Automatic cleanup and file type filter
Log recording: 3,000 event per second
Yes
Yes
IPv4, IPv6
Yes
Yes (7 Modes)
Yes
Yes
Yes
SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP (with auto-blocking)
Yes
Yes
Yes (by FIPS 140-2 CAVP)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
TLS 1.0/1.1/1.2/1.3
Yes
32
Yes
Management Mode: User customization, Central
Qsync Client Supported Platforms: Windows, macOS, Ubuntu, Android, and iOS
Max Number of Version Control: 64
Yes
File Cloud Gateway: Concurrent Connections = 20 Upload & 20 Download
Network Drive Mount: Yes
Free Cloud Gateway Session: 2
Yes
NAS to NAS backup: Yes
Cloud Backup: Yes
Cloud Sync: Yes
2-Way and Active Sync: Yes
Backup Deduplication: Yes
Apple Time Machine Backup: Yes
External Drive Backup: Yes
Maximum Number of Backup Job: 400
Boxafe
Yes
Office 365 Backup: Yes
Google Workspace Backup: Yes
Full-text search: Yes
Yes
Previews: Photos, music, videos, PDFs, Gmail, and others
Integrate Mac Finder: Yes
Advanced Picture Search: Yes
Search Filters: Yes
Yes
Browse photos: Yes
Virtual and Smart Albums: Yes
AI-assisted Photo Management: People, things, places, and others
Yes
Yes
Yes
Remote Access: PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt (QNAP proprietary)
Supported utility and mobile app: Windows, macOS, iOS, and Android
Supported maximum clients: 100
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Supports Virtual machine instances: Windows, Linux, Unix and Android
VM importing, exporting, cloning, snapshot capturing, backup, and restoration: All function is Fine
Virtual Switch: Can create a virtual switch
GPU pass-through: Not support
Suggested Number of Virtual Machine Instances: 4
Yes
Supported type: LXC/LXD and Docker
Docker Hub Registry: Yes
Container Importing and exporting: Yes
Console mode: Yes
Yes
18.04, and 20.04 (Linux Station)
Yes
Yes
Recording Technique: Index database based
License Type: Perpetual
User-Defined Trigger Events: Yes
Metadata: Yes
QVR Pro Client (Desktop): Windows, macOS, QNAP HybridDesk Station
QVR Pro Client (Mobile): Android, iOS
Recording Camera Streams: H.264
Free built-in camera channels: 8
Yes
Recording Technique: Standard MP4 file based
License Type: Subscription-Based
User-Defined Trigger Events: Yes
QVR Pro Client (Desktop): Windows, macOS, QNAP HybridDesk Station
QVR Pro Client (Mobile): Android and iOS
Recording camera streams: H.264
Free built-in camera channels: 2
Yes
Dynamic View Layout: Yes
Windows: Yes
Mac: Yes
HybridDesktop: Yes
iOS: Yes
Android: Yes
Yes
Log management: Yes
Central monitoring across multiple servers: Yes
Yes
Failover design: Yes
Viewing task details: Yes
Automatic switch between Standby and Takeover modes: Yes
Yes
Yes
Yes
885022023813

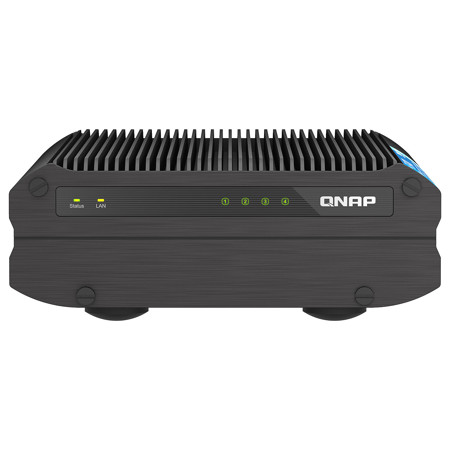

Where durability and reliability meet high-performance, the TS-i410X 4-Bay 10GbE Industrial NAS Enclosure stands out as a fanless, compact, and user-friendly solution for data storage and sharing. Engineered to thrive in the most demanding environments, this industrial-grade NAS enclosure is built with a robust chassis that can withstand extreme temperatures ranging from -40 to 70 Celsius (-40 Degree F to 158 Degree F), making it an ideal choice for factories, warehouses, and transportation settings where conditions are harsh.
The TS-i410X is not only resilient but also excels in connectivity and speed. Equipped with two 10GBASE-T/NBASE-T RJ45 ports, it significantly accelerates virtualization tasks, high-speed backup and recovery, file sharing, and video transmission. Its 4K HDMI output supports high-resolution playback and real-time transcoding, catering to the needs of video production and industrial design applications.
At the heart of the TS-i410X lies an Intel Atom x6425E quad-core processor, capable of reaching up to 3.0 GHz, paired with 8 GB of dual-channel memory. This powerful combination ensures smooth operation even under heavy workloads. The NAS also boasts hardware-accelerated AES-NI encryption, providing top-tier security for sensitive data without compromising performance.
Storage-wise, the TS-i410X offers four 2.5-inch SATA 6Gb/s SSD slots, with industrial SSDs recommended for optimal durability and performance. These slots are designed to enhance IOPS performance through SSD caching, meeting the rigorous demands of high-usage applications.
For those seeking a silent operation, the fanless design of the TS-i410X ensures a noise-free experience, perfect for noise-sensitive environments. Its 9V - 36V DC wide-range power supply adds to its versatility, accommodating various industrial and transportation applications.
The TS-i410X is not just a storage powerhouse but also a smart surveillance solution, offering 24/7 security with QVR Elite. It supports a scalable number of IP camera channels and provides easy management and playback of surveillance footage.
With QTS 5, the operating system that powers the TS-i410X, users are treated to a refined, smooth, and easy-to-navigate interface. This system enhances the overall user experience with its updated kernel, optimized UI, and advanced security features.
Comprehensive backup and disaster recovery options are readily available, with support for PC and laptop backup, remote NAS backup, VM backup, and cloud backup. The TS-i410X also features block-based snapshots, providing an effective defense against ransomware threats.
In summary, the TS-i410X 4-Bay 10GbE Industrial NAS Enclosure is a top-tier choice for professionals who require a durable, high-capacity, and silent data storage solution. Its fanless design, military-grade construction, and advanced features make it a standout choice for industrial applications where performance and reliability are paramount.
