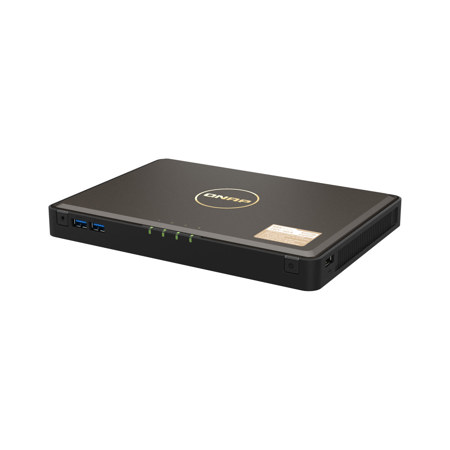

QNAP TBS-464 4-Bay All-Flash NASbook, Diskless

Say goodbye to your external hard drives, and hello NASbook. QNAP's portable, high-performance TBS-464 NASbook is specifically designed for mobile workers and remote content creators to easily store and share precious business data and content. Let TBS-464 bring you a brand-new business data collaboration experiences of high-speed file transmission, smart storage, and hybrid cloud.

The TBS-464 uses the QTS operating system by default. You will be able to switch to using the QuTS hero operating system. QuTS hero provides benefits such as ZFS data integrity and WORM technology to prevent data tampering. (Switching to QuTS hero is supported starting from QTS 5.2.1.)

2.5GbE connectivity
Dual-port 2.5GbE supports SMB Multichannel for up to 5 Gbps to speed up big file sharing!

Quad-core multitasking
Powered by an Intel Celeron N5105 quad-core processor, burst up to 2.9 GHz.

Thin, portable
The thin and B5-sized TBS-464 weighs just 740 g, while offering storage capacity up to four M.2 2280 NVMe SSDs.

4K HDMI output
Up to two HDMI 2.0 ports support 4K @60Hz output.

Record online meetings
Use the TBS-464 with QNAP KoiMeeter to build a high-quality wireless presentation and online video conferencing storage system.

Faster USB transfer
Two USB 3.2 Gen 1 (5Gbps) ports allow faster backup to/from USB devices.

B5 size that just fits!
Designed around QNAP's unique "NASbook" concept, the TBS-464 is a thin, B5-sized device that measures just 1.18 inches in height and weighs just 740 g. Have it within your office, carry it around, and take it into meetings to enable quick file sharing, collaboration, and presentations with team members. Compared with a conventional NAS, the TBS-464's usage of M.2 NVMe SSDs (sold separately) for storage allows it to be significantly smaller and quieter while at the same time providing ultra-high performance and mobility. The M.2 SSDs are also easily accessible for installation and maintenance by removing the bottom rubber pads and screws. Alongside laptops and mobile phones, the TBS-464 NASbook is an essential device for modern offices and workgroups.

Performance without compromise
The compact TBS-464 is powered by a 10 nm Intel Celeron N5105 quad-core processor with 8GB DDR4 memory. The integrated Intel AES-NI encryption engine also helps protect confidential data without impacting system performance.

CPU
Intel Celeron N5105 4-core/4-thread processor, burst up to 2.9 GHz

Connectivity
2 x 2.5GbE RJ45 ports (2.5G/1G/100M)

Sufficient storage capacity
Supporting four M.2 2280 NVMe SSDs, the TBS-464 can achieve up to 12 TB storage capacity by installing four 4 TB SSDs in RAID 5. Compared with external SSDs/hard drives, the TBS-464 secures your data with RAID protection. Need more storage space? Mount cloud storage services like Dropbox and Google Drive on the TBS-464 to enjoy more storage space.

Enable flexible team file-sharing for mobile workers
For remote workers and digital nomads, the TBS-464 is designed to light up the best of NAS applications.

File-sharing collaboration platform
Bring your TBS-464 NASbook to build a file-sharing collaboration platform with your team members. Create a public shared folder for team members to access and sync data to boost efficient team collaboration.

Wireless presentation
The TBS-464 can be used with QNAP Koimeeter to build a wireless presentation with real-time screen sharing. Meeting videos and messages can be recorded to the TBS-464 for future playback or archiving.

High-speed 2.5GbE file backup
Each port provides over twice the speed of conventional ethernet for extremely fast file transfer and backup.

USB One-Touch-Copy Backup
The TBS-464 has two USB 3.2 Gen 1 (5Gbps) ports. The One Touch Copy button also allows you to back up the contents of USB devices to the TBS-464 with a single button press.

Fast file search
Qsirch full-text search engine allows you to find files faster and smarter, even the texts in images can be recognized and captured.

Seamless large file sync for remote content creators
Get rid of your heavy DAS or external hard drives and embrace the high-performance software-integrated TBS-464 NASbook for content creation. Perfectly compatible with Mac /PC devices, Adobe and various kinds of multimedia production software, the TBS-464 can serve as a multimedia library for quickly accessing/syncing files up to 10G/20G, and easily be shared with various content creators worldwide.

Sync large files seamlessly
Configure TBS-464's four SSDs as high-speed storage pools and use SMB to directly mount NASbook's shared folders to Mac/PC for fast data access. Qsync allows all content revisions stored in the TBS-464 to be synchronized seamlessly with other content creators worldwide.

View your content creation in 4K UHD
With 4K HDMI output you can see every detail of your work on big monitors. By connecting a keyboard and mouse, you can use the TBS-464 as a PC.

Exceptional file transfer performance
A 10GB file can be transferred in 30 seconds with NASbook's two 2.5GbE ports.

USB One-Touch-Copy Backup
The TBS-464 has two USB 3.2 Gen 1 (5Gbps) ports. The One Touch Copy button also allows you to back up the contents of external drives to the TBS-464 with a single button press.

Fast image search
Qsirch allows you to find photos faster and smarter by using keywords, color, and metadata. TBS-464 incorporates Intel OpenVINO to accelerate QuMagie AI image recognition within minutes and realizing intelligent album classification.

Smoother mobile experience with GPU
With Intel UHD Graphics, the TBS-464 greatly speeds up converting videos to 1080p / 720p, allowing for smooth streaming to mobile devices over varying mobile network speeds.

Wireless presentation and record online meetings
The TBS-464 can be used with QNAP KoiMeeter to build a high-quality 4K video conferencing system. Presenters can easily share their screens wirelessly and remotely using their web browser. Important files can be shared using the built-in chat room and video calls and messages can be recorded to the TBS-464 for future playback or archiving.

Plex Media Server
By installing Plex Media Server from the QTS App Center, you can stream media files stored on the TBS-464 to mobiles and media streaming devices (including DLNA, Roku, Amazon Fire TV and Google Chromecast).

QTS 5. Fast, smooth, and easy-to-use!
The TBS-464 comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel and optimized user interface.

Brighter. Smoother. You'll like it
When navigating QTS 5, you will notice a finer attention to detail for a superior browsing experience. Enjoy a smoother NAS experience, comfortable visual design, and find your favorite apps quicker.

Get started with the notice board
When performing first-time installation, the notice board guides you through the setup process. Simply follow the step-by-step instructions for a quick and easy setup.

Smooth and reactive user interface
Whether clicking buttons, switching between apps, expanding/collapsing windows - every action is much smoother. The search bar in the main menu also assists in quickly finding desired apps.

Switch to QuTS hero operating system
For optimal data integrity and reliability. The TBS-464 also supports QuTS hero - QNAP's ZFS-based NAS operating system, providing end-to-end data integrity, WORM protection, data reduction (inline data deduplication, compression, and compaction), and much more.

Simple Backup and Snapshot protection
TBS-464 with personal backup and restore solution allows mobile workers to back up and sync large batches of files between laptops easily. Back up Windows files and systems using NetBak Replicator and NetBak PC Agent or back up macOS using Time Machine. Then create Snapshots for your NASbook regularly to protect your data. You can also back up data and Snapshots on NASbook to another remote NAS using Hybrid Backup Sync and restore your NASbook when needed.

The best file storage and collaboration center
The TBS-464 integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows, Mac, and Linux/UNIX, and provides the smartest NAS solution for professionally managing your files.

File Station
Manage, access, and share all the files in the TBS-464 and view snapshots files - all from your web browser. You can also easily mount remote NAS folders and cloud storage.

Qfiling
Automate your file organization - all you need to do is categorize files, set a schedule, and Qfiling will do the rest. Qfiling also enables smart recycling that instantly moves filtered files to the Recycle Bin.

Free exFAT support
exFAT is a file system that supports files up to 16EB and is optimized for flash storage (such as SD cards and USB devices) - helping accelerate large media file transfer and sharing.

More productivity-boosting applications
The TBS-464 provides an App Center that includes feature-rich apps to expand your NAS potential!

Notification Center
Consolidates all system events, alerts, and notifications for smooth and easy NAS management, keeping you always informed of your NAS status.
