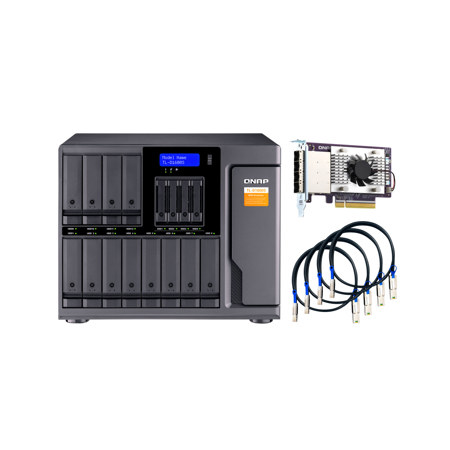

QNAP TL-D1600S JBOD 16-Bay NAS Enclosure Expansion Unit, Diskless

TL-D1600S JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows and Ubuntu computers and servers. The TL-D1600S features twelve 3.5-inch/2.5-inch SATA 6Gb/s drive bays and four 2.5-inch SATA 6Gb/s SSD bays and comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.

Lockable drive trays
Lockable hard drive trays prevent accidental drive removal.

High-speed connectivity
SFF-8088 (or SFF-8644) connection cable supports four SATA 6Gb/s channels per cable (24Gb/s in total) and provides faster data transfer speeds than eSATA and USB.

Flexible storage management
Easy to use. QNAP NAS and PC can both use utility software to monitor, obtain, and manage JBOD information.

High-performing TL SATA JBOD
The TL SATA JBOD supports multi-lane SATA 6Gb/s transfer, and each SATA lane directly connects to a single SATA drive to help improve performance. With the 1-1 high-speed channel, the TL SATA JBOD delivers excellent transfer performance.

Flexible Storage Configuration and Management
The TL-D1600S provides software-controlled storage configuration for greater management flexibility. You can configure RAID and monitor JBOD enclosure and disk health with Storage & Snapshots when connected to a QTS or QuTS hero NAS, or with the QNAP JBOD Manager utility when connected to a computer.

Use the Storage & Snapshots Manager in QTS or QuTS hero to configure the TL-D1600S as a storage enclosure for your QNAP NAS. The NAS expansion storage mode supports various NAS functions, including storage pools and snapshots. With TL-D1600S, you can easily expand storage capacity.

The QNAP JBOD Manager is a desktop utility for monitoring the TL-D1600S on Windows and Ubuntu computers. You can quickly obtain disk statuses, JBOD information and health, view fan rotation speed, and check for firmware version updates.

What you need to know
You can connect your TL-D1600S to Windows and Ubuntu computers through SFF-8088 (or SFF-8644) high-speed cable and use built-in utility to manage RAID configuration.

Intelligently Monitor JBOD Enclosure Status on PC and Servers with QNAP JBOD Manager
The QNAP JBOD Manager is a desktop utility for monitoring the TL-D1600S on Windows and Ubuntu computers. You can quickly obtain the disk statuses, JBOD information and health, view fan rotation speed, and check for firmware version updates. All device events are recorded, and will send desktop notifications when a system alert occurs.

Flexibly Expand Connectivity with QXP PCIe Cards
Install an exclusive QXP PCIe card onto your QNAP NAS, Windows or Ubuntu PC to connect the JBOD enclosure via SFF-8088 (or SFF-8644) cable , for easy and flexible storage expansion.

SAS/SATA 6Gb/s external cables
1-meter (3.28 ft.) SFF-8644 to SFF-8088 cable
• For QXP-1600eS-A1164, QXP-1600eS PCIe SATA card
• Support SATA 6Gb/s and SAS 6Gb/s
• Compatible with third-party SAS 6Gb/s JBOD products

1-meter (3.28 ft.) SFF-8088 to SFF-8088 cable
• For QXP-400eS-A1164 and QXP-800eS-A1164 PCIe SATA cards
• Support SATA 6Gb/s and SAS 6Gb/s
• Compatible with third-party SAS 6Gb/s JBOD products

Versatile usage scenarios to meet storage expansion needs
The TL-D1600S meets many storage expansion requirements for the home and office. Below is a list of potential application scenarios:

Expand your NAS capacity
The TL-D1600S provides an alternative method for users to expand their NAS storage capacity. By connecting the TL-D1600S to their NAS and using Storage & Snapshots Manager in QTS or QuTS hero, users can easily configure and manage their storage expansion. The TL-D1600S supports a variety of QNAP NAS storage and file management functions, allowing users to build storage pools, finding files with Qsirch, and organizing files with Qfiling.

External storage for your NAS
You can use the TL-D1600S to expand your NAS storage. You can select disks to create storage pools for expanding your NAS capacity, or you can treat each disk as an individual external storage space and use it as a removable drive for greater flexibility. Regardless of the mode you use, you can always use Storage & Snapshots Manager in QTS or QuTS hero to set up and manage your TL-D1600S and use hard drive S.M.A.R.T. and Notification Center to check disk status anytime and anywhere.

Mode 1: Expand NAS capacity by storage pool mode
You can use Storage & Snapshots Manager in QTS or QuTS hero to configure the RAID storage pool for your TL-D1600S and expand NAS capacity.

Mode 2: Expand your NAS by external storage mode
You can treat each disk on your TL-D1600S as an individual storage space and expand your NAS capacity. For example, it will show 8 independent external disks on an 8-bay NAS.

Expand the storage space of your Windows and Ubuntu computers
You can use your TL-D1600S to expand the storage space of Windows and Ubuntu computers. You can set up the RAID configuration of your TL-D1600S to further secure data protection. Moreover, you can also use the single disk mode and format with exFAT file system for more convenient access and sharing of files between Windows and Ubuntu computers.

Mode 1: RAID configuration mode
You can obtain data protection by building a software RAID 0, RAID 1, and RAID 5 volume with native utility in your Windows and Ubuntu computers, and use the QNAP JBOD Manager to monitor the TL-D1600S status information.

Mode 2: Single disk mode
You can format hard drives with the exFAT file system while accessing and sharing files between Windows and Ubuntu computers.

Third-party hardware RAID card for advanced protection
You can install third-party hardware RAID cards on your TL-D1600S for advanced hardware RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, and RAID 60 protection and use Windows utility software to manage your TL-D1600S.

TL-D1600S Offers Better Performance Than Other USB and eSATA JBOD Solutions
The TL-D1600S features SFF-8088 (or SFF-8644) connectivity and multiple SATA 6Gb/s bays. This provides better sequential read performance and faster data transfer speeds than existing USB and eSATA expansion enclosures, while also being a more economical option compared to a QNAP REXP SAS enclosure.
