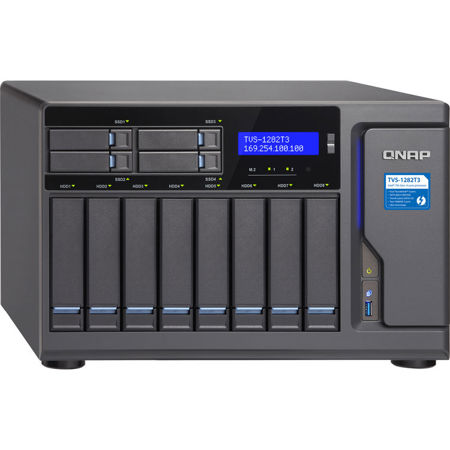

QNAP TVS-1282T3 12-Bay (8+4) Ultra-High Speed Thunderbolt3 NAS Enclosure/iSCSI IP-SAN, i5-7500 3.4 GHz, 16GB RAM

TVS-1282T3 - Powerful Thunderbolt 3 NAS boosts media collaboration between Mac and Windows users

Exclusively providing a Thunderbolt/NAS/iSCSI SAN triple solution, the TVS-1282T3 features four Thunderbolt 3 ports to enable seamless collaboration between up to four Mac and Windows devices. Coupled with its higher bandwidth to smooth 4K video transfer and online editing, the TVS-1282T3 is a perfect match for Thunderbolt-equipped Mac and Windows users for 4K workflows, file storage and high-speed sharing. The TVS-1282T3 leverages 7th Generation Intel 14nm multi-core processors and was designed around the concept of tiered storage, application-based partitioning and network traffic distribution, providing exceptional performance to fulfill critical tasks.

Note:
1.Requires MacOS Sierra 10.12.3 (or later) for using Thunderbolt connection on Mac.
2.Thunderbolt 3 reaches the maximum theoretical transfer rate of 40 Gigabits per second. Actual performance may vary due to hardware/software limitations and usage environment.
3.Thunderbolt 3 (40 Gbps) doubles its theoretical potential for speed when compared to Thunderbolt 2 (20 Gbps). This results in the TVS-1282T3's file transfer speed increasing from 900 MB/s to 1,600 MB/s.

Thunderbolt 3 NAS, extraordinary performance
Featuring high-performance 7th Generation Intel processors, the TVS-1282T3 provides three options powered an Intel Core i5 quad-core processor with 16GB DDR4 RAM and Intel Core i7 quad-core processor with 32GB/64GB DDR4 RAM, driving outstanding system performance for CPU-demanding applications. The TVS-1282T3 Thunderbolt 3 NAS not only features Thunderbolt 3 technology for faster data transfer but also has dual 10GbE ports giving you incredible flexibility for network connectivity. The Thunderbolt 3 ports on the TVS-1282T3 are also compatible with USB Type-C cables/devices and supports 10 Gbps USB 3.1 Gen2, allowing compatibility with newer, faster USB external drives/enclosures for transferring large-sized media files.

Note: Thunderbolt cables are sold separately. Thunderbolt 3 (USB-C) to Thunderbolt 2 converters may not be compatible with certain Windows PC models.

Thunderbolt 3 certified cable
Next-generation Thunderbolt 3 delivers bi-directional 20Gbps speed. Use a certified Thunderbolt 3 40Gbps cable (with the Thunderbolt icon and "3") and an SSD RAID5 configuration to enjoy the highest possible performance and the best storage allocation for your NAS.

Note:
1. Please ensure your cable is Thunderbolt 3 certified.
2. Mac OS 10.11.5 (and later) enables SMB signing by default, which may impact the connection speed to the NAS. To improve the connection speed, users can disable SMB signing or use Qfinder Pro to connect to the NAS.

Highly-efficient media collaboration for Mac and Windows
The TVS-1282T3 is a perfect match for Thunderbolt 3-capable MacBook Pro, and is backward-compatible with Mac Pro and iMac featuring Thunderbolt 2 via Thunderbolt 3 (USB-C) to Thunderbolt 2 converter. The higher bandwidth is especially suited for creative professionals and enthusiasts from photographers, filmmakers to graphic designers who focus more on 4K or 3D workflows. The latest Final Cut Pro X 10.3 adds support for SMB protocol, allowing you to easily store files in the TVS-1282T3 and share files with Windows, and other devices using Thunderbolt, 10GbE or 1GbE connection. Up to 4 Thunderbolt devices can connect to the TVS-1282T3 to process real-time video editing simultaneously without impacting NAS performance, while 4K videos can be directly displayed using the TVS-1282T3's HDMI output. Coupled with its large capacity potential, the TVS-1282T3 provides an ideal storage solution with unmatched performance for high-resolution file storage and I/O-intensive tasks to increase productivity in multi-workstation environments.

Advanced hardware for greater efficiency
High-performance hardware, well-designed application functionalities and thoroughly-planned usage scenarios alongside flexible expansion interface are distinctive cornerstones for realizing optimum performance and diverse applications.

M.2 SATA 6Gb/s SSD & 2.5" SSD cache
The TVS-1282T3 provides 4 SSD slots dedicated for caching to increase IOPS performance, and provides higher transfer speeds and reliability with the compact, energy-efficient M.2 SSD. Using an SSD cache boosts overall system performance, and is perfect for improving overall workflow of random IOPS demanding applications such as virtualization. The TVS-1282T3 combines M.2 SSD, 2.5" SSD and HDD in one box to effectively realize tiered storage for exceptional application performance and lower TCO of storage at the same time.

Perfect storage trio: tiered storage, application-based partitioning & network traffic distribution
The advanced hardware design of TVS-1282T3 can facilitate optimized storage deployment based on different usage scenarios.

Tiered Storage
QNAP's Qtier Technology empowers the TVS-1282T3 with Auto Tiering that helps continuously optimize storage efficiency across M.2 SSD, SSD and SATA drives. With Auto Tiering, the TVS-1282T3 can automatically move frequently-used "hot" data to high-performance storage tiers and less-accessed "cold" data to lower-cost, higher-capacity drives, making the TVS-1282T3 an extremely efficient shared resource. Qtier now supports "On Demand Allocation Priority", providing customizable flexibility to arrange tiered storage suited for your system environments and application demands.

Application-based Partitioning
Every application requires different performance. For example, Surveillance Station requires higher-priority access to storage to ensure the integrity of recordings, while normal transmission speeds are sufficient for file sharing. However, when multiple applications are running on the same storage media, the required throughput level cannot be guaranteed as the storage media is busy handling I/O requests from all of them. The TVS-1282T3 supports three different types of storage media: M.2, SSD and SATA hard drives, and they can be configured as independent partitions for different applications, ensuring a sufficient throughput level for every application.

Network Traffic Distribution
With four GbE ports and two 10GbE ports, the TVS-1282T3 allows applications to use dedicated interfaces to meet network traffic distribution requirements. Network interfaces can also be easily managed with the Network & Virtual Switch app, which enables optimized network resources for TVS-1282T3, virtual machines and containerized apps. No matter if they are business organizations or individual users, they can effortlessly manage network connections by using the Network & Virtual Switch.

4K HDMI output with a free remote control for an excellent audiovisual experience
The TVS-1282T3 comes with three HDMI ports (4K 30hz output) for using three monitors in either "duplicated" or "extended" desktop configuration. You can connect the TVS-1282T3 to a HDTV or A/V receiver and use the media player in HybridDesk Station (HD Station) to enjoy rich media content and 4K videos. HD Station supports multi-tasking and user authentication so only authorized users can access the stored data. Besides using the bundled remote control, you can also turn your mobile devices into remote controls by installing the Qremote app to control HD Station. You can customize the actions of individual buttons of your QNAP remote control using QButton. From playing music, to viewing surveillance feeds in Surveillance Station, to shutting down or restarting the NAS, everyday and common tasks can be just a button press away with QButton.

Access 10GbE networks over Thunderbolt with Thunderbolt-to-Ethernet (T2E)
As Apple computers do not natively support 10 Gigabit Ethernet, Mac users previously needed to purchase a Thunderbolt-to-Ethernet adapter to connect to high-speed Ethernet networks. The innovative Thunderbolt-to-Ethernet (T2E) allows computers without Ethernet ports (such as MacBook Pro) to access 10GbE network resources over a Thunderbolt connection to the TVS-1282T3. This saves users from having to buy adapters or converters and greatly streamlines the connectivity process.

Note: T2E transmission speed may be affected when using a virtual switch. QNAP aims to continue improving and optimizing T2E performance.

Thunderbolt 3/NAS/iSCSI SAN triple solution
The TVS-1282T3 can simultaneously run general Ethernet services in addition to the Thunderbolt 3 network, completely independently and with no bandwidth interference. As an unmatched NAS that combines Thunderbolt, NAS and iSCSI SAN into one box, the TVS-1282T3 prevents the restriction of DAS connecting to only one device, and breaks the cost barrier for creating 10GbE high-speed network environments.

Thunderbolt NAS mode
You can directly access files on the TVS-1282T3 on a file-based level. Simply attach your computer to the TVS-1282T3 with a Thunderbolt 3 cable, and you will find the TVS-1282T3 in Finder/File Explorer with accessible shared folders available for you. It is plug-and-use, and completely simple.

Ethernet NAS mode
The TVS-1282T3 also features Ethernet networking for flexible file sharing across multiple devices simultaneously using SMB/CIFS, AFP and NFS for sharing across Windows, Mac and Linux/UNIX networks. Use Qfinder Pro to find the TVS-1282T3 attached to your computer, and you can find the Thunderbolt IP and Ethernet IP for file sharing based on your needs.

iSCSI SAN block-based mode
The TVS-1282T3 supports iSCSI SAN configuration.
