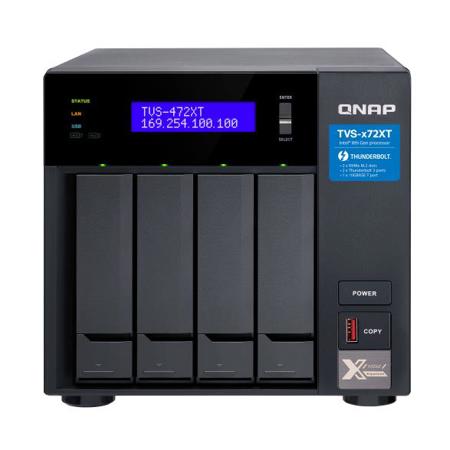

QNAP TVS-472XT Ultra-High Speed 4-Bay Thunderbolt 3 NAS Enclosure, Intel Pentium 2-Core 3.1 GHz, 4GB DDR4 RAM
SKU: QNTV472XTPT4
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Accessories
Specs
Protection
Q&A
About QNAP TVS-472XT
Breakthrough performance and outstanding connectivity with 10GbE, Thunderbolt 3, and M.2 PCIe NVMe SSD slots.
Powered by an 8th generation Intel Pentium Gold processor, the high-performance TVS-472XT NAS features both 10GBASE-T and Thunderbolt 3 high-bandwidth connectivity for tackling heavy workloads and smoothly transferring, displaying and editing 4K videos in real-time. With M.2 SSD support and the ability to install a graphics card, the TVS-472XT provides the ability to boost performance and create a scalable working environment for collaboration and high-speed file sharing. The TVS-472XT is driven by high-quality hardware that delivers optimum performance, comprehensive multimedia features, expandable storage capacity, and numerous other NAS functionalities to inspire greater creativity and accomplishments!
• High-speed Thunderbolt 3 with SMB protocol, allowing Mac and Windows users to collaborate on media editing.
• 5-speed 10GBASE-T RJ45 connectivity accelerates virtualization applications and file sharing across teams and devices.
• PCIe expandability allows the use of an entry-level graphics card to accelerate NAS video processing and GPU computing.
• Install M.2 PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs (sold separately) to set up caching or storage pools, improving file access efficiency.
• 4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI 2.0 (4K @60Hz) output.
• Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.
Fast and flexible Thunderbolt 3 and 10GBASE-T connectivity
The TVS-472XT adopts the powerful 8th generation Intel Pentium Gold G5400T dual-core 3.1 GHz processor with 4 GB dual-channel DDR4 memory (upgradable to 32 GB) to deliver outstanding performance. It provides two Gigabit and one 5-speed 10GBASE-T port (10G/5G/2.5G/1G/100M), supports SATA 6Gb/s drives, and features AES-NI encryption for delivering high performance while also maintaining the security of your data. You can also connect USB Type-C devices through the Thunderbolt 3 ports to transfer large media files across devices, providing you with a more efficient workflow.
Extend NAS functionality with a graphics card and other PCIe devices
The TVS-472XT features two PCIe Gen 3 slots (the first slot is pre-installed with a Thunderbolt 3 card) that allow for the usage of various expansion cards to expand application potential.
Graphics cards
Accelerate NAS video processing and empower GPGPU tasks. GPUs can also be passed-through to virtual machines.
QM2 M.2 SSD/10GbE cards
Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.
10GbE/ 40GbE adapters
Enable lightning-fast throughput for bandwidth-demanding tasks such as virtualization, massive data transmission, and fast backup/restoration.
Wireless network cards
Use the QNAP QWA-AC2600 wireless adapter with WirelessAP Station to transform the TVS-472XT into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.
Obtain performance benefits from M.2 SSD caching
Besides using 2.5" SSDs for caching, you can utilize the two M.2 SSD slots built in to the TVS-472XT for installing PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs with 2280 form factors (M.2 SSDs are sold separately).
Improve random data access speeds with an SSD cache
SSD caches accelerate IOPS performance and reduce latency for storage volumes. They are perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows.
Maximize the value of SSDs with Qtier Technology
Qtier Technology empowers the TVS-472XT with auto tiering that helps continuously optimize storage efficiency by automatically moving data between M.2 SSDs, 2.5" SSDs, and high-capacity HDDs based on the data's access frequency. Qtier 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSDs.
Potentially attain performance and endurance levels similar to enterprise-grade SSDs
With SSD prices continuing to become more affordable, there's never been a better time for using SSDs in your NAS to enjoy higher performance, faster file backups, smoother multimedia experiences, and optimized virtualization applications. From QTS 4.3.5 you can benefit from software-defined SSD RAID extra over-provisioning (OP) that enables you to allocate additional OP space (from 1% to 60%) to optimize random write speeds and to extend SSD lifespan. Now you can use affordable consumer SSDs for the TVS-472XT, adjust the SSD OP, and potentially attain performance and endurance levels similar to enterprise-grade SSDs.
Flexibly manage virtual and physical networks
The Network & Virtual Switch app manages physical network interfaces (including network adapters and Thunderbolt ports) and virtual adapters (virtual machines and containers) and their communications, providing a visualized topology that clearly presents the connections of physical and virtual networks. The flexible manageability enables you to reorganize physical and virtual network connections with greater ease, so you can allocate adequate network resources to the TVS-472XT, virtual machines and containers whenever needed.
Collaboration station for Mac and Windows
The TVS-472XT is the perfect match for Thunderbolt-equipped Mac and Windows users - especially for photographers, filmmakers, and graphic designers who require 4K media storage, instant sharing and have bandwidth-intensive workflows. Up to 2 Thunderbolt devices can be connected to the TVS-472XT to process real-time photo and audio editing simultaneously without impacting system performance. As Final Cut Pro X 10.3 (and later) supports file sharing via SMB, Windows users and other devices utilizing Thunderbolt 3, 10GbE or GbE connections can join the editing workflow more efficiently.
Note: Thunderbolt cables are sold separately. Thunderbolt 3 (USB-C) to Thunderbolt 2 converters may not be compatible with certain Windows PC models.
The best storage solution for the 10GbE-equipped iMac Pro
The iMac Pro is the first Mac computer that includes a 10Gb Ethernet port, marking a milestone in the growing mainstream demands for 10GbE connectivity. As the TVS-472XT comes with both 10GbE and Thunderbolt 3 ports, it provides an exceptional storage base for iMac Pro users as they can flexibly choose between Thunderbolt 3 and 10GbE connections to suit their application and device needs.
Create a seamless 10GbE environment for both Mac and Windows users
QNAP provides various budget-friendly solutions to help upgrade your network environment to 10GbE. No matter if your team members use Mac or Windows computers, they can enjoy blazing-fast transfer speeds and simultaneous real-time access to large NAS-based files using multiple workstations (ideal for video editing and multimedia).
QNA-T310G1T / QNA-T310G1S
The Thunderbolt 3 to 10GbE adapter empowers your Mac or Windows computers with blazing-fast 10GbE network connectivity using a Thunderbolt 3 type-C port.
QXG-10G1T
The 10GbE PCIe network adapter can be installed in Windows/Linux computers to add 10GbE connectivity.
QSW-1208-8C
The 12-port 10GbE 10GbE/NBASE-T unmanaged switch allows faster speeds using existing cables.
Ultimate visual experience with 4K HDMI output
The TVS-472XT has an HDMI 2.0 port which supports 4K (3840 x 2160) 60Hz output, providing great benefits for applications like video production/editing, industrial design and professional photography that demand on-image resolution and color realism as well as intensive media storage, transfer and display. By connecting the TVS-472XT to a HDTV via the HDMI output, you can directly view multimedia content saved on the NAS on a bigger screen. You can also download and install versatile multimedia apps from Ubuntu Software Center through QNAP Linux Station. QNAP's HD Station also allows users to directly enjoy multimedia using the HD Player or third-party players such as Plex Home Theater.
Real-time transcoding for an excellent cross-device media experience
Featuring advanced Intel UHD Graphics 610, the TVS-472XT supports triple-channel 4K H.264 hardware decoding and real-time transcoding, allowing you to convert videos to universal file formats that can be smoothly played on multiple devices.
The TVS-472XT's hardware provides H.264 hardware decoding, encoding and transcoding capabilities. However, playback quality may vary due to factors including playback software, file formats, system usage, and available bandwidth.
Complete backup planning
The TVS-472XT provides a reliable, flexible backup & disaster recovery solution to assist organizations in routine backup jobs with cost-efficiency and high productivity.
Windows and Mac backup
Use the license-free QNAP NetBak Replicator utility to back up/restore files from Windows computers. Time Machine is fully supported for backing up Mac computers.
Hybrid Backup Sync
Consolidates backup, restoration and synchronization functions (using RTRR, rsync, FTP, CIFS/SMB) for easily transferring data to local, remote and cloud storage spaces as a comprehensive data storage and disaster recovery plan.
Snapshots for Volume & LUN
Snapshots are essential for NAS data protection, and their block-level feature makes them a dependable method for protecting data in the face of the growing threat of ransomw
