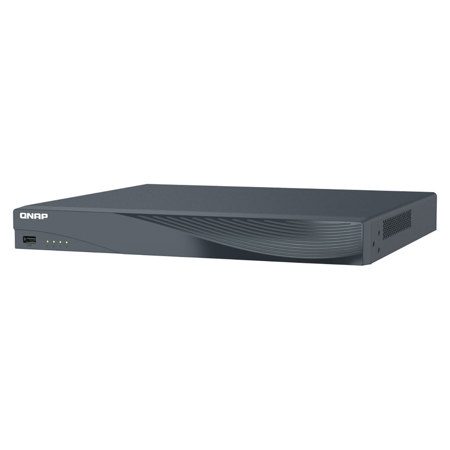

QNAP TVR-AI200 16-Channel 2-Bay 16MP PoE+ Smart NVR, Diskless

Safeguard multi-site retail environments
The cost-efficient and high-performing TVR-AI200 NVR features two fixed 2.5-inch/3.5-inch SATA hard drive bays and sixteen PoE+ ports. It is plug-and-play in offline mode, and within 10 minutes, you can complete setup and start recording. The TVR-AI200 supports real-time video display and playback with resolutions up to 16 megapixels (MP), H.265+ compression technology, AI video analytics, and remote backup. With the TVR-AI200, smart retail and small-to-medium businesses can deploy smart video surveillance solutions on a budget, ensuring around-the-clock environmental safety.

4K high-resolution video
The monitoring interface allows you to playback up to 16MP footage and output clear footage through the 4K HDMI port. It supports advanced compression technologies like H.265+ provided by the cameras, effectively reducing network bandwidth and halving storage space requirements.

Supports ONVIF S/T/G standards
Compatible with over 200 brands and more than 8,000 cameras, and supports third-party camera events and API platform services, providing high hardware and software compatibility.

Easy installation, quick deployment
Its 16 PoE+ ports directly powers IP cameras, transmitting both power and data through a single Ethernet cable, eliminating the need for complex cabling.

24/7 recording
Supports hard drives with capacities up to 24TB for storing recordings for over 540 days. Combined with QNAP's active backup solution, TVR-AI200 ensures uninterrupted multi-site video surveillance.

Remote monitoring, powerful management
Advanced real-time detection, notifications, and prompt response to suspicious events, with flexible monitoring through computers or mobile devices to keep you in control.

Lightweight AI Business Analytics
Built-in NPU acceleration for smart image/video recognition, offering advanced AI capabilities such as facial recognition and people counting, even without AI-enabled cameras.

Why choose QNAP surveillance solution
With professional-grade surveillance features, you can choose an easy-to-use QNAP surveillance appliance, or use QNAP NAS (Sold Separately) to run both video surveillance and other advanced functions (such as running virtual machines) for enhanced security and efficient management.

More than just an NVR, it's a New Intelligent Surveillance Appliance
The TVR-AI200 is an easy-to-deploy intelligent surveillance appliance that supports remote management, allowing you to quickly build a secure and efficient surveillance system.

Local display
Quickly establish a secure isolated network:

• Connect IP cameras to the 16 PoE+ plug-and-play LAN ports. Offline surveillance configuration further enhances security
• Connect to a 4K HDMI screen and USB keyboard/mouse for direct monitoring and video playback

Remote monitoring
Extend remote monitoring capabilities via WAN ports, beyond local monitoring:

• Monitor anytime, anywhere via QVR Client
• Integrate with QVR Center CMS centralized monitoring, and QVR Recording Vault centralized backup, for surveillance and management across multiple sites

One-Stop Surveillance Solution, Ideal for Smart Retail Stores

Quick installation
Simple cabling, no need to set up a switch, and rapid deployment of a 16-camera surveillance environment. For store surveillance needs, it can also be quickly deployed and set up.

Secure isolated network
Each store has its own isolated monitoring network, ensuring the security and privacy of surveillance video data, and significantly reducing the risks of data leakage.

Centralized management
Surveillance footage from every store can be monitored and backed up to headquarters, ensuring adequate multi-site NVR storage and long-term offsite archiving.

Flexible high-quality multi-channel monitoring for full control
With the TVR-AI200, you can monitor up to 16MP camera footage with built-in 4K HDMI output and watch multiple channels simultaneously, zooming in to regions of interest. You can also freely arrange multiple monitoring screens for the most suitable view of your environment, quickly grasping of all the situations.

16 PoE plug-and-play ports for IP Cameras
The TVR-AI200 complies with the 802.3at PoE+ standard, is equipped with 16 ports providing 25.5-watt PoE. A single Ethernet cable can simultaneously deliver data and power, supplying power to various 4K PTZ (Pan-Tilt-Zoom) cameras, fisheye cameras, and other high-powered IP cameras, with a total power supply capacity of up to 130W. When paired with a UPS (Uninterruptible Power Supply), it can easily support continuous recording for up to one hour during a power outage.

Wide IP camera compatibility
TVR-AI200 is compatible with over 200+ brands and more than 8,000 cameras that support the ONVIF standard and RTSP/HTTP streaming, as well as diverse video formats.

24/7 continuous recording
The TVR-AI200 has 2x 3.5-inch SATA hard drive bays and supports drives with up to 24TB storage capacity. This enables storing over 540 days of 24/7 continuous recording footage, and ensures easy access to your data.

Efficient Storage with H.265+ HD Surveillance Footage
Storing and streaming high-quality surveillance recordings require significant network bandwidth and hard drive space. The TVR-AI200 supports MJPEG, H.264, H.264+, H.265, H.265+, and MxPEG video formats, allowing cameras to transmit Ultra HD footage via efficient compression technologies. This reduces network load and saves hard drive space, lowering surveillance costs while maintaining video quality.

Comprehensive smart surveillance features for environmental security
The TVR-AI200 assists administrators and security staff identify, monitor, and respond to suspicious activities, enhancing the safety of the environment and people.

Real-time detection
Native detection: Motion detection, disconnect detection, and other abnormal status alerts and notifications. Third-party detection: License plate recognition, detection of lost property, detection for crossing lane lines, and more, supported by brands like VIVOTEK, AXIS, Hikvision, Dahua.

Instant notifications
If an incident is detected, in addition to flashing red frames of cameras shown on the dashboard, alarm, the e-map displays the location of the camera. It also supports notifications via SMS, push notifications, and email.

Timely response
With self-defined detection and triggering rules for further responses, you can collaborate incident alarms to activate recordings, or connect with IoT devices to respond to incidents.

Remote monitoring in real-time
With QVR Client, you can monitor your surveillance footage anytime and anywhere through a web browser, computer, or mobile device. QVR Client adapts to various screen sizes, offering a clear presentation of your surveillance footage.

AI Facial Recognition and People Counting
Attain greater commercial insights and surveillance management efficiency! AI surveillance is ideal for smart retail and smart building surveillance applications.

Facial recognition
Utilizing QVR Face profile database, QVR Client shows you real-time information of detected faces, and helps you quickly search and play related recordings.

People flow counting
QVR Human counts the number of people passing through the detection line and detects people density in specific regions. View real-time people flow in the map view and generate the analysis report of people flow.

Centralized management via control center

Multi-site surveillance
Administrators can deploy QVR Center at headquarters to remotely manage up to 256 TVR-AI200 or QVR surveillance appliances and over ten thousand cameras.

Multi-site backup
By enabling QVR Recording Vault on a high-capacity QNAP NAS deployed at the headquarters, administrators can automatically back up recordings from multiple TVR-AI200 based in different sites, enhancing local backup efficiency and realizing long-term offsite archiving.

Flexible installation options for space optimization
TVR-AI200 can be conveniently placed on a desktop, mounted in a rack, or in a small media cabinet.
