This item is no longer available.
High-performance Thunderbolt 2 Turbo vNAS: tiered storage, application-based partitioning and network traffic distribution.
• Built-in M.2 SATA 6Gb/s slots & 2.5" SSD slots
• Qtier technology and SSD cache enable 24/7 optimized storage efficiency
• The Network & Virtual Switch app assists network traffic distribution and re-routes dedicated bandwidth for diverse applications
• Triple HDMI output (including one HDMI 2.0) for smooth 4K video playback
• Thunderbolt 2 (20Gbps) and 10GbE dual network for on-the-fly video editing and speedy sharing
• 4 available combinations with Mac/PC and JBOD for flexible attaching, sharing and expansion
• Scalable up to 448 TB with the Thunderbolt 2 storage expansion enclosures TX-800P/ TX-500P
• Virtual JBOD (VJBOD) allows to use QNAP NAS to expand the TVS-1282T's storage capacity
• Supports QRM+ unified remote server management, QvPC technology, virtual machine and container applications and storage for virtualization
Thunderbolt 2 NAS, extraordinary performance

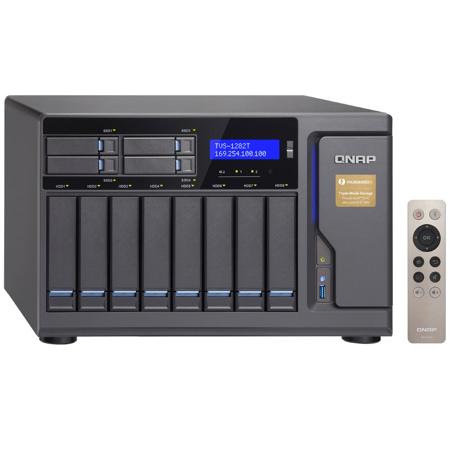

The TVS-1282T provides two options powered by a high-performance Intel Core i5 quad-core processor with 16GB DDR4 RAM and Intel Core i7 quad-core processor with 64GB DDR4 RAM, driving outstanding system performance for CPU-demanding applications. Offering a comprehensive DAS/NAS/iSCSI SAN multi-mode storage solution in a compact form factor, the TVS-1282T not only features Thunderbolt 2 technology but also has dual 10GbE ports giving you incredible flexibility for network connectivity.
Note: 1
Thunderbolt cables are not included as standard. Users must purchase Thunderbolt cables separately.
Advanced hardware for greater efficiency
High-performance hardware, well-designed application functionalities and thoroughly-planned usage scenarios are three distinctive cornerstones for achieving optimum performance.
M.2 SATA 6Gb/s SSD & 2.5" SSD cache
The TVS-1282T provides 4 SSD slots dedicated for caching to increase IOPS performance and provides higher transfer speeds and reliability with the compact, energy-efficient M.2 SSD. Using an SSD cache boosts overall system performance and is perfect for improving overall workflow of random IOPS demanding applications such as virtualization. The TVS-1282T combines M.2 SSD, 2.5" SSD and HDD in one box to effectively realize tiered storage for exceptional application performance and lower TCO of storage at the same time.
Perfect storage trio: tiered storage, application-based partitioning & network traffic distribution
The advanced hardware design of TVS-1282T can facilitate optimized storage deployment based on different usage scenarios.
Tiered Storage
QNAP's Qtier Technology empowers the TVS-1282T with Auto Tiering that helps continuously optimize storage efficiency across PCIe NVMe SSD, M.2 SSD, SSD and SATA drives. With Auto Tiering, the TVS-1282T can automatically move frequently-used "hot" data to high-performance storage tiers and less-accessed "cold" data to lower-cost, higher-capacity drives, making the TVS-1282T an extremely efficient shared resource. Businesses will no longer have to invest heavily in expensive Flash technology, but can still enjoy exceptional application performance and cost efficiency from Auto Tiering with the TVS-1282T.
Application-based Partitioning
Every application requires different performance. For example, Surveillance Station requires higher-priority access to storage to ensure the integrity of recordings, while normal transmission speeds are sufficient for file sharing. However, when multiple applications are running on the same storage media, the required throughput level cannot be guaranteed as the storage media is busy handling I/O requests from all of them. The TVS-1282T supports three different types of storage media: M.2, SSD and SATA hard drives and they can be configured as independent partitions for different applications, ensuring a sufficient throughput level for every application.
HDMI 2.0 for playing 4K 60 fps videos
The TVS-1282T features three HDMI ports, including one HDMI 2.0 port for smoothly playing Ultra HD 4K (4096 x 2304) videos. You can connect the TVS-1282T to a TV or A/V receiver and use the powerful Kodi media player in HD Station with the QNAP remote control to enjoy rich media content and 4K 60 fps videos with the best audiovisual experience. Featuring Intel HD Graphics, the TVS-1282T delivers superior real-time 4K (H.264) and 1080p video transcoding to convert videos to universal formats that can be smoothly played on PCs, mobile devices and Smart TVs.
Three HDMI outputs - switch between HD Station and Linux desktop
The TVS-1282T comes with three HDMI outputs for using three monitors in either "duplicated" or "extended" desktop configuration. Duplicating will display the same content on every display and extended desktop mode allows users to display applications across the displays for improved multitasking convenience and productivity. When displaying content using HDMI, you can use the TVS-1282T as an amazing multimedia player by using HD Station to enjoy rich apps including Kodi, HD Player, Plex Home Theater, YouTube, Spotify, JRiver, Google Chrome, Mozilla Firefox and more. Alternatively, you can choose to output the Linux operating system desktop to use the TVS-1282T as a PC.
Thunderbolt/Ethernet dual network
The Thunderbolt 2 protocol uses industry-standard networking technologies meaning the high-speed transmission over your Thunderbolt 2 cable is able to run all network services (such as file sharing, FTP and other services). The TVS-1282T can also simultaneously run general Ethernet services in addition to the Thunderbolt 2 network, completely independently and with no bandwidth interference. You can flexibly allocate proper bandwidth for different concurrent tasks.
Pioneering DAS/NAS/ iSCSI-SAN triple solution
The TVS-1282T is an unmatched NAS that combines DAS, NAS and iSCSI-SAN into one box. It prevents the restriction of DAS connecting to only one device and breaks the cost barrier for creating 10GbE high-speed network environments. The TVS-1282T Thunderbolt 2 NAS dramatically redefines the private cloud, combining the best of DAS and NAS.
DAS file-based mode
You can directly access files on the TVS-1282T on a file-based level. Simply attach your Mac computer to the TVS-1282T with a Thunderbolt 2 cable and you will find the TVS-1282T in Finder with accessible shared folders available for you. It is plug-and-use and completely simple.
Thunderbolt/Ethernet NAS mode
The TVS-1282T features Thunderbolt & Ethernet dual networking for flexible file sharing across multiple devices simultaneously, using SMB/CIFS, NFS and AFP protocols for sharing across Windows, Mac and Linux/UNIX networks. Use Qfinder Pro to find the TVS-1282T attached to your computer and you can find the Thunderbolt IP and Ethernet IP for file sharing based on your needs.
iSCSI SAN block-based mode
The TVS-1282T supports iSCSI SAN configuration, while the Thunderbolt interface can contribute a lot to iSCSI SAN storage performance. After creating an iSCSI target on the TVS-1282T, you can access the iSCSI with your computer through Thunderbolt IP.
Seamless storage expansion
The TVS-1282T supports capacity expansion by connecting up to six Thunderbolt 2 storage expansion enclosures. You can gradually expand the TVS-1282T's storage on demand and use the QTS Storage Manager to easily handle the NAS capacity expansion and storage expansion enclosure management.
Use NAS to expand NAS capacity with Virtual JBOD
Besides using physical storage expansion enclosures, there is an additional option to expand NAS storage capacity. QNAP VJBOD (Virtual JBOD) is network-based JBOD, allowing you to expand storage of your QNAP NAS with multiple QNAP NAS units. You can mount iSCSI LUNs from a QNAP NAS to the TVS-1282T as local disks and create virtual storage pools and volumes for operating NAS functionalities, such as creating and reverting snapshots, indexing multimedia files into the media library and even further creating iSCSI LUNs. With VJBOD, you can centrally utilize the storage space from multiple QNAP NAS units and manage it with the interface on the local NAS. VJBOD supports 10GbE/40GbE Ethernet connection interface and port trunking (link aggregation with multiple LAN ports) that increase the performance and reliability of your VJBOD storage.
Note: 2
The remote QNAP NAS must support iSCSI and Storage Pools and use QTS 4.2.1 (or newer). Up to 8 remote NAS units can be mounted.
• Network Traffic Distribution
• Use NAS to expand NAS capacity with Virtual JBOD
• Flexibly attach, share and expand in 4 ways
• High accessibility (Mac+JBOD)
• Optimal collaboration (Mac+Mac)
• Dividing resources (Mac+NAS)
• Seamless expansion (JBOD+JBOD)
• Ideal for Thunderbolt-equipped Mac users
• A feature-rich NAS with QTS operating system
• QTS - simple and powerful
• QRM+: Centralized Remote Server Management Solution
• QmailAgent: a mailroom center for your private cloud
• Storage for hosting virtual machines and containerized applications
• Storage for comprehensive virtualization applications
• Use your TVS-1282T as a PC
• Comprehensive security
• Well-rounded backup & disaster recovery solutions
• Cross-device file synchronization
• Install-on-demand apps to extend NAS functionality
