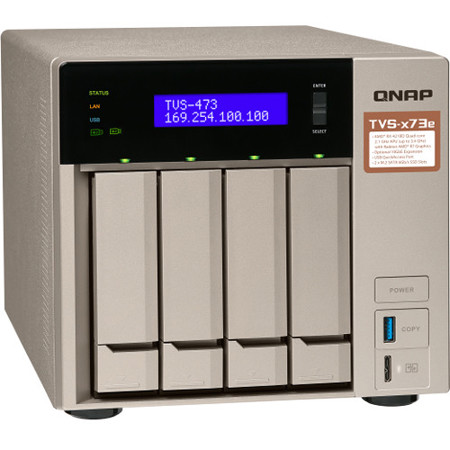

QNAP TVS-473e 4-Bay NAS Enclosure/iSCSI IP-SAN, AMD RX-421BD Quad-Core 2.1GHz, 8GB RAM

TVS-473e - A powerful business NAS with an AMD RX-421BD quad-core APU, up to 64GB DDR4 RAM, and supports dual PCIe slots, USB QuickAccess and HDMI 4K output.

The TVS-473e is powered by a high-end AMD R-Series APU that incorporates an exceptional CPU with AMD Radeon R7 Graphics performance, delivering a high-performance and energy-efficient NAS solution. Built with a state-of-the-art metal design and topped off with a stylish gold finish, the highly-capable TVS-473e provides PCIe expandability, the unique USB QuickAccess port, HDMI 4K@ 30Hz output, and 4K H.264 video decoding and encoding acceleration for an optimum audiovisual experience.

AMD Embedded R-Series SoC built for speed
AMD Embedded R-Series SoC uses "Excavator" x86 CPU cores, and supports AMD Radeon 3rd-generation GCN and DDR4. The AMD RX-421BD APU, featuring an integrated Radeon R7 series Graphics Processing Unit, provides the TVS-473e with the high-end model of the AMD R-Series family. The TVS-473e also provides two PCIe Gen3 x4 expansion slots for boosting the potential for 10GbE network performance.

AMD R-Series quad-core APU, up to 64GB RAM
Equipped with a next-gen AMD R-Series RX-421BD quad-core 2.1 GHz APU (Turbo Core up to 3.4 GHz) with up to 64GB dual channel DDR4 RAM, the TVS-473e enables lightning-fast multi-tasking with low power consumption for up to 1106 MB/s throughput with a 10GbE configuration. With a hardware-accelerated encryption engine with AES-NI, the TVS-473e also provides unmatched encryption performance in its class (up to 1091 MB/s with AES 256-bit full NAS volume encryption) to boost system performance, security, and ensuring the safety of sensitive business data stored in the NAS.

Top-class hardware engineering
The sturdy and feature-packed hardware bolsters overall system performance. Coupled with the flexible and expandable architecture, the TVS-473e can fulfill diversified application needs.

Expands NAS potential with dual PCIe slots
The TVS-473e features a pair of PCIe (Gen3 x4) slots, allowing for installing optional single/dual-port 10GbE NICs to accelerate applications that demand higher bandwidth such as virtualization, media workflows, and backup/restoration tasks for an ever-growing amount of data; or a USB 3.1 Gen2 (10Gb/s) expansion card for transferring large media files to and from USB storage. You can also insert QM2 cards or wireless network cards to extend NAS functionality.

Note: USB 3.1 performance may vary depending on hardware/software limitations and usage environment.

Greater efficiency with SSD caching and 10GbE connectivity
The TVS-473e supports the innovative QM2 PCIe card that allows for adding up to two M.2 SSDs. You can configure SSD caching, or create a RAID 5 tiered storage along with the two M.2 SSDs in the NAS*. As these M.2 SSDs will not occupy any 3.5-inch drive bays, the QM2 card allows you to maximize both your storage capacity and performance. There are also QM2 cards that include 10GbE 10GBASE-T connectivity to provide SSD caching with high-speed network connectivity on a single card.

Note: M.2 SSDs for NAS and QM2 cards are sold separately.

SSD cache with Qtier optimization for around-the-clock acceleration
The TVS-473e features SSD caching, and also supports optional M.2 SATA 6Gb/s SSDs. Using an SSD cache boosts overall system performance, and is perfect for improving the overall workflow of random IOPS demanding applications such as virtualization. QNAP's Qtier Technology empowers the TVS-473e with auto tiering that further helps continuously optimize storage efficiency across M.2 SSD, 2.5-inch SSD, and high-capacity SATA drives with around-the-clock acceleration. The new Qtier 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.

Note: M.2 SSD is optional. As M.2 SSD operations can easily generate excessive heat, it is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.

Superior 4K video transcoding and dual 4K HDMI output
The TVS-473e features AMD 3rd Gen GCN architecture with breakthrough GPU performance to support 4K H.264 video decoding and stunning 4K UHD display. It delivers superior real-time 4K and 1080p video transcoding to convert videos to universal formats that can be smoothly played on PCs, mobile devices and Smart TVs. The TVS-473e offers dual HDMI output that support "duplicated" or "extended" desktop configurations. You can connect the NAS to a HDTV or A/V receiver and use the media player in HybridDesk Station (HD Station) with the QNAP remote control (sold separately) or Qremote mobile app to enjoy rich media content and 4K @30Hz videos with the best audiovisual experience.

Note:
1. Supported video formats depend on the hardware and software specifications of the devices.
2. At least 1GB shared graphics memory is required for 4K or multiple 1080p H.264 video transcoding and playback. You can configure this setting in "Control Panel" > "Hardware" > "Shared graphics memory"
3. Playback capability and quality may vary due to factors including the original file formats/quality, hardware and software limitations, and output devices.
4. To use Linux Station desktop, Linux Station must be installed from the App Center.

Block-based iSCSI LUN: Ideal choice for virtualization storage
The TVS-473e supports block-based iSCSI LUN, and supports VMware, Citrix, Microsoft Hyper-V and Windows Server 2012 R2, providing high-performance, reliable and affordable storage solution for virtualization environments. The TVS-473e supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supports QNAP vSphere Client plug-in and QNAP SMI-S provider with enhanced operational efficiency and management in virtualization applications. Moreover, using the iSCSI Extensions for RDMA (iSER) protocol with a compatible 10GbE NIC helps boost data transfer performance of the TVS-473e as VMware ESXi storage, providing an essential tool to optimize demanding virtualization applications.

All-in-one server to host virtual machines and containers
Virtualization Station and Container Station jointly introduce a hybrid approach to virtualization. No matter what your virtualization needs are, you can count on QNAP for complete virtualization support.

Virtualization Station allows you to run multiple Windows, Linux, UNIX and Android virtual machines and access them via a web browser or VNC (Virtual Network Computing). Businesses can run virtualized server applications on a single NAS without the need for additional physical servers.

Container Station integrates LXC and Docker lightweight virtualization technologies. You can download apps from the built-in Docker Hub to easily import/export container apps and manage access control, enjoying the benefit of easy installation, transferability and high-efficiency.

Upgrade your IT environment with QNAP's fast and affordable 10GbE Switch!
QNAP 10GbE/NBASE-T unmanaged switches allow you to instantly upgrade your network environment at a cost-effective price. With a 10GbE network you can enjoy blazing-fast transfer speeds, empower bandwidth-demanding tasks like virtualization, and enable simultaneous real-time access to large NAS-based files using multiple workstations (ideal for video editing and multimedia). QNAP also provide a 10GbE PCIe network expansion card for the TVS-473e and Windows/Linux PCs to take advantage of high-speed LAN environments.

QTS - Intelligent, intuitive and creative NAS operating system
With modularized multiple applications and functions, QTS enhances management efficiency, personal productivity, multimedia, and much more, making your NAS experience easier, efficient, and more flexible! The new Qboost provides a NAS optimization tool that helps accelerate applications, free up system resources, and schedule applications. The built-in App Center with hundreds of install-on-demand apps realizes far more extensive NAS functionality. QTS breaks the barriers of devices, platforms, and geography to bring you optimized cloud experiences and incorporates advanced features.

Optimized collaboration with seamless file sharing and sync
The TVS-473e centrally stores data and various files, and supports SMB/CIFS, AFP and NFS protocols for file sharing across Windows, Mac, Linux/UNIX networks. Coupled with Qsync - a utility that turns a QNAP NAS into a safe, high-capacity data center for file synchronization - any file uploaded to the TVS-473e will be made available for all linked devices, such as computers, laptops or mobile devices. You can sync shared folders and team folders for group file sharing, greatly enhancing the flexibility of team projects and collaboration. Files can be centrally managed using File Station, including files from mobile devices and optical disc drives. File Station also allows you to mount a remote NAS, and transfer files between your NAS and public cloud services for greater convenience.

Extensive backup solutions for complete disaster recovery planning
QNAP provides a flexible backup and disaster recovery solution to assist organizations in routine backup jobs with greater cost-efficiency and productivity.

Windows and Mac backup
Use the license-free QNAP NetBak Replicator utility to back up/restore Windows files, alongside Time Machine support for Mac devices. It is easy, fast and convenient.
