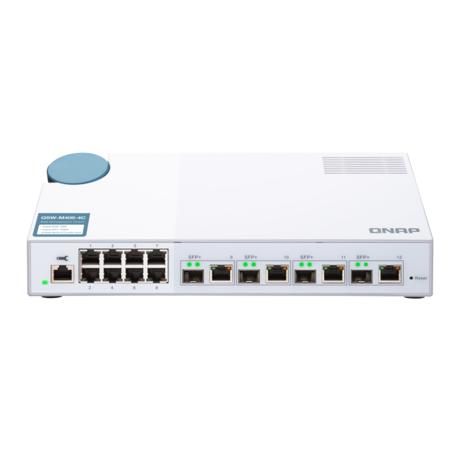

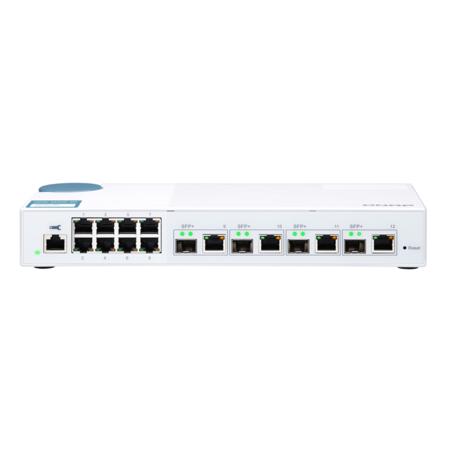

QNAP QSW-M408-4C 12-Port Managed Switch with 8x 1GbE, 4x 10GbE SFP+/RJ45 Combo Ports and NBASE-T

SKU: QNWM4084CUS

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Larry R : 4 combo ports @ 10Gb 8 1Gb ports. Will see how the software interface is but read that it was good.Luis Diego S : Best priced multi 10GbE switch out there

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

QNAP QSW-M408-4C Specifications

Hardware

Hardware

Jump to...
  • Management Type

    Web Managed

  • Number of Ports

    12

  • 10GbE SFP+/RJ45 Combo Ports

    4

  • 1GbE (RJ45)

    8

  • Management Port

    1 x 1GbE RJ45

  • Power Supply Description

    Adapter

  • Max. Power Consumption

    31.46 W

  • Input Power Type

    AC

  • Input Voltage Range

    100-240VAC, 50/60 Hz

  • MAC Address Table

    16K

  • Total Non-Blocking Throughput

    48Gbps

  • Switching Capacity

    96Gbps

  • Management Interface

    Web

  • Energy Efficient Ethernet

    Yes (IEEE 802.3az complaint)

  • Fan

    PWM double ball bearing fan x 1

  • Supported Standards

    IEEE 802.3 Ethernet
    IEEE 802.3u 100BASE-T
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3bz 2.5G/5GBase-T
    IEEE 802.3an 10G BASE-T
    IEEE 802.3z 1000BASE-SX/LX
    IEEE 802.3ae 10G Fiber
    IEEE 802.3x Full-Duplex Flow Control
    IEEE 802.1Q VLAN Tagging
    IEEE 802.1w RSTP
    IEEE 802.3ad LACP
    IEEE 802.1AB LLDP
    IEEE 802.3az Energy Efficient Ethernet
    IEEE 802.1p Class of Service

  • Form Factor

    Desktop

  • LED Indicators

    Per Port: Speed/Link/Activity
    Per System: Power/Status

  • Buttons

    Reset button

  • Operating Temperature

    0 Degree C to 40 Degree C (32 Degree F to 104 Degree F)

  • Relative Humidity

    5-95% Non-condensing

  • Certifications

    CE, FCC, VCCI, BSMI, CCC

  • Electromagnetic Compliance

    CLASS A

  • Jumbo Frames

    9K

  • Dimensions (H x W x D)

    1.67 x 11.42 x 5" (4.24 x 29 x 12.7cm)

  • Weight

    2.54 lbs (1.15kg)

Software

Jump to...
  • Standards Compliance

    IEEE 802.3 Ethernet
    IEEE 802.3u 100BASE-T
    IEEE 802.3ab 1000BASE-T
    IEEE 802.3bz 2.5G/5GBase-T
    IEEE 802.3an 10G BASE-T
    IEEE 802.3z 1000BASE-SX/LX
    IEEE 802.3ae 10G Fiber
    IEEE 802.3x Full-Duplex Flow Control
    IEEE 802.1Q VLAN Tagging
    IEEE 802.1w RSTP
    IEEE 802.3ad LACP
    IEEE 802.1AB LLDP
    IEEE 802.3az Energy Efficient Ethernet
    IEEE 802.1p Class of Service

  • Port Management

    Port status
    Port statistics
    Port configuration
    Jumbo frame support
    IEEE 802.3x flow control
    Auto-negotiation of speed and duplex modes

  • QoS

    Port-based QoS
    IEEE 802.1p CoS
    IPv4 DSCP-based QoS
    IPv4 ToS-based QoS

  • VLAN

    VLAN configuration
    Port-based private VLAN
    IEEE 802.1Q-based VLAN

  • Layer 2 Features

    Port trunking
    LACP groups
    IGMP snooping v1, v2 and v3

  • Security

    Access Control Lists (ACL): ACL by IP address, ACL by MAC

  • Other Features

    Link Layer Discovery Protocol (LLDP): LLDP remote device
    Interface: Web UI
    SNTP, DNS, DHCP client entry

  • RSTP

    IEEE802.1w Rapid Spanning Tree

  • UPC Code

    885022018734

About QNAP QSW-M408-4C

Where advanced technology meets sophisticated design, the QNAP QSW-M408-4C 12-Port Managed Switch emerges as a high-tech solution for your networking needs. This state-of-the-art switch is equipped with eight 1GbE ports and four 10GbE SFP+/RJ45 combo ports, providing a high number of connection points for your devices.

The QNAP QSW-M408-4C is not just a managed switch, but a powerful tool for optimizing network performance. It supports Layer 2 switching and network management through an intuitive web user interface, making it an ideal solution for both IT professionals and non-IT users.

This innovative switch is compatible with 10GbE and NBASE-T technologies, supporting up to five speeds (10G / 5G / 2.5G / 1G / 100M). This means you can achieve higher transmission speeds using your existing Cat 5e and 6a cables, making it a cost-effective solution for upgrading to a hybrid high-speed network environment.

The QNAP QSW-M408-4C also offers advanced management features such as LACP, VLAN, ACL, and LLDP, allowing IT administrators to efficiently control network bandwidth and enhance security. It is one of the few web-managed switches that support Rapid Spanning Tree Protocol (RSTP), enabling easy and efficient deployment of small to medium scale networks with support for expansion, redundancy, and loop prevention.

Compliant with IEEE 802.3az Energy Efficient Ethernet and IEEE802.3x Flow Control in full-duplex mode, this switch avoids packet loss from unparalleled bandwidth and reduces power consumption for low-speed and inactive connections.

The QNAP QSW-M408-4C 12-Port Managed Switch is not just a networking device, but a comprehensive solution for creating a high-speed network environment that boosts performance for bandwidth-demanding tasks such as photo/video editing, virtualization, and large-file data transfers. Its compact, modern design makes it a perfect fit for any digital office, and its user-friendly features make network management intuitive and easy.

QNAP QSW-M408-4C Features

  • Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
  • QSS: Intuitive Network Management Software with Web GUI
  • QSS: The human-centered setting guide
  • Optimize Network Performance with bandwidth and packet control
  • Powerful security and system functions
  • Faster speeds using existing cables with 10GBASE-T & NBASE-T
  • Improve team productivity with a 5GbE/ 10GbE High-Speed Network
  • Desktop size for easy use in offices

Key Features

  • Experience fast data transfer with 8x 1GbE ports on this QNAP managed switch.
  • Utilize the 4x 10GbE SFP+/RJ45 combo ports for high-speed network connectivity.
  • Enjoy easy management via a user-friendly web interface for network optimization.
  • Ensure reliable performance with robust hardware and advanced software features.
  • Enhance your network security with Access Control Lists (ACL) for safer data handling.
  • Optimize bandwidth with QoS, prioritizing critical applications on your network switch.

What's in the box:

  • Qnap QSW-M408-4C 12-Port Managed Switch
  • Power Cord
  • Power Adapter
  • Quick Start Guide
  • Qnap 2 Year Limited Warranty
