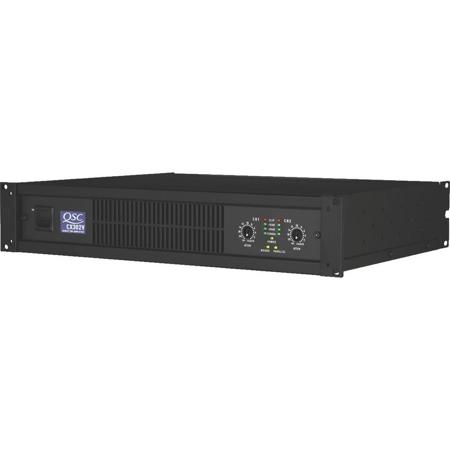

QSC CX302V 2-channel Professional Power Amplifier
See all QSC items

QSC CX302V 2-channel Professional Power Amplifier, 250W at 70V Stereo Mode, 400W at 140V Bridge-Mono, 20Hz-20kHz, 12kOhms Balanced Input Impedance

SKU: QSCCX302V
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the output power of the QSC CX302V 2-Channel Professional Power Amplifier?

The QSC CX302V delivers 250W at 70V in stereo mode and 400W at 140V in bridge-mono mode.

What is the frequency response of the QSC CX302V?

The QSC CX302V has a broad frequency response of 20Hz-20kHz, ensuring balanced and detailed sound across all frequencies.

What is the input impedance of the QSC CX302V?

The QSC CX302V features a balanced input impedance of 12kOhms, making it compatible with a wide range of audio equipment.

What technology is integrated into the CX302V amplifier?

The CX302V integrates QSC's exclusive PowerLight technology for efficient power use and consistent performance.

Is the QSC CX302V suitable for fixed installations?

Yes, the QSC CX302V is designed with high thermal capacity and unmatched reliability, making it an excellent solution for any permanently installed sound system.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

QSC CX302V Specifications

  • Stereo Mode (both channels driven)

    70V / 20 Hz - 20 kHz / 0.05% THD: 200 W
    70V / 1 kHz / 0.05% THD: 250 W
    70V / 1 kHz / 1% THD: 300 W

  • Bridge-Mono Mode

    140V / 20 Hz - 20 kHz / 0.1% THD: 400 W
    140V / 1 kHz / 0.05% THD: 500 W
    140V / 1 kHz / 1% THD: 600 W

  • Signal to Noise (20 Hz - 20 kHz)

    > -106 dB

  • Input Sensitivity at 8 Ohms

    1.26 Vrms

  • Gain at 8Ohms

    35 dB

  • Output Circuitry

    Class AB+B

  • Distortion

    SMPTE-IM: < 0.02%
    Typical 20 Hz - 20 kHz: 10 dB below rated power: < 0.1% THD
    Typical 10 kHz and below: full rated power: < 0.01% THD

  • Frequency Response

    20 Hz - 20 kHz, +/- 0.2 dB

  • Damping Factor

    > 500

  • Input Impedance

    6kOhms unbalanced, 12kOhms balanced

  • Input Clipping

    10 Vrms (+22 dBu)

  • Cooling

    Variable-speed fan, rear-to-front air flow

  • Connectors

    Input: 3-pin XLR & 3-pin detachable terminal blocks (1 each per channel) Output: Safety shrouded barrier strip

  • Amplifier Protection

    Full short circuit, open circuit, thermal, ultrasonic, RF protection. Stable into reactive or mismatched loads

  • Load Protection

    On/off muting, DC-fault power supply shutdown

  • 120V Current Consumption

    0.8 A: Idle
    1/8 power pink noise: 5.7 A at 70V
    1/3 power pink noise: 8.0 A at 70V

  • Dimensions (H x W x D)

    3.5" / 88.90mm 2 RU x 19" / 482.60mm rack mounting x 14" / 355.60mm from front mounting rails

  • Weight

    21lbs / 9.53kg

  • UPC Code

    684284000415

About QSC CX302V

The QSC CX302V is designed to meet the specialized needs of sound contractors. This CX302V 2-channel have been designed from the ground up, combining the exclusive QSC PowerLight technology with specific features to meet the requirements of fixed installations. With high-output power, versatile loading options, high thermal capacity and unmatched reliability, the CX Series is the perfect solution to any permanently installed sound system.

QSC CX302V Features

  • Exclusive PowerLight switch-mode power supply technology for high performance and compact size
  • Custom integrated security cover for tamper proof installations
  • Variable speed fan for low noise
  • 1dB detented gain controls for fast and accurate gain settings
  • Active inrush limiting eliminates AC inrush current, removing the need for expensive power sequencers
  • XLR and detachable Euro-style input connectors
  • HD15 DataPort connector for QSControl computer control or signal processing accessories
  • DIP switch control for clip limiters, high-pass filters, bridge-mono and parallel operation
  • Selectable high-pass filters protect speakers and prevent speaker transformer saturation with minimal effect on program material (50 Hz or 75 Hz)
  • Comprehensive front panel indicators including signal, clip, protect and QSC's exclusive bridge-mono and parallel input LEDs
  • Barrier strip output connector
  • Comprehensive protection circuitry including DC, infrasonic, thermal overload and short circuit protection
  • Class H complementary bipolar output circuitry for high efficiency
  • Optional external transformer accessory pack for isolated 70 and 100 volt outputs (converts CX302 to 400 watts per channel isolated output)
  • Compact size all models only 2 RU and 14" deep for reduced rack cost and floor space
  • Lightweight all models only 21 pounds (9.5 kg) for easier racking and shipping

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Custom integrated security cover for tamper proof installations
  • Variable speed fan for low noise
  • 1dB detented gain controls for fast and accurate gain settings
  • XLR and detachable Euro-style input connectors
  • Barrier strip output connector
  • Class H complementary bipolar output circuitry for high efficiency

What's in the box:

  • QSC CX302V 2-channel Professional Power Amplifier
  • Integrated Security Cover
  • QSC 3 Year Warranty
