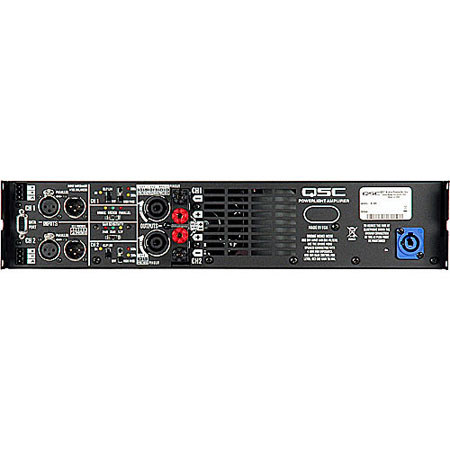

QSC PowerLight 3 Series PL340 2-channel Professional Power Amplifier, 800/1250/2000W at 8/4/2Ohms Stereo Mode, 2600W at 8 Ohms Bridge Mode, 20Hz-20kHz

The QSC PowerLight 3 Series PL340 is designed for the most demanding live audio users, whether in touring rigs or fixed installations. The most requested features of the PowerLight 2 series have been upgraded to deliver "the ultimate analog amplifier", while the QSC DataPort ensures full compatibility with advanced digital processing and QSControl.net. Three models range in power from 1250 watts to 4000 watts per channel at two ohms, all in two-rack space chassis that are only 15.6" (40 cm) deep and 22 lb (10 kg). In addition to higher power, the PowerLight 3 Series offers higher input voltage, selectable sensitivity and easily adjusted rear panel switches with color coded LED indicators. For those users who simply want a high performance amplifier to go with their existing processor or console, the PowerLight 3 Series is an ideal choice, offering high power, excellent value and zero signal latency. When complete integration of amplifier control, monitoring and DSP is desired, the PowerLight 3 Series is fully compatible with the QSControl.net BASIS networked audio platform, with its comprehensive drag and drop DSP functionality. Simpler DSP requirements can be met with the DSP-4 processing module.

This highly refined, all-switchmode amplifier incorporates nearly 40 years of QSC engineering experience, resetting expectations for Class D audio quality. Reactive "back EMF" from the speaker is recycled to the power supply and unmatched "plug-to-plug" efficiency of 85% keeps AC power needs to a minimum, while delivering more energy to the speaker. Years of patient development have resulted in outstanding 20 Hz - 20 kHz audio performance, plus complete protection from normal hazards of the trade. Even simple features such as dependably silent, surge-free on-off switching indicate the special care taken to keep things safely under control.

For lower power applications, the PL340 offer the same feature set, matched to upgraded versions of QSC's most advanced linear amplifier platform. Recent advances in power supply capacitors further improve power and low-impedance performance, while continuing to offer the best available audio performance. As a result, designers have the choice of running a single type of amplifier throughout their rig, or matching amplifier performance to specific transducer types. In keeping with normal QSC design standards, back-to-front airflow provides up to twice as much long-term average power as most competitors, without dumping hot air into the rack. All PowerLight 3 models are built in the same chassis size, with common back panel layouts to facilitate easy racking and hookup.
