Q-See Presidio 16-Channel IP Security System, Halifax NVR with 2TB HDD & 16x 5MP Cavalier Bullet Cameras with Color Night Vision

SKU: QSH162K216

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Q-See Presidio Security System Specifications

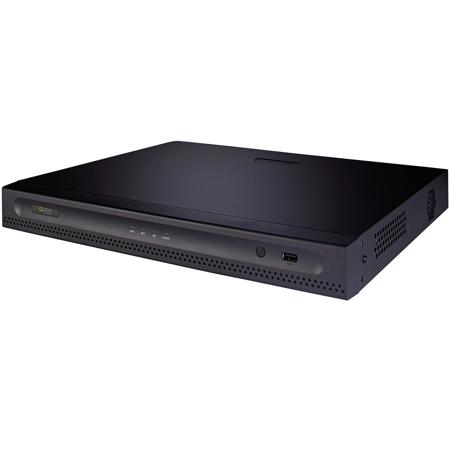

Halifax NVR

Halifax NVR

Jump to...
  • NVR Technology

    IP

  • Channels

    16

  • Recording Resolution

    4K, 5MP, 4MP, 3MP, 1080p, 720p

  • Live Viewing Resolution

    4K, 1080p, 1600x1200, 1280x1024, 720p

  • Live Display FPS

    Up to 30FPS

  • Hard Drive

    2 HDD's up to 8TB

  • Remote Monitoring

    128 Simultaneous Users

  • Camera Connectivity

    Presidio Series Cameras

  • IVA Smart Analytics

    Yes

Halifax NVR: Recording Resoyution

Jump to...
  • 4K (3820 x 2160)

    Up to 15FPS
    240FPS Total

  • 5MP (2592 x 1944)

    Up to 15FPS
    240FPS Total

  • 4MP (2560 x 1440)

    Up to 30FPS
    480FPS Total

  • 3MP (2304 x 1296)

    Up to 30FPS
    480FPS Total

  • 1080p (1920 x 1080)

    Up to 30FPS
    480FPS Total

  • 720p (1280 x 720)

    Up to 30FPS
    480FPS Total

Halifax NVR: System

Jump to...
  • Channels

    16 Simultaneous Local Playback

  • Video Compression

    H.265+, H.265, H.264

  • Display Modes

    1, 4, 8, 16, Auto Sequence

  • Recording Modes

    Manual, Time Schedule, Motion Detection

  • Backup Methods

    PC, USB Flash Drive, USB Hard Drive

  • Languages

    English, French, Spanis

Halifax NVR: Remote Monitoring

Jump to...
  • Scan 'N View

    Yes

  • Dual Stream

    1080p, 720p, D1, 4CIF, 2CIF, CIF

  • Simultaneous Users

    128 (Bandwidth Permitting)

Halifax NVR: Smart

Jump to...
  • People Counting

    Yes

  • Face Detection

    Yes

  • IVA Smart Analytics

    Abandon, Intrusion, Tripwire, Scene Change Detection, Audio Detection (1 IVA feature per channel)

Halifax NVR: Compatibility

Jump to...
  • Application Support

    Q-See Presidio

  • Mobile OS Support

    iOS, Android

  • Computer OS Support

    Windows (XP, Vista, 7, 8, 10), Mac OSX (10.7 and Newer)

  • Camera Support

    Presidio Series

Halifax NVR: Video, Audio, Alarm Ports

Jump to...
  • Video In

    RJ45 PoE - ONVIF 2.4 (16x)

  • Video Out

    HDMI (1x), VGA (1x)

  • Audio In

    RCA (x1)

  • Audio Out

    RCA (x1)

  • Alarm In

    4 Channels

  • Alarm Out

    1 Channel

Halifax NVR: Communication Ports

Jump to...
  • Network

    RJ45 10/100 Mbps (x1)

  • USB

    USB 2.0 (x1 Front), USB 3.0 (x1 Back)

  • eSATA

    No

Cavalier Camera

Jump to...
  • Camera Type

    Bullet Camera

  • Camera Technology

    IP

  • Image Sensor Size

    1/3"

  • Image Sensor Type

    Progressive CMOS

  • Megapixels (Digital)

    5 MP

  • Effective Pixels

    2592 x 1944

  • Lens Size

    4.0mm Fixed Lens

  • Field of View

    79.7 Degree Horz., 51.8 Degree Vert., 98 Degree Diag.

  • IR Cut Filter

    Yes

  • Max. User Access

    Up to 20 Users

  • Storage

    No Local Storage

Cavalier Camera: Night Vision

Jump to...
  • Night Vision Range

    Up to 98 ft (w/ IR On)

  • See Color Night Vision

    Yes (w/ Min. 0.002 Lux)

Cavalier Camera: Image

Jump to...
  • Video Compression

    H.265+, H.265, H.264

  • Wide Dynamic Range

    Yes

Cavalier Camera: Remote Monitoring

Jump to...
  • Use as Standalone

    Yes

  • Compatible Software

    Q-See Presidio

  • Compatible Mobile Devices

    Android, iPhone

  • Compatible Systems

    Presidio Series NVR's

Resolution & Frame Rate

Jump to...
  • 4K (3840 x 2160)

    Up to 15FPS

  • 1080p (1920 x 1080)

    Up to 30FPS

  • D1 (720 x 576)

    Up to 30FPS

Cavalier Camera: Power

Jump to...
  • Power Supply

    DC 12V 1A PoE

  • Power Consumption

    <=5.5 W

Cavalier Camera: Audio

Jump to...
  • Microphone

    No

  • Speaker

    No

Cavalier Camera: PTZ

Jump to...
  • Pan, Tilt, Zoom

    No

Cavalier Camera: Connectivity

Jump to...
  • Connector Types

    RJ-45 Ethernet 10/100 Mbps

  • Wireless

    No

Cavalier Camera: Physical

Jump to...
  • Weatherproof

    Yes

  • IP Rating

    IP67

  • Body Construction

    Plastic

  • Mounting Hardware

    Screws (Wall or Ceiling Mount)

  • Operating Temperature

    -22 Degree to 140 Degree F

  • Dimensions

    6.4 x 2.5 x 2.5" (16.2 x 6.3 x 6.3cm)

  • Weight

    0.99 lb (450g)

  • UPC Code

    645439265653

About Q-See Presidio Security System

Let Q-See's Presidio series fortify your surveillance with 5MP IP technology you can trust. Our cutting-edge, easy to install, system can be monitored from anywhere with the Q-See Presidio App (available for iOS and Android). With 5MP HD resolution, this 16-Channel, 16 camera kit is ideal for any home.

With the new Q-See Presidio App, it s never been easier to check in on your home. The app supports multiple users, allowing your whole family to view your home at the same time. With over the air updates and other mobile features, you ll spend less time using the NVR and more time on your smartphone or tablet.

The included sixteen Cavalier 5MP IP HD cameras provide you with 100ft of color night vision in ambient light and can be placed indoors or outdoors (IP67 Rated). These features give you the option to place the cameras where you need it most.

The included 2TB hard drive records up to 20 days (when recording on motion and H.265) continuously, giving you the comfort of knowing that any incident that happens while you re away is saved to the hard drive. Simply save the incident on your phone via our New Q-See Presidio App.

Delivering reassurance through technology.

Presidio 5MP HD Security

See Color Night Vision
These 5MP HD cameras provide you with the choice of black and white or Color Night Vision recording. In black and white mode, enjoy up to 100ft of night vision recording. If the cameras are installed in an area with light such as a street light, you can manually switch the cameras to Color Night Vision via the NVR, giving you a brighter image.

Motion Detection
With motion detection, our Presidio system alerts you immediately via mobile app. You can't always be there when you children get home from school; with motion detection, you'll receive a push notification alerting you the moment they're home safe and sound. Always have an eye on what matters most, 24/7.

Weather Resistant
Indoor or outdoor, these cameras are ready for action! Rated for IP67 weather-resistance, these versatile cameras can be mounted and used safely for multiple weather conditions. Extreme weather compatibility: From Mount Whitney to Death Valley, we have you covered. Camera operating temperatures from -22 Degree to 140 Degree F.

Power Over Ethernet (PoE)
Q-See IP HD technology features Power over Ethernet (PoE) access for your IP products. Easy installation and setup enables you to use one cable for both your digital video signal and power connections. PoE connectivity greatly simplifies long-range surveillance of your home - simply add additional cameras to spare PoE ports on your NVR and double your security coverage.

Q-See Presidio Security System Features

  • Halifax NVR Features
  • Stunning 4K Resolution for pristine images and heightened security
  • 265 Video Compression Support - Offers reduced file sizes up to 50%, optimized video and bandwidth reductions. Save on data, record more video! (H.265 Camera required)
  • 2TB Western Digital Purple Hard Drive - Continuously record up to 20 days. Q-See proudly uses WD Purple Hard Drives, engineered specifically for the extreme demands of high temperature, 24/7 surveillance systems.
  • PoE (Power over Ethernet) compatible ports providing video and power over a single Ethernet cable
  • 4K Video Output - View live HD sources with a compatible 4K TV
  • Remote Monitoring through multiple devices including: Windows/Mac, iOS Devices and Android Devices (iOS 10.6 or higher / Android 5.0 or Higher).
  • Smart Search - Review your security footage in a short recap video compiled of all the day's occurrences
  • Dual video outputs (HDMI/VGA) to connect multiple displays
  • Instant notifications on all VCA alerts
  • Personalize your NVR: Multi-streaming compatibility to conserve bandwidth. Continuous, user scheduled and motion-based recording options
  • ONVIF Profile T (2.4)
  • Cavalier Cameras Features
  • 5MP High definition image sensor provides 2.5 TIMES the resolution of 1080P for a stunning image and clarity.
  • H.265 Video Compression Support - Offers reduced file sizes up to 50%! Save on data, record more video!
  • 4mm Camera Lens provides a wide angle 80 Degree field of view
  • Stunning Color Night Vision capable of viewing up to 100 ft. in ambient light
  • IP67 Weatherproof Rated for Indoor or Outdoor use
  • PoE (Power Over Ethernet) - Cameras can connect directly to an NVR or be offsite via network connection with only one cord.
  • IR Cut Filter designed to give optimal color for day and nighttime recording
  • DWDR / BLC / HLC - Optimized compensations and ranges for the absolute best in focus and picture clarity
  • Auto/Manual Gain Control and Electronic Shutter for superior color accuracy and sharp images
  • Extreme weather compatibility: From Mount Whitney to Death Valley, we have you covered. Camera operating temperatures from -22 Degree to 140 Degree F
  • Flexible and easy installation via Network (Ethernet) cables with PoE (Power over Ethernet) support
  • Ceiling and wall mountable with included hardware

Key Features

  • Halifax NVR Highlights
  • Stunning 4K Resolution for pristine images and heightened security
  • PoE (Power over Ethernet) compatible ports providing video and power over a single Ethernet cable
  • 4K Video Output - View live HD sources with a compatible 4K TV
  • Cavalier Cameras Highlights
  • 5MP HD image sensor provides 2.5 TIMES the resolution of 1080P for a stunning image and clarity

What's in the box:

  • Halifax 16-Channel 5MP HD NVR
  • 2TB Hard Drive (Pre-Installed)
  • 16x Cavalier 5MP IP HD Bullet Cameras
  • 16x 100ft UL Approved CAT5e Cables
  • NVR USB Mouse
  • HDMI Cable
  • Mounting Hardware
  • Quick Start Guide
  • Q-See 2 Year Warranty
