Q-See Presidio 8-Channel IP Security System, Knox NVR with 2TB Hard Drive & 8x 4K Ultra HD Archer Bullet Cameras with Color Night Vision

SKU: QSK82K18

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Q-See Presidio Security System Specifications

Knox NVR

Knox NVR

Jump to...
  • NVR Technology

    IP

  • Channels

    8

  • Recording Resolution

    4K, 5MP, 4MP, 3MP, 1080p, 720p

  • Live Viewing Resolution

    4K, 1080p, 1600x1200, 1280x1024, 720p

  • Live Display FPS

    Up to 30FPS

  • Hard Drive

    1 HDD's up to 8TB

  • Remote Monitoring

    128 Simultaneous Users

  • Camera Connectivity

    Presidio Series Cameras

  • IVA Smart Analytics

    Yes

Knox NVR: Recording Resoyution

Jump to...
  • 4K (3820 x 2160)

    Up to 15FPS
    120FPS Total

  • 5MP (2592 x 1944)

    Up to 15FPS
    120FPS Total

  • 4MP (2560 x 1440)

    Up to 30FPS
    240FPS Total

  • 3MP (2304 x 1296)

    Up to 30FPS
    240FPS Total

  • 1080p (1920 x 1080)

    Up to 30FPS
    240FPS Total

  • 720p (1280 x 720)

    Up to 30FPS
    240FPS Total

Knox NVR: System

Jump to...
  • Channels

    8 Simultaneous Local Playback

  • Video Compression

    H.265+, H.265, H.264

  • Display Modes

    1, 4, 8 Auto Sequence

  • Recording Modes

    Manual, Time Schedule, Motion Detection

  • Backup Methods

    PC, USB Flash Drive, USB Hard Drive

  • Languages

    English, French, Spanis

Knox NVR: Remote Monitoring

Jump to...
  • Scan 'N View

    Yes

  • Dual Stream

    1080p, 720p, D1, 4CIF, 2CIF, CIF

  • Simultaneous Users

    128 (Bandwidth Permitting)

Knox NVR: Smart

Jump to...
  • People Counting

    Yes

  • Face Detection

    Yes

  • IVA Smart Analytics

    Abandon, Intrusion, Tripwire, Scene Change Detection, Audio Detection (1 IVA feature per channel)

Knox NVR: Compatibility

Jump to...
  • Application Support

    Q-See Presidio

  • Mobile OS Support

    iOS, Android

  • Computer OS Support

    Windows (XP, Vista, 7, 8, 10), Mac OSX (10.7 and Newer)

  • Camera Support

    Presidio Series

Knox NVR: Video, Audio, Alarm Ports

Jump to...
  • Video In

    RJ45 PoE - ONVIF 2.4 (16x)

  • Video Out

    HDMI (1x), VGA (1x)

  • Audio In

    RCA (x1)

  • Audio Out

    RCA (x1)

  • Alarm In

    No

  • Alarm Out

    No

Knox NVR: Communication Ports

Jump to...
  • Network

    RJ45 10/100 Mbps (x1)

  • USB

    USB 2.0 (x2)

  • eSATA

    No

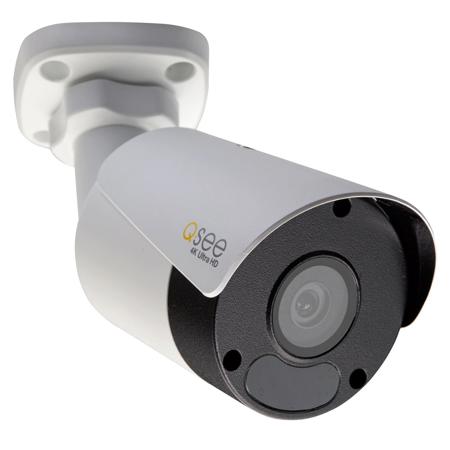

Archer Cameras

Jump to...
  • Camera Type

    Bullet Camera

  • Camera Technology

    IP

  • Image Sensor Size

    1/2.5"

  • Image Sensor Type

    Progressive CMOS

  • Megapixels (Digital)

    8 MP

  • Effective Pixels

    3840 x 2160

  • Lens Size

    4.0mm Fixed Lens

  • Field of View

    91.6 Degree Horz., 47.2 Degree Vert., 112.7 Degree Diag.

  • IR Cut Filter

    Yes

  • Max. User Access

    Up to 20 Users

  • Storage

    No Local Storage

Archer Cameras: Night Vision

Jump to...
  • Night Vision Range

    Up to 98 ft (w/ IR On)

  • See Color Night Vision

    Yes (w/ Min. 0.001 Lux)

Archer Cameras: Image

Jump to...
  • Video Compression

    H.265+, H.265, H.264

  • Wide Dynamic Range

    Up to 120 dB WDR

Archer Cameras: Remote Monitoring

Jump to...
  • Use as Standalone

    Yes

  • Compatible Software

    Q-See Presidio

  • Compatible Mobile Devices

    Android, iPhone

  • Compatible Systems

    Presidio Series NVR's

Archer Cameras: Resolution & Frame Rate

Jump to...
  • 4K (3840 x 2160)

    Up to 15FPS

  • 1080p (1920 x 1080)

    Up to 30FPS

  • D1 (720 x 576)

    Up to 30FPS

Archer Cameras: Power

Jump to...
  • Power Supply

    DC 12V 1A PoE

  • Power Consumption

    <=6.4 W

Archer Cameras: Smart

Jump to...
  • People Counting

    Yes

  • Face Detection

    Yes

  • IVA Smart Analytics

    Abandon, Intrusion, Tripwire, Scene Change Detection

Archer Cameras: Audio

Jump to...
  • Microphone

    No

  • Speaker

    No

Archer Cameras: PTZ

Jump to...
  • Pan, Tilt, Zoom

    No

Archer Cameras: Connectivity

Jump to...
  • Connector Types

    RJ-45 Ethernet 10/100 Mbps

  • Wireless

    No

Archer Cameras: Physical

Jump to...
  • Weatherproof

    Yes

  • IP Rating

    IP67

  • Body Construction

    Plastic

  • Mounting Hardware

    Screws (Wall or Ceiling Mount)

  • Operating Temperature

    -22 Degree to 140 Degree F

  • Dimensions

    7.1 x 2.6 x 2.1" (18.03 x 6.6 x 5.3cm)

  • Weight

    0.99 lb (450g)

  • UPC Code

    645439264212

About Q-See Presidio Security System

Let Q-See's Presidio series fortify your surveillance with 4K IP technology you can trust. Our cutting-edge, easy to install, system can be monitored from anywhere with the Q-See Presidio App (available for iOS and Android). With 4K Ultra HD resolution, this 8-Channel, 8 camera kit is ideal for any home.

With the new Q-See Presidio App, it s never been easier to check in on your home. The app supports multiple users, allowing your whole family to view your home at the same time. With over the air updates and other mobile features, you ll spend less time using the NVR and more time on your smartphone or tablet.

The included eight Archer 4K (8MP) Ultra HD IP cameras provide you with 100ft of color night vision in ambient light and can be placed indoors or outdoors (IP67 Rated). These features give you the option to place the cameras where you need it most.

The included 2TB hard drive records up to 20 days (when recording on motion and H.265) continuously, giving you the comfort of knowing that any incident that happens while you re away is saved to the hard drive. Simply save the incident on your phone via our New Q-See Presidio App.

Delivering reassurance through technology.

Q-See Presidio Security System Features

  • Knox NVR Features
  • Stunning 4K Resolution for pristine images and heightened security
  • 265 Video Compression Support - Offers reduced file sizes up to 50%, optimized video and bandwidth reductions. Save on data, record more video! (H.265 Camera required)
  • 2TB Western Digital Purple Hard Drive - Continuously record up to 20 days. Q-See proudly uses WD Purple Hard Drives, engineered specifically for the extreme demands of high temperature, 24/7 surveillance systems.
  • PoE (Power over Ethernet) compatible ports providing video and power over a single Ethernet cable
  • 4K Video Output - View live HD sources with a compatible 4K TV
  • Remote Monitoring through multiple devices including: Windows/Mac, iOS Devices and Android Devices.
  • Smart Search - Review your security footage in a short recap video compiled of all the day's occurrences
  • Dual video outputs (HDMI/VGA) to connect multiple displays
  • Instant notifications on all VCA alerts
  • Personalize your NVR: Multi-streaming compatibility to conserve bandwidth. Continuous, user scheduled and motion-based recording options
  • ONVIF
  • Archer Cameras Features
  • 4K Ultra-High Definition image sensor provides 4X the resolution of 1080P
  • Video Camera Analytics (VCA) - Provides added features including; Behavior Detection, Intrusion, facial detection, People counter, line crossing and much more
  • Offers reduced file sizes up to 50%. Save on data, record more video - H.265+ Compression
  • Wide angle 112.7 Degree field of view and 4mm Camera Lens
  • A full 1/2.5" Image Sensor allowing for high frames in outdoor moving conditions
  • Stunning Color Night Vision capable of viewing up to 100ft in ambient light
  • IP67 Rated for Indoor or Outdoor Weatherproofing
  • PoE (Power Over Ethernet) - Cameras can connect directly to an NVR or be offsite via network connection with only one cord.
  • IR Cut Filter designed to give optimal color for day and nighttime recording
  • DWDR / BLC / HLC - Optimized compensations and ranges for the absolute best in focus and picture clarity
  • Extreme weather compatibility: From Mount Whitney to Death Valley, we have you covered. Camera operating temperatures from -22 Degree to 140 Degree F
  • Ceiling and wall mountable with included hardware

Key Features

  • Knox NVR Highlights
  • Stunning 4K Resolution for pristine images and heightened security
  • PoE (Power over Ethernet) compatible ports providing video and power over a single Ethernet cable
  • 4K Video Output - View live HD sources with a compatible 4K TV
  • Archer Cameras Highlights
  • 4K Ultra-High Definition image sensor provides 4X the resolution of 1080P

What's in the box:

  • Knox 8-Channel 4K Ultra HD NVR
  • 2TB Western Digital Hard Drive (Pre-Installed)
  • 8x Archer 4K IP HD Bullet Cameras
  • 8x 100ft UL Approved CAT5e Cables
  • NVR USB Mouse
  • HDMI Cable
  • Mounting Hardware
  • Quick Start Guide
  • Q-See 2 Year Warranty
