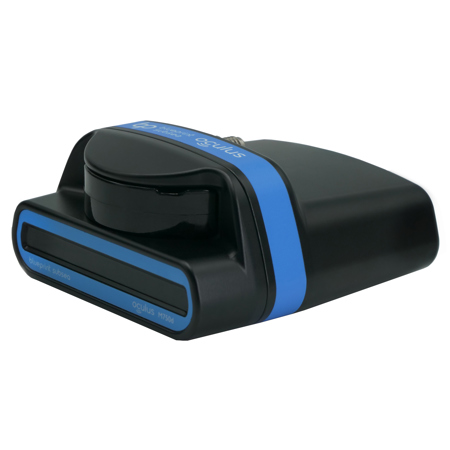

Qysea M750d 2D Imaging Sonar for FIFISH W6 Version Drone

SKU: QY2DIMGSONAR MFR: 2D IMAGE SONAR
Earn VIP Reward Points

Key Features

  • Enhance your FIFISH W6 Drone with the Qysea 2D Imaging Sonar for detailed underwater scans.
  • Achieve superior underwater imaging with a 750kHz-1200kHz operating frequency sonar for your drone.
  • Explore depths up to 984' with this robust, anodized aluminum sonar, designed for the FIFISH W6.
  • Get precise scans with the sonar's impressive 0.16"/0.1" resolution, perfect for detailed inspections.
  • Capture smooth footage with a 40Hz update rate, ensuring real-time imaging with your FIFISH W6 drone.
  • Experience wide coverage with the sonar's 130°/70° horizontal aperture for comprehensive surveys.
See More Product Details
Special Order?Estimated to Ship: 08/15/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Qysea 2D Image Sonar Specifications

Mechanical

Mechanical

Jump to...
  • Compatiblity

    FIFISH W6 Version Drone

  • Construction

    Anodised Aliminium

  • Depth Rating

    984' (300m)

  • Temperature Range

    Operating: 23 to 95 Degree F (-5 to 35 Degree C)
    Storage: -4 to 122 Degree F (-20 to 50 Degree C)

  • Dimensions (L x W x H)

    4.94 x 4.80 x 2.44" (125 x 122 x 62mm)

  • Weight

    Air: 34.5 oz (980g)
    Water: 12.7 oz (360g)

Performance

Jump to...
  • Operating Frequency

    Min: 750kHz
    Max: 1200kHz

  • Range

    Maximum: 393'/131.2' (120m/40m)
    Minimum: 0.3' (0.1m)

  • Range Resolution

    0.16"/0.1" (4mm/2.5mm)

  • Update Rate

    40Hz

  • Horizontal Aperture

    130 Degree/70 Degree

  • Vertical Aperture

    20 Degree/12 Degree

  • Number of Beams

    Max: 512

  • Angular Resolution

    1 Degree/0.6 Degree

  • Beam Seperation

    0.25 Degree/0.25 Degree

  • UPC Code

    761700443480

About Qysea 2D Image Sonar

The 2D image sonar equipment can be integrated into the FIFISH W6 Version Drone, providing the operator the ability to perform, scan and inspect underwater environments in dark and turbid conditions. Get detailed visual data of the surrounding seabed areas and operate the oceans with great stability and efficiency.

Qysea 2D Image Sonar Features

  • Anodised Aluminum Construction
  • 750KHz/1.2MHz Frequency
  • 984' Depth Rating
  • Compatible for FIFISH W6 Version Drone

Key Features

  • Enhance your FIFISH W6 Drone with the Qysea 2D Imaging Sonar for detailed underwater scans.
  • Achieve superior underwater imaging with a 750kHz-1200kHz operating frequency sonar for your drone.
  • Explore depths up to 984' with this robust, anodized aluminum sonar, designed for the FIFISH W6.
  • Get precise scans with the sonar's impressive 0.16"/0.1" resolution, perfect for detailed inspections.
  • Capture smooth footage with a 40Hz update rate, ensuring real-time imaging with your FIFISH W6 drone.
  • Experience wide coverage with the sonar's 130°/70° horizontal aperture for comprehensive surveys.

What's in the box:

  • Qysea M750d 2D Imaging Sonar
  • Aluminum Alloy Bracket
  • Converter Module
  • 1 Year Limited Warranty
