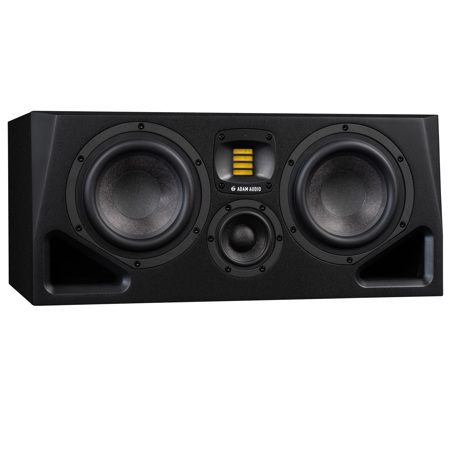

Adam Audio A77H Horizontal 7" 340W Powered Active 3-Way Studio Monitor

SKU: AD77H MFR: 12106600
Earn VIP Reward Points

Key Features

  • Experience superior sound quality with this Adam Audio studio monitor's exceptional clarity.
  • Achieve precise audio mixing with the flat frequency response of these studio monitors.
  • Pinpoint accurate imaging ensures a detailed soundstage for critical listening sessions.
  • Unleash powerful audio with 340W of power output, perfect for demanding studio work.
  • Versatile connectivity via XLR and RCA inputs integrates seamlessly into your setup.
  • Optimize your monitoring with advanced room adaptation, tailoring sound to your space.
See More Product Details

Product Options

Special Order?Estimated to Ship: 08/07/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Adam Audio A77H Specifications

General

General

Jump to...
  • Display

    Front panel multi-color LED

  • Material

    Cabinet: Vinyl wrapped MDF and painted MDF front panel

  • Cabinet Design

    Dual front ported

  • Mounting options

    Threaded inserts on the bottom of the cabinet (4 x M8)

  • AC Input Voltage

    100 - 240 V, 50/60 Hz

  • Power Rating

    500 W max.

  • Operating Conditions

    +14 Degree F to +113 Degree F (-10 Degree C to +45 Degree C); <75 % RH, non-condensing

Audio Input Connectors

Jump to...
  • Analog

    XLR, RCA

  • Input Impedance

    9 kOhm / 3.3 kOhm

  • Max. Input Level

    +19 dBu

Amplification

Jump to...
  • Woofer

    Amplifier Type: PWM
    Peak (10% THD, limiter deactivated)250 W
    RMS (1% THD, limiter deactivated): 200 W

  • Midrange

    Amplifier Type: Class A/B
    Peak (10% THD, limiter deactivated): 70 W
    RMS (1% THD, limiter deactivated): 55 W

  • Tweeter

    Amplifier Type: Class A/B
    Peak (10% THD, limiter deactivated): 20 W
    RMS (1% THD, limiter deactivated): 15 W

Control Options (via Network)

Jump to...
  • Networking Connector

    RJ45

  • Connection Type

    Ethernet

  • Communication Protocol

    OCA using standard IP data

  • Control Software

    A Control (Windows and MacOS available)

  • Room Adaption Options

    Backplate, Extended, Sonarworks SoundID Reference integration

  • Advanced Room Adaptation

    6 x PEQ, Level, Delay

  • Third-party Calibration Compatibility

    Import from Sonarworks SoundID Reference

Acoustics

Jump to...
  • Crossover Frequencies

    400 Hz, 3.0 kHz

Drivers

Jump to...
  • Woofer

    Basket Diameter: 2 x 7" (5.08 x 17.78cm)
    Voice Coil Diameter: 1.5" (38mm)
    Cone Material: MLM

  • Midrange

    Type: Dome Cone Hybrid (DCH)
    Basket Diameter: 3.5" (8.89cm)
    Voice Coil Diameter: 1.3" (33mm)
    Cone Material: MLM

  • Tweeter

    Type: X-ART
    Diaphragm Area: 4" (2420mm)
    Equivalent Diaphragm Diameter: 2" (56mm)
    Velocity Transform Ratio: 4 to 1
    Diaphragm Weight: 0.0059 oz (0.17g)
    Waveguide: HPS (rotatable)
    Waveguide Dispersion: 120° horizontal, 70° vertical

Signal Processing

Jump to...
  • AD converter

    24-bit

  • Internal sample rate

    96 kHz

  • Delay range, resolution

    0 - 10 ms, 0.1 ms

  • Protection

    Independent peak and thermo limiters for each driver, and amplifier thermo limiters

Control Options (via Backplate)

Jump to...
  • Input Sensitivity

    0 dBu = 100 dB SPL at 1 m @ 0 dB level setting

  • Level

    -12 dB to +12 dB

  • Input Selection

    Balanced, unbalanced

  • Voicings

    Pure, UNR

  • Room Adaption

    Bass: +2, 0, -2, -4 dB
    Desk: 0, -2, -4 dB
    Presence: +1, 0, -1 dB
    Treble: +1.5, 0, -1.5 dB

Physical

Jump to...
  • Dimensions (H x W x D)

    9.25 x 20.87 x 13.75" (236 x 531 x 350mm)

  • Weight

    37.6 lbs (17.1kg)

  • UPC Code

    4260113134719

About Adam Audio A77H

While the A77H Horizontal 7" 340W Powered Active 3-Way Studio Monitor is a true midfield monitor, it's much more than that. It's a testament to ADAM Audio's commitment to innovation in loudspeaker technology, delivering a rich, spacious, and enveloping sound that sets it apart from the competition.

This studio monitor features two 7-inch woofers, a midrange driver, and ADAM Audio's proprietary X-ART tweeter, offering an ultra-wide frequency range that captures every nuance of sound. The inclusion of a midrange driver specifically targets the most sensitive range of human hearing, ensuring crystal clear audio reproduction.

The A77H is equipped with rotatable HPS waveguide technology and onboard DSP, allowing for precise sound tuning to meet your specific needs. The HPS waveguide, constructed from a new glass fiber polymer compound, works in harmony with the X-ART tweeter to disperse sound consistently throughout your space.

In addition, the A77H boasts a bass reflex system, new A Series cabinets that build on the legacy of ADAM Audio and the AX Series, and a hybrid amplification system that combines the best of digital and analog worlds. The monitor also features a multi-layer mineral woofer (MLM) and a midrange driver, both developed using the latest materials and design processes for superior performance.

The A77H also offers a unique feature in the form of automated room correction with Sonarworks, a solution that runs directly on the DSP of A Series monitors. This, along with the four bands of room adaptation equalization found on the back panel, allows for optimal sound in any environment.

Finally, the A77H offers two pre-defined sound profiles or "voicings" - "UNR" and "Pure", and its DSP-based functionality can be controlled remotely and in real time over ethernet using A Control software.

In summary, the A77H Horizontal 7" 340W Powered Active 3-Way Studio Monitor is a state-of-the-art audio solution that delivers unparalleled sound quality, flexibility, and control.

Adam Audio A77H Features

  • German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
  • 3.5" DCH Midrange Driver
  • 2 x 7" Woofer (Multi-Layer Mineral)
  • Cumulated Amp. Power Peak: 340 W

Warranty Information

This product has a limited warranty of 24 months for parts and 60 months for labor.

Key Features

  • Experience superior sound quality with this Adam Audio studio monitor's exceptional clarity.
  • Achieve precise audio mixing with the flat frequency response of these studio monitors.
  • Pinpoint accurate imaging ensures a detailed soundstage for critical listening sessions.
  • Unleash powerful audio with 340W of power output, perfect for demanding studio work.
  • Versatile connectivity via XLR and RCA inputs integrates seamlessly into your setup.
  • Optimize your monitoring with advanced room adaptation, tailoring sound to your space.

What's in the box:

  • Adam Audio A77H Horizontal 7" 340W Powered Active 3-Way Studio Monitor
  • Power Cable
  • Quick Start Guide
  • Adam Audio 2 Year Limited Warranty (3 Year Extended Warranty with Registration)
