Asus ROG Strix X570-E AMD AM4 ATX Gaming Motherboard with PCIe 4.0
See all Asus items

ASUS ROG Strix X570-E AMD AM4 ATX Gaming Motherboard with PCIe 4.0

SKU: AS90MB1150M0

This item is no longer available.

Recommended Alternatives

Asus Pro B660M-C D4-CSM: Picture 1 regular
ASUS Pro B660M-C D4-CSM Intel Socket LGA1700 Micro-ATX Commercial Motherboard
$144.99
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : No reviews??
Alex K : What is the best pc4 processor for this board ?
Raven C : Is it the ROG X570-E? Why is there no image attached to it, and no reviewers either...?

Reviews about this item

Review Summary

2021-04-28T17:52:20

Rated 5 out of 5

Great service

It took a while to get here , but when it was shipped it got here quick , and intact. Adorama also kept the price at MSRP. Really satisfied!

ALBERTO R.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

ASUS ROG Strix X570-E Specifications

  • CPU

    AMD AM4 Socket 3rd and 2nd Gen AMD Ryzen/3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors

  • Chipset

    AMD X570

  • Memory

    3rd Gen AMD Ryzen Processors:
    4x DIMM, Max. 128GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

    2nd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors:
    4x DIMM, Max. 128GB, DDR4 3600(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory

  • Memory (Contd.)

    2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors:
    4x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory
    Dual Channel Memory Architecture

  • Graphic

    Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    Multi-VGA output support : HDMI/DisplayPort ports
    Supports HDMI 2.0b with maximum resolution of 4096x 2160 @ 60 Hz
    Supports DisplayPort 1.2 with max. resolution 4096x 2160 @ 60 Hz

  • Multi-GPU Support

    3rd and 2nd Gen AMD Ryzen Processors:
    Supports NVIDIA 2-Way SLI Technology
    Supports AMD 3-Way CrossFireX Technology

    2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors:
    Supports AMD 2-Way CrossFireX Technology

  • Expansion Slots

    3rd Gen AMD Ryzen Processors:
    2x PCIe 4.0 x16 (x16 or dual x8)

    2nd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors:
    2x PCIe 3.0 x16 (x16 or dual x8)

    2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors:
    1x PCIe 3.0 x16 (x8 mode)

    AMD X570 chipset:
    1x PCIe 4.0 x16 (max at x4 mode)
    2x PCIe 4.0 x1

  • Storage

    3rd Gen AMD Ryzen Processors:
    1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support

    2nd Gen AMD Ryzen/3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors:
    1x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

  • Storage (Contd.)

    AMD X570 chipset:
    1x M.2 x4 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support
    8x SATA 6Gb/s port(s)
    Support Raid 0, 1, 10

  • LAN

    Intel I211-AT, 1x Gigabit LAN Controller(s)
    Realtek RTL8125-CG 2.5G LAN
    Anti-surge LANGuard
    ROG GameFirst Technology

  • Wireless Data Network

    Supports channel bandwidth: HT20/HT40/HT80/HT160
    Intel Wi-Fi 6 AX200
    2x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz
    Up to 2.4Gbps transfer speed

  • Bluetooth

    Bluetooth 5.0

  • Audio

    SupremeFX 8-Channel High Definition Audio CODEC S1220A:
    Dual OP Amplifiers
    Impedance sense for front and rear headphone outputs
    Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
    High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
    SupremeFX Shielding Technology
    Supports up to 32-Bit/192kHz playback

  • Audio (Contd.)

    Audio Feature:
    Optical S/PDIF out port(s) at back panel
    Sonic Radar III
    Sonic Studio III + Sonic Studio Link

  • USB Ports

    3rd Gen AMD RyzenTM Processors:
    4x USB 3.2 Gen 2 port(s) (4 at back panel, )

    2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors :
    4x USB 3.2 Gen 1 port(s)

    AMD X570 chipset:
    1x USB 3.2 Gen 2 front panel connector port(s)

    AMD X570 chipset:
    4x USB 3.2 Gen 2 port(s) (4 at back panel, , 3x Type-A+1x Type-C)

    AMD X570 chipset :
    2x USB 3.2 Gen 1 port(s) (2 at mid-board)

  • USB Ports (Contd.)

    AMD X570 chipset:
    4x USB 2.0 port(s) (4 at mid-board)

  • ROG Exclusive Features

    ROG Exclusive Software
    RAMCache III
    CPU-Z
    GameFirst V
    Sonic Studio III + Sonic Studio Link
    Sonic Radar III
    Overwolf

  • Special Features

    5-Way Optimization by Dual Intelligent Processors 5:
    Whole system optimization with a single click! 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Xpert 4, and Turbo App together, providing better CPU performance, efficient power saving, precise digital power control, whole system cooling and even tailor your own app usages.

    TPU:
    Auto Tuning, TurboV, GPU Boost

  • Special Features (Contd.)

    Gamer's Guardian:
    DRAM Overcurrent Protection
    Stainless Steel Back I/O
    Highly Durable Components
    DIGI+ VRM
    SafeSlot
    ESD Guards on LAN, Audio,and USB ports

    Asus EPU:
    EPU

    AURA:
    Aura Lighting Control
    Addressable Gen 2 Header

    Asus Exclusive Features:
    USB BIOS FlashBack
    AI Suite 3
    Ai Charger
    Asus NODE: hardware control interface
    BIOS FlashBack Button

  • Special Features (Contd..)

    Asus EZ DIY:
    Asus CrashFree BIOS 3
    Asus EZ Flash 3

    Asus Q-Design:
    Asus Q-Code
    Asus Q-LED (CPU, DRAM, VGA, Boot Device LED)
    Asus Q-Slot
    Asus Q-DIMM

    Gaming Aesthetics:
    AURA-RGB Lighting

  • Back I/O Ports

    1x DisplayPort
    1x HDMI
    1x Optical S/PDIF out
    5x Audio jack(s)
    1x Anti-surge 2.5G LAN (RJ45) port
    1x USB BIOS FlashBack Button(s)
    1x Asus Wi-Fi Module
    7x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A)
    1x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)
    Anti-surge LAN (RJ45) port

  • Internal I/O Ports

    1x PCH_FAN
    1x AAFP connector
    2x Aura RGB Strip Header(s)
    2x Addressable Gen 2 header(s)
    2x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    2x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support
    1x SPI TPM header
    8x SATA 6Gb/s connector(s)
    1x CPU Fan connector(s)
    1x CPU OPT Fan connector(s)
    2x Chassis Fan connector(s)
    1x AIO_PUMP connector

  • Internal I/O Ports (Contd.)

    1x W_PUMP+ connector
    1x 24-pin EATX Power connector(s)
    1x 8-pin ATX 12V Power connector(s)
    1x 4-pin ATX 12V Power connector(s)
    1x Front panel audio connector(s) (AAFP)
    1x Thermal sensor connector(s)
    1x Clear CMOS jumper(s)
    1x Node Connector(s)
    1x System panel connector

  • Internal I/O Ports (Contd..)

    1x T_Sensor Connector
    1x M.2 Fan Header
    1x USB 3.2 Gen 2 (up to 10Gbps) connector
    1x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

  • BIOS

    256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2.

  • Manageability

    WOL, PXE

  • Support Disc

    Overwolf
    Anti-virus software (OEM version)
    WinRAR

  • Operating System

    Windows 10 64-bit

  • Dimensions

    ATX Form Factor
    12x 9.6" ( 30.5x 24.4cm)

  • UPC Code

    192876380512

About ASUS ROG Strix X570-E

FEATURED REVIEWS

Great service

By ALBERTO R.

It took a while to get here , but when it was shipped it got here quick , and intact. Adorama also kept the price at MSRP. Really satisfied!

Power Design
Digital power control and an array of power stages ensures ROG Strix X570-E Gaming has the muscle to control the latest AMD Ryzen CPUs. ProCool II sockets are built to tight specifications to ensure flush contact with the PSU power lines and have a metal armour for improved heat dissipation.

Dual PCIE 4.0 M.2
Dual PCIe 4.0 M.2 slots support up to type 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the 3rd Gen AMD Ryzen platform.

Armoury Crate
Armoury Crate is a new software utility designed to give you centralized control of supported ROG gaming products. Armoury Crate lets you easily customize RGB lighting and effects for every compatible device in your arsenal and synchronize them with Aura Sync for unified system lighting effects.

Next-Gen Connectivity
ROG Strix X570-E Gaming amps up networking with 2.5G Ethernet and next-gen Intel Wi-Fi 6 (802.11ax) that surpasses gigabit speeds to take your LAN to the next level. With ROG GameFirst software that offers multi-gate teaming, you'll enjoy the very best online gaming experience.

DIY Friendly
ROG's pantented I/O shield is finished in sleek matte black and comes pre-mounted to make it easy to install the motherboard. Also featuring SafeSlot which provides stronger PCIe device retention and greater shearing resistnce.

Outshine the Competition
Asus Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips connected to the onboard RGB header - and it can all be synced with an ever-growing portfolio of Aura-capable Asus hardware.

ASUS ROG Strix X570-E Features

  • AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen processors
  • Aura Sync RGB lighting, including RGB headers and addressable Gen 2 GRB headers
  • 12+4 power stages with ProCool II power connector, alloy chokes & durable capacitors
  • Active chipset heatsink, MOS heatsink with 8mm heatpipe, dual on-board M.2 heatsinks
  • Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and features dual M.2 and USB 3.2
  • 2.5Gbps LAN and Intel Gigabit Ethernet with Asus LANGuard, Wi-Fi 6 (802.11ax) MU-MIMO
  • Automated system-wide tuning, providing overclocking and cooling profiles
  • High fidelity audio with SupremeFX S1220A, DTS Sound Unbound and Sonic Studio III
  • ROG-patented pre-mounted I/O shield, Asus SafeSlot, Asus Node connector
  • With up to two M.2 Drives, USB 3.2 Gen2 and AMD StoreMI

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen processors
  • Aura Sync RGB lighting, including RGB headers and addressable Gen 2 GRB headers
  • 12+4 power stages with ProCool II power connector, alloy chokes & durable capacitors
  • Active chipset heatsink, MOS heatsink with 8mm heatpipe, dual on-board M.2 heatsinks
  • Supports PCIe 4.0, HDMI 2.0, DisplayPort 1.2 and features dual M.2 and USB 3.2
  • 2.5Gbps LAN and Intel Gigabit Ethernet with Asus LANGuard, Wi-Fi 6 (802.11ax) MU-MIMO

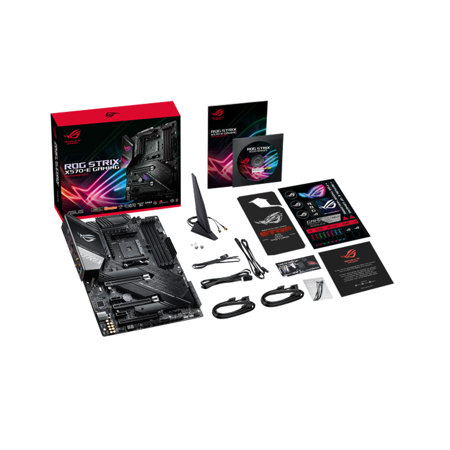

What's in the box:

  • ROG Strix X570-E ATX Gaming Motherboard
  • 4x SATA 6Gb/s Cable
  • M.2 Screws
  • Supporting DVD
  • Strix Door Hanger
  • ROG Strix Stickers
  • Cable Ties
  • Wi-Fi Antenna
  • Extension Cable for RGB strips (80cm)
  • Extension Cable for Addressable LED
  • Thermistor Cable(s)
  • User Manual
  • Asus 3 Year Limited Warranty
