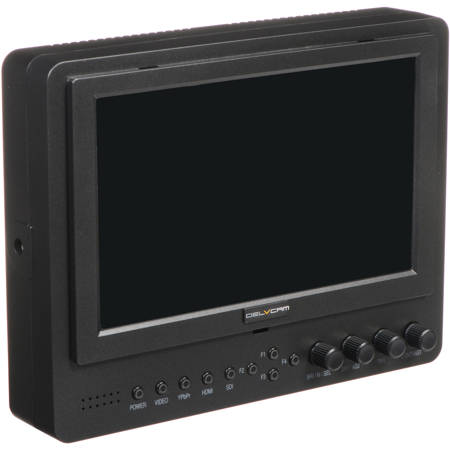

Delvcam DELV-SDI-7 7" 3G-SDI Camera-Top LED Monitor with Advanced Function, 1024x600 Resolution, BNC/HDMI

SKU: DCSDI7

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Delvcam DELV-SDI-7 Specifications

  • Display Panel

    7" LED backlit

  • Physical Resolution

    1024x600, supports up to 1920x1080

  • Aspect Ratio

    16:9

  • Brightness

    250cd/m2

  • Contrast

    800:1

  • Viewing Angle (H/V)

    160deg./150deg.

  • Flexible frame rates

    24fps, 25fps, 30fps, 50fps and 60fps

  • Input

    1x 3G-SDI; 1x HDMI; 1x YPbPr; 1x (BNC); 1x Video; 1x Audio

  • Output

    1x 3G-SDI; 1x HDMI; 1x Composite Video

  • YPbPr Supported Formats

    480i/59.94Hz; 480p/59.94Hz; 576i/50Hz; 576p/50Hz; 720p/50Hz; 720p/59.94Hz; 720p/60Hz; 1080i/50Hz; 1080p/50Hz; 1080p/59.94Hz; 1080i/59.94Hz; 1080i/60Hz

  • HDMI Supported Formats

    480i/59.94Hz; 480p/59.94Hz; 576i/50Hz; 576p/50Hz; 720p/29.97Hz; 720p/30Hz; 720p/50Hz; 720p/59.94Hz; 720p/60Hz; 1035i/59.95Hz; 1035i/60Hz; 1080p/23.98Hz; 1080p/24Hz; 1080p/25Hz; 1080p/29.97Hz; 1080p/30Hz; 1080i/50Hz; 1080p/50Hz; 1080p/59.94Hz; 1080i/59.94Hz; 1080i/60Hz

  • HD-SDI Supported Formats

    480i/59.94Hz; 576i/50Hz; 720p/29.97Hz; 720p/30Hz; 720p/50Hz; 720p/59.94Hz; 720p/60Hz; 1080p/23.98Hz; 1080p/24Hz; 1080p/25Hz; 1080p/29.97Hz; 1080p/30Hz; 1080i/50Hz; 1080p/50Hz; 1080p/59.94Hz; 1080i/59.94Hz; 1080i/60Hz

  • Monitoring

    1x Built-in speaker

  • Mounting Threads

    1/4"-20

  • Power Current

    800mA

  • Input Voltage

    DC 7-24V (XLR)

  • Battery Plate

    V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6

  • Power Consumption

    10W

  • Operating Temperature

    -4 to 140 deg. F / -20 to 60 deg. C

  • Storage Temperature

    -22 to 158 deg. F / -30 to 70 deg. C

  • Dimensions (L x W x H)

    7.66 x 5.91 x 1.52" / 19.46 x 15.01 x 3.86cm
    With Sun Hood: 7.66 x 5.91 x 6.24" / 19.46 x 15.01 x 15.85cm

  • Weight

    16.9oz / 479.11g
    With Sun Hood: 22.6oz / 640.70g

  • UPC Code

    854554007394

5 Accessories for Delvcam DELV-SDI-7 7" 3G-SDI Camera-Top LED Monitor with Advanced Function, 1024x600 Resolution, BNC/HDMI

  • All Accessories (5)
  • Batteries & Power Supply (5)

About Delvcam DELV-SDI-7

The Delvcam DELV-SDI-7 ushers in a new era of super bright, high resolution monitoring at a super low price. This 7 inch 16:9 LED field monitor is fully multiformat with 3G-SDI, HDMI, YPbPr and component video inputs. Peaking functions, focus assistance and sun hood round off a long feature list that make the DELV-SDI-7 the ideal production camera mate whether it's DSLR or a full featured HD camera.

7" Monitor with Enhanced Resolution and Contrast
DELV-SDI-7 features a 1024x600 pixels screen resolution combined with a 800:1 contrast ratio to deliver consistently crisp imagery.

Designed for the pro video market
Cameras, lenses, tripods and lights are all expensive - but your field monitor doesn't have to be. Delvcam is famous for manufacturing durable and high quality hardware, at a fraction of the cost you'd expect to pay for those features. The DELV-SDI-7 creates an even more compelling reason to buy a Delvcam superior resolution, contrast and a generous offering of included extras!

Better Advanced Functions
Providing advanced camera auxiliary functions. Peaking, False Color, Histogram & Exposure, etc., are major concerns with DSLR users. Delvcam's field monitors are great at displaying accurate images, Delvcam makes photoing & recording even easier with its functionality.

HDMI video output - no annoying splitters required
The DELV-SDI-7 includes an HDMI-output feature which allows customers to duplicate the video content onto a second monitor - no annoying HDMI splitters required. The second monitor can be any size and picture quality will not be affected.

Wide power input range
Rather than a standard 12V DC power input in common with the rest of Delvcam monitors, they decided to improve the power features. The DELV-SDI-7 benefits from a much wider 6.5-24V DC input range, making it suitable for many more applications and ready to work on absolutely any shoot!

Configurable to suit your style
Since Delvcam introduced the complete range of HDMI monitors, they have had countless requests from their customers to make changes to improve their offering. Some features have been included as standard on DELV-SDI-7. Users can customize the 4 programmable function buttons (namely F1, F2, F3, F4) for shortcut operation according to different needs.

Delvcam widest selection of battery plates
When customers purchase Delvcam monitors, they are pleased to find a full selection of battery plates compatible with various camera batteries are available.

3G-SDI, HDMI and component and composite through BNC connectors
No matter which camera or AV equipment their customers use with the DELV-SDI-7, there is a video input to suit all applications.

Shoe mount adapter included
The DELV-SDI-7 is truly a complete field monitor package - in the box you will also find a shoe mount adapter. There are also quarter inch Standard Whitworth threads on the DELV-SDI-7; one on the bottom and two on the both side, so the monitor can easily be mounted on a tripod or camera rig.

What's in the box:

  • Delvcam DELV-SDI-7 7 " 3G-SDI Camera-Top LED Monitor with Advanced Function
  • NP-F970 Type Battery Plate
  • LP-E6 Type Battery Plate
  • Mini HDMI to HDMI Cable
  • DC Adapter
  • Sun Hood
  • Swivel Shoe Mount
  • Delvcam 90 Day Parts and Labor Warranty
