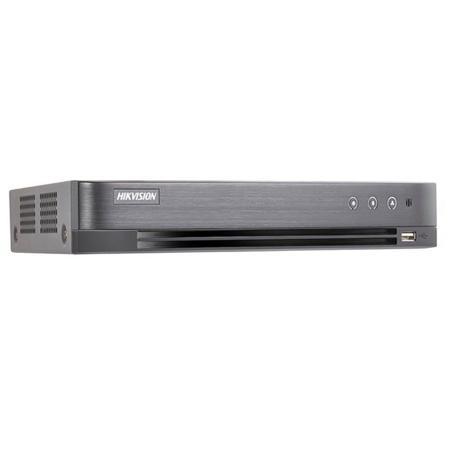

Hikvision Value Series TurboHD 8-Channel 5MP Tribrid DVR without HDD, H.265+, H.265, H.264+, H.264, PoC Not Supported

SKU: HV7208HUIK2

This item is no longer available.

Recommended Alternatives

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Hikvision TurboHD DVR Specifications

Video/Audio Input

Video/Audio Input

Jump to...
  • Video Compression

    H.265+ / H.265 / H.264+ / H.264

  • Analog Video Input

    8-Channel
    BNC interface (1.0 Vp-p, 75Ohms), supporting coaxitron connection

  • HD-TVI Input

    5MP, 4MP, 3MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

  • CVBS Input

    PAL / NTSC

  • IP Video Input

    2-channel
    Up to 6MP resolution
    Supports H.265+ / H.265 / H.264+ / H.264 IP cameras

  • Audio Compression

    G.711u

  • Audio Input

    4-channel, RCA (2.0 Vp-p, 1 KOhms)

Video/Audio Output

Jump to...
  • CVBS Output

    1-Channel
    BNC (1.0 Vp-p, 75Ohms)
    Resolution: PAL: 704 x 576, NTSC: 704 x 480

  • HDMI/VGA Output

    VGA: 1-Channel
    1920 x 1080 / 60 Hz
    1280 x 1024 / 60 Hz
    1280 x 720 / 60 Hz
    1024 x 768 / 60 Hz

    HDMI: 1-Channel
    4K (3840 x 2160) / 30 Hz
    2K (2560 x 1440) / 60 Hz
    1920 x 1080 / 60 Hz
    1280 x 1024 / 60 Hz
    1280 x 720 / 60 Hz
    1024 x 768 / 60 Hz

  • Encoding Resolution

    5MP
    4MP
    3MP
    1080p
    720p
    WD1
    4CIF
    VGA
    CIF

  • Frame Rate

    Main stream:
    5MP at 12 fps
    4MP at 15 fps
    3MP at 18 fps
    1080p
    720p
    WD1
    4CIF
    VGA
    CIF at 25 fps (P) / 30 fps (N)

    Sub-stream:
    WD1
    4CIF
    CIF at 25 fps (P) / 30 fps (N)

  • Video Bit Rate

    32 Kbps to 10 Mbps

  • Audio Output

    1-Channel, RCA (Linear, 1 kOhms)

  • Audio Bit Rate

    64 Kbps

  • Dual-Stream

    Supported

  • Stream Type

    Video
    Video and Audio

  • Synchronous Playback

    8-Channel

Network Management

Jump to...
  • Remote Connections

    128

  • Network Protocols

    TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Hard Disk

Jump to...
  • SATA

    2 SATA interfaces

  • Capacity

    Up to 8TB capacity for each disk (No HDD Preinstalled)

External Interface

Jump to...
  • Two-Way Audio Input

    1-Channel, RCA (2.0 Vp-p, 1 KOhms) (using the first audio input)

  • Network Interface

    1, RJ45 10M/100M self-adaptive Ethernet interface

  • Serial Interface

    RS-485 (half-duplex)

  • USB Interface

    Front Panel: 1x USB 2.0
    Rear Panel: 1x USB 3.0

  • Alarm In/Out

    8/4

General

Jump to...
  • Transmission Distance

    Up to 2630' (801.63m) on 1080p
    3940' (1200.93m) on 720p HD-TVI

  • Power Supply

    12 VDC

  • Consumption

    <= 60W (Without HDD)

  • Working Temperature

    14 to 131 deg. F (-10 to 55 deg. C)

  • Working Humidity

    10 to 90%

  • Dimensions (WxDxH)

    15 x 12.6 x 1.9" (38.10 x 32.00 x 4.83cm)

  • Weight

    Without HDD: <= 3.9 lbs (1.77kg)

  • UPC Code

    842571108637

1 Accessories for Hikvision Value Series TurboHD 8-Channel 5MP Tribrid DVR without HDD, H.265+, H.265, H.264+, H.264, PoC Not Supported

  • All Accessories (1)
  • Monitors (1)

About Hikvision TurboHD DVR

TurboHD DS-7208HUI-K2 DVR feature a range of self-adaptive signal inputs and offers camera support on 8-channels. They offer transmission distances of up to 2,630 ft (800m) on 1080p and 3,940 ft (1,200m) on 720p HD-TVI. Hikvision's TurboHD DVRs also feature the latest H.265+ encoding technology, which improves recording efficiency and reduces data storage costs. The DS-7208HUI-K2 DVR supports advanced analytics, such as line crossing, intrusion and scene change detection.

Hikvision TurboHD DVR Features

  • H.265+ / H.265 / H.264+ / H.264 and Dual-Stream Video Compression
  • Support for HD-TVI and Analog Cameras
  • Full Channel Recording at up to 5 MP
  • Full Channel 1080p Real-Time Recording
  • Full channel at 720P resolution real-time recording
  • HDMI and VGA Output up to 3840 x 2160 resolution
  • Long Over-the-Coax Transmission Distance
  • 8-ch Synchronous Playback Support resolution

What's in the box:

  • Hikvision Value Series TurboHD 8-Channel 5MP Tribrid DVR without HDD
  • IR Remote Control
  • Hikvision 3 Year Parts and Labor Warranty
