TRENDnet TI-M6024 Specifications

  • Interface

    Input: 100-240VAC, 50/60Hz, 1.8A 120-370VDC
    Output: 60W, 24V, 2.5A
    DIN rail: TS-35/7.5 or 15

  • Housing

    Metal case
    DIN-rail mount
    LED indicator confirms power to the unit

  • Special Functions

    DC OK relay contact
    Short circuit/overload/over voltage protection
    Protection type: Shut down and repower

  • Operating Temperature

    -20 to 70 deg. C / -4 to 158 deg. F

  • Operating Humidity

    Maximum 90 % non-condensing

  • MTBF

    2,992,000 hours

  • Certifications (Mean Well)

    CE
    UL 508
    UL 60950-1
    CB 60950-1
    TUV EN60950-1
    Class I, Div. 2 hazardous locations T4

  • Dimensions

    40 x 100 x 90mm / 1.57 x 3.94 x 3.54"

  • Weight

    300g / 10.58oz

  • UPC Code

    710931160376

About TRENDnet TI-M6024

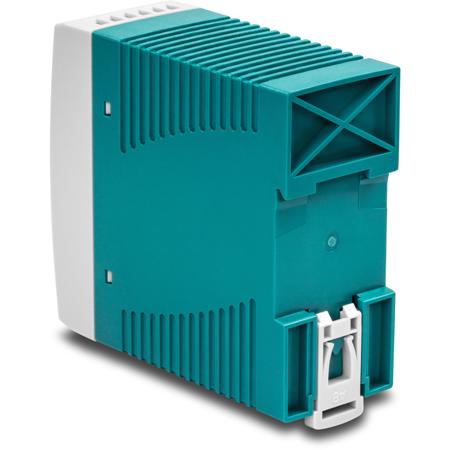

TRENDnet's 60W Single Output Industrial DIN-Rail Power Supply, model TI-M6024 (Mean Well MDR-60-24), supplies up to 60W of power to industrial PoE equipment such as switches, network cameras and Wi-Fi access points. This power supply comes with an integrated DIN-rail mount and overload current protection.

• Industrial power supply with integrated DIN-rail mount
• Provides up to 60W of power (24V, 2.5A)
• Universal AC input
• Short circuit/overload/over voltage protection
• UL 508 approved
• 100% full load burn-in test
• Extreme -20 to 70 deg.C (-4 to 158 deg.F) operating temperature range

60W Power
Provides up to 60W (24V, 2.5A) of power for PoE devices such as switches, network cameras and access points.

Overload Protection
Overload/short circuit/over voltage protection.

Full Load Test
This power supply undergoes a 100% full load burn-in test.

Passive Cooling
Cooling by free air convection.

DIN-Rail Mount
Metal enclosure with integrated DIN-rail mount.

Extreme Temperatures
Rated for an operating temperature range of -20 to 70 deg.C (-4 to 158 deg.F).

Safety Certifications
Certified for UL 508, UL 60950-1, TUV EN60950-1 and Class I, Div. 2 Group A, B, C, D hazardous locations T4.

Electro Magnetic Emission/Immunity
Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level and criteria A.

Vibration Resistant
Rated for vibration (IEC 60068-2-6).

LED Indicator
LED indicator confirms power to the unit.
