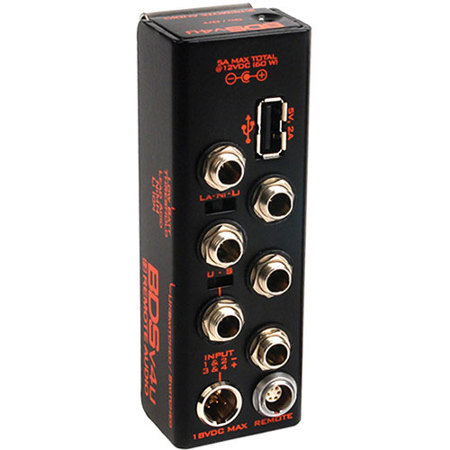

Remote Audio BDSv4U Battery Distribution System with USB and Remote Ports

Under the umbrella of professional audio equipment, the Remote Audio BDSv4U Battery Distribution System stands as a benchmark in power management solutions. For over a decade, it has been the go-to system in ENG audio bags, providing the ability to power multiple audio devices from a single rechargeable battery. As the complexity of equipment demands increases, the BDS system meets these needs with a robust and reliable design.

The BDSv4U model elevates the system's functionality with several enhancements. It features a built-in 5V at 2A (10W) regulated USB output, allowing for the powering or charging of compatible devices. It also includes a "low-battery" indication with three user-selectable thresholds and an easily accessible "switched/unswitched" toggle.

The BDS system is reverse-polarity protected and overload protected, ensuring safe and efficient power distribution. It includes a distribution box with an illuminated bi-color on/off switch, six outlets, a power source (typically a rechargeable battery such as the NP-1), an input cable, and output cables for the devices being powered.

The BDSv4U model is designed to simultaneously turn on and off multiple pieces of equipment powered by a single source. It is compatible with all previous BDS input and output cables manufactured by Remote Audio, making it a seamless upgrade from older BDS versions.

The BDSv4U system introduces a 6-pin connector for the RM (Remote Meter) & RS (Remote Switch) accessories. These accessories allow for remote control of the BDSv3 and display the voltage of the power source and the amperage draw of the equipment. The BDSv4U can function without the RM/RS, with the toggle switch controlling the unit's power.

The BDSv4U system includes a standard USB port for charging or powering any device compatible with USB, such as smartphones or handheld recorders. Unlike many other 12V to 5V USB adapters, this USB port can deliver a regulated 5V at up to 2A (10W).

The BDSv4U system is designed with a focus on safety and efficiency. It features a special switching type outlet connector that prevents accidental short circuits. It also includes short circuit and overload protection, reverse polarity protection, and a low battery indicator.

The BDSv4U Battery Distribution System is a comprehensive power management solution for professional audio equipment, offering reliability, convenience, and advanced features. It is a testament to Remote Audio's commitment to delivering high-quality, innovative products for the audio industry.
