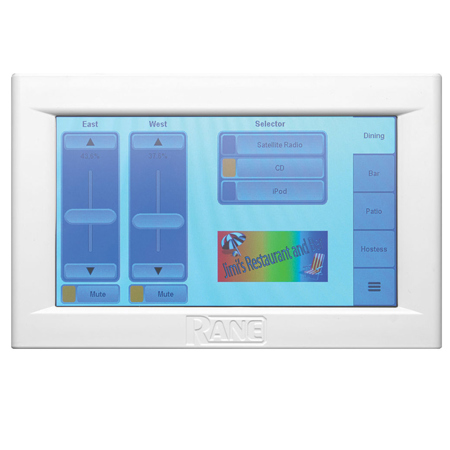

Rane DR6 7" LCD Display Touchscreen Remote Control for HAL System, 480x800 Resolution

The DR6 is a fully customizable touchscreen remote for the HAL family. It supports multiple pages or tabs and any set of levels, toggles, selectors and/or commands. Drag, drop and resize controls any way that's desired. Use custom background images and logos in full-color on the 7-inch LCD display. Screw the included wall-mount bracket over U.S. or international electrical boxes or flush mount the 3/4" thick DR6 with a 2-inch (5 cm) square hole in the wall to accommodate the cable. The optional DS1 desk stand accessory (shown) allows the DR6 to rest or mount on a horizontal surface. The optional RB1 rack bracket securely installs a DR6 into a 19" equipment rack. The included midspan power injector (not PoE) connects shielded CAT 5e (or better) cables between any HAL and the DR6 to deliver communications and the extra power needed for the display. Optional, on-screen User Access logins secure management pages from public or staff use and a programmable ambient light sensor automatically dims the backlight. The Control Page Designer in Halogen 5.0 allows you to create one set of pages and use them in a web control design, DR6 display or both.

DS1 Features
• All steel, painted white
• Rubber bottom protects the desktop
• Kensington security hole
• Holes in the bottom to fasten to a desktop
• Larger hole in bottom to thread CAT 5 cable through the desktop

RB1 Features
• All steel, painted black.
• 3U rack height.
• Mount the Wall Plate to the RB1 using the #6-32x7/8" screws, then mount the DR6 using the Torx T10 screws
