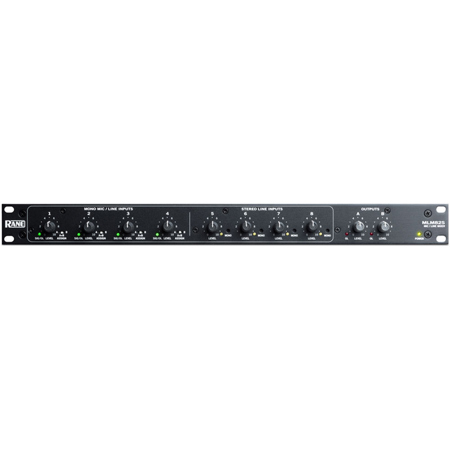

Rane MLM82S 8-Channel Microphone and Line Mixer, 1U Rack Height, 15 VDC Phantom Power

The Rane MLM82S features four balanced, studio grade, mono Mic/Line inputs with XLR jacks and 15 VDC phantom power. Each of the four Mic/Line inputs may be assigned to A, A+B or B Outputs. Independent Level/Gain Trim controls and Signal/Overload indicators are provided for each Mic/Line Input. The Phantom Power switch and the Mic/Line switches are located on the rear panel. Phantom power is removed from any Input set for Line operation.

The MLM82S also features four stereo line level inputs with 12 dB of line gain. Each Stereo Line input features a recessed Mono switch with indicator and Level control. These inputs may also be used with four Mono A inputs and four Mono B inputs. A and B Output Level controls set the master mix level independently for A and B Outputs. The mix amplifiers feature independent overload indicators. To correct any overload condition, the entire mix can be reduced and/or individual Input Levels adjusted. A and B mix Outputs each have an internal switch for padding the output signal to Mic level.
