Rane MP2014 Rotary Knob 2-Channel DJ Mixer

Successful artists demand purity-purity of sound most importantly, but also purity of style, controls, movement and art. Rane's answer to this demand is the MP2014 two-channel rotary mixer with a pristine signal path that provides everything needed with nothing else added. It is a new musical instrument for the discerning perfectionist DJ who only needs two channels but requires the utmost in technology, simplicity, reliability and portability. The MP2014 is built for DJs who love the classic rotary mixer experience yet refuse to compromise cutting edge features.

Different DJ styles require different instruments. The MP2014 is uniquely tailored for the artist seeking the fluidity and smooth transitions provided by silky-smooth rotary controls. Like its four-channel big brother this definitive mixing instrument is realized through a combination of powerful and unique features, classic elegance, rugged design and intuitive simplicity.

Rane redefined the rotary DJ mixer by bridging the gap between classic rotary mixers and modern DJ tools. The MP2014 represents the perfect marriage of a high-quality rotary control-surface, with state-of-the-art digital signal processing and dual 16-channel USB sound cards. An essential assortment of analog and digital I/O supports mixing vinyl, CDs and USB streaming audio in any combination. Featuring exceptional phono preamps, three-way swept-filters and a three-band, steep 24dB/octave main mix Isolator-with adjustable crossover points-the MP2014 provides the same quality, aesthetics and high-resolution audio as the MP2015 in an elegant and portable design.

Hi-Res Sources
A world-class leader in performance, the MP2014 is designed for playback of High-Resolution Audio (HRA) 24-bit studio master quality sources. Its sonic signature has no equal, satisfying the most stringent vinyl purists. And the dynamics are perfect for DJs preferring the uncompressed sound of WAV and FLAC files.

Ergonomics

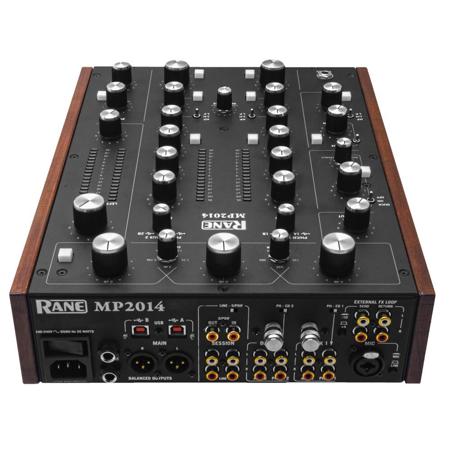

Strikingly different and beautiful to look at with its laser-etched Rane-logo wood side panels, classic spun-aluminum knob caps, 16-segment level peak-hold meters and back-lit push switches, the MP2014 sports a new compact size and shape for a rotary mixer, with all controls selected, designed and located for effortless professional performance playback. Its size makes it portable and easy to move about.

Sound Quality
Professional high-end sound quality begins and ends with the audio signal converters. The MP2014 uses AKM Premium Audio Device delta-sigma modulator converters that meet the highest sound quality standards of recording studios. The balanced differential audio input converters deliver 116 dB dynamic range,utilizing a built-in modified FIR architecture that minimizes group delay, allowing excellent linear phase response. The 24-bit audio output converters have the same 116 dB dynamic range and sport AKM's proprietary 24-bit digital filter for better sound quality achieving low distortion characteristics and wide dynamic range. The differential outputs eliminate the need for AC coupling capacitors further increasing performance.Input and output converters support sample rates of 44.1 kHz, 48 kHz or 96 kHz. Overall Digital/USB in to Line-out or Line-in to Digital/USB out dynamic range is 116 dB (A-weighted), while Line-input to Line-output dynamic range is a remarkable 113 dB (A-weighted) with vanishingly low THD+N of 0.001%.

Studio-Quality Phono Preamps
The Phono-CD (or any line-level source) analog input stages feature gold RCA connectors and are true studio-quality preamplifiers providing EMI[4], RFI and transient overvoltage protection against ESD[6]. The circuitry provides low noise, high gain-bandwidth, low harmonic distortion, fast slew rate and high output current. The phono RIAA filter accuracy measures+0.1/-0.2 dB from perfect. Included are 18 Hz high-pass infrasonic (rumble) filters with steep 18 dB/octave slopes and ultrasonic filters beginning rolloff at 50 kHz at a 12 dB/octave rate. A zero-distortion relay selects between CD and Phono operation.

Pro Audio I/O Stages
All analog source input stages have gold RCA connectors along with buffered circuitry that provides EMI, RFI and transient overvoltage protection. All unbalanced analog outputs have gold RCA connectors along with line-driving circuitry with EMI, RFI and ESD protection as well as on/off transient noise muting transistors. The differential balanced main outputs exit via the highest quality Neutrik XLR connectors, while the differential balanced booth outputs leave through high-quality Neutrik 1/4" TRS (tip-ring-sleeve) connectors. Both outputs have EMI, RFI and ESD as well as on/off transient noise muting transistors. All line-level analog input and output stages utilize an amplifier design exhibiting very low input voltage noise with high gain-bandwidth-product and high slew rate. The line-driving output stage exhibits no deadband crossover distortion, large output voltage swing, excellent phase-and gain-margins, low open-loop high frequency output impedance and symmetrical source and sink AC frequency performance.

Filters
Each of the input channels feature a unique and exclusive three-position toggle selector-switch. Choose between LP (low-pass), HP (high-pass) or L-H (low-pass, high-pass combo). All have steep 24 dB/octave (4th-order) slopes and are sweepable. In the LP position the Filter knob sweeps the low-pass frequency from 20 Hz to 20 kHz. The 12:00 middle position is 635 Hz. In the HP position the Filter knob sweeps the high-pass frequency from 20 Hz to 20 kHz. The 12:00 middle position is 635 Hz. In the L-H position the Filter knob sweeps either the LP or HP filter depending upon rotation direction from center. The 12:00 middle position bypasses both filters giving a flat unaffected response. Rotating the knob from fully counterclockwise to center sweeps the LP filter from 20 Hz to 18 kHz. Rotating the knob from center to fully clockwise sweeps the HP filter from 35 Hz to 20 kHz. The single Resonance (Q) knob controls the shape of the filters. The range is from flat (Q=0.707) to max peaking (Q=12). These filters are high-resolution, fast and artifact free, with all filter coefficients accurately calculated for the selected sample rate.

Channel Tone Controls
The input channels have exceptional three-band tone controls characterized by being 12 dB/octave (2nd-order) Linkwitz-Riley, full-cut filters (kill) with selectable crossover points of 150 Hz/6.0 kHz or 300 Hz/3.0 kHz. The crossover points are selected in the user control panel when connected to a computer via one of the USB ports. Like the Filters section above, the Tone Control filters are extremely accurate, high-resolution, fast and artifact free, with all filter coefficients accurately calculated for the selected sample rate.

Isolator Section
The proprietary three-band output Isolator is a steep 24 dB/octave (4th-order) phase-compensated Linkwitz-Riley design with continuously adjustable low-mid and mid-high crossover points. Like the Tone Controls, these filters are extremely accurate, high-resolution, fast and artifact free, with all filter coefficients accurately calculated for the selected sample rate. Adjustable crossovers allow the artist to match the Isolator to the music being played. Low-mid crossover is adjustable from 80 Hz to 640 Hz. Mid-high crossover is adjustable from 1 kHz to 8 kHz.

Mic Preamp
The superior microphone preamplifier is a high-performance current-feedback instrumentation design manufactured by the world leader in pro audio analog circuits, THAT Corporation, having lower noise at low gains, wider bandwidth, higher slew rate, lower distortion and lower supply current than other designs. Transient overvoltage protection is provided.

Headphone Amps
The stereo headphone amplifiers use a unique Maxim Integrated DirectDrive architecture that eliminates the need for large DC-blocking capacitors. The amplifiers deliver up to 70mW per channel into a 16 O load or 130 mW into a 32 O load and have low 0.009% THD+N. The design includes ESD protection on the headphone outputs along with short-circuit and thermal-overload protection. Comprehensive anti-click-and-pop circuitry suppresses audible clicks and pops on startup and shutdown. Complementing the headphone amplifiers is the versatile cueing system utilizing Rane's proprietary Split Cue technology.

Digital Signal Processing (DSP)
All digital computations are done by a Texas Instruments 32-bit floating point digital signal processor running at 44.1 kHz, 48 kHz or 96 kHz. The S/PDIF transceiveris a Texas Instruments pro audio device with exceptional receiver sample rate converter.

Dual USB Ports
Dual USB ports provide for simultaneous connection of two computers, enabling back-to-back sets between laptop DJs running different software without compromise or interruption-no easy feat. The USB ports are 100% class compliant, allowing hook-up to any Mac OSX device without the need for an additional driver. The included high-performance ASIO driver runs most Windows DAW and DJ software. MIDI end points are class compliant with both OSX and Windows devices. Each port supports 6 playback and 14 records channels. This lets most DAW programs simultaneously record two decks, the Session input, Mic input and the Main mix.
