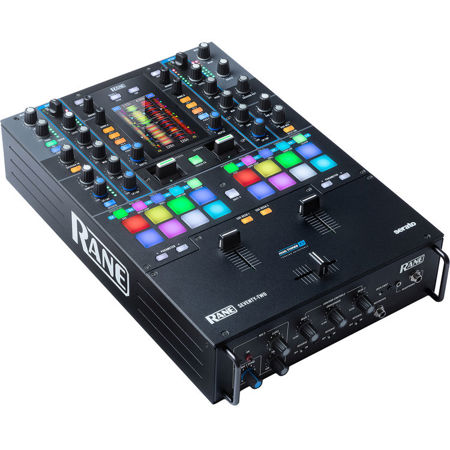

Rane Seventy-Two 2-Channel Performance Mixer with 4.3" Touchscreen for Serato DJ Pro

SKU: RASEVENTYTWO

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Rane Seventy-two Specifications

  • Display

    Full-color display with capacitive multi-touch (2.1" x 3.7" / 54 x 95 mm (wxd)) (4.3" / 109 mm (diagonal))

  • Pads

    16x velocity-sensitive multi-color back-lit pads (8 per deck, 10 modes each)

  • Faders

    3x MAG THREE tension-adjustable faders (2 channel/line faders, 1 crossfader)

  • Outputs

    2x XLR (Main)
    2x 1/4" (6.35 mm) TRS (Booth)
    1x RCA stereo pair (Session)
    1x 1/4" (6.35 mm) TRS (Headphones)
    1x 1/8" (3.5 mm) TRS (Headphones)

  • Inputs

    4x RCA stereo pairs (Deck 1-2)
    2x XLR / 1/4" (6.35 mm) TRS (Mic 1-2)
    1x RCA stereo pair (Session)
    1x 1/4" (6.35 mm) TRS (Footswitch)

  • Connections

    2x USB Type-A ports (Deck 1-2 USB Controllers)
    2x USB Type-B ports
    1x IEC power cable input

  • Digital Audio

    Converters: AKM High Definition Audio; 24-bit PCM, 48 kHz
    Digital Signal Processing: 32-bit, floating point, double precision
    Dynamic Range (A-weighted, unity gain): ADC: 114 dB, DAC: 114 dB, CD Input to Analog Output: 114 dB, CD Input to USB Output: 114 dB, USB Input to Analog Output: 114 dB

  • Two Deck Inputs

    Left Deck and Right Deck
    Source selects: USB-A, PH-CD, AUX, USB-B
    PH-CD RCA Inputs: Select Phono (RIAA) or CD (line-level), CD setting (4 Vrms maximum input, A-weighted DR 114 dB), Phono Setting (RIAA Curve, +0.1/-0.2dB, Gain at 1kHz = 30 dB, Maximum input at 1 kHz = 126mV)

  • Two Deck Inputs (Contd.)

    AUX RCA Input: 4 Vrms maximum input, A-weighted DR 114 dB
    Gain Trim: Off at minimum, 0dB at center position, +15
    Tone Controls: Full-cut 2nd order filters, Off at minimum, flat at center, +6 dB maximum, Crossover frequencies 300 Hz and kHz
    Manual swept filter: Flat at center, CCW = High-cut, CW = Low-cut, 4th order, adjustable Q

  • Session Inputs

    RCA Inputs
    Max Input 4 Vrms
    A-weighted DR 114 dB

  • Analog to Digital Converters

    AKM High Definition Audio
    24-bit PCM, 48 kHz

  • Digital to Analog Converters

    AKM High Definition Audio
    24-bit PCM, 48 kHz

  • Digital Signal Processing

    32-bit, floating point, double precision

  • A-weighted Dynamic Range (unity gain)

    ADC, 114 dB
    DAC, 114 dB
    Single CD Input to any Analog Output, 111 dB
    Single CD Input to USB Output, 114 dB
    Single USB Input to any Analog output, 114 dB

  • USB Ports

    Two Device Ports
    Two powered Hub Ports: +5V at 500mA, Connect RT01 Controller, Auto-switch HUB ports between USB-A and USB-B (Determined by Input Selection)
    USB 2.0 Class-compliant Audio and MIDI: No driver needed for MAC, Universal ASIO driver for windows, 24-bit PCM, 48 kHz SR, USB Port Audio for USB-A and USB-B (Record: Deck-1 Pre L/R, Deck-2 Pre L/R, Deck-1 Post L/R, Deck-2 Post L/R, Mix L/R, Mics L/R, Session L/R, Playback: Deck-1 L/R, Deck-2 L/R, Sampler L/R)

  • Two Mic Inputs (Mic-1)

    XLR/TRS Combo Jack
    Mic/Line Select on Rear Panel: Dynamic Mic, Analog Gain 30dB, Max Input 0.126 Vrms, Line, Analog Gain 4.75 dB, Max Input 2.3 Vrms
    ON/OFF switch: Press to toggle on/off, Press and hold to enable auto talk-over (Duck level = 10 dB)
    Gain Trim: Off to +20dB (unity at center)
    Tone Control: One knob tilt tone control, Max boost/cut = 10 dB
    Echo Effect (Mic-1 Only): Echo enable button on top plate, Echo Depth Control on Front Panel

  • Two Mic Inputs (Mic-2)

    XLR/TRS Combo Jack
    Mic/Line Select on Rear Panel: Dynamic Mic, Analog Gain 30dB, Max Input 0.126 Vrms, Line, Analog Gain 4.75 dB, Max Input 2.3 Vrms
    ON/OFF switch (front panel): Toggle on/off
    Gain Trim (front panel): Off to +20dB (unity at center), On front Panel
    Tone Control (front panel): One knob tilto tone control, Max boost/cut = 10 dB

  • Line Outputs

    Balanced XLR Main Output: Frequency Response Flat 20 to 20 kHz (+/- 0.2 dB), Maximum Output, 8 Vrms, THD+N, 0.002%, 1 kHz, 4 Vrms
    Balanced TRS Booth Output: Frequency Response Flat 20 to 20 kHz (+/- 0.2 dB), Maximum Output, 8 Vrms, THD+N, 0.002%, 1 kHz, 4 Vrms
    Unbalanced Session Output: Frequency Response Flat 20 to 20 kHz (+/- 0.2 dB), Maximum Output, 4 Vrms, THD+N, 0.02%, 1 kHz, 2 Vrms

  • Headphones

    1/4" TRS and mini 3.5mm TRS Jacks
    Max output voltage, 4V, (no load)
    THD+N at 2Vrms = 0.003%
    Power Into 50 ohms, 96mW
    Turn on/off muting

  • Universal AC Mains Power Supply

    AC Input: 100 to 240 AC, 50/60 Hz, 30 watts

  • Minimum System Requirements

    Operating System: macOS 10.13, macOS Sierra 10.12, Mac OS X 10.11, Windows 10, Windows 8.1, Windows 7
    Processor: i3: 1.07GHz, i5: 1.07GHz, i7: 1.07GHz
    Screen Resolution: 1280x720
    Memory: 4 GB
    USB: Available USB 2.0 port
    Free HDD Space: 5 GB

  • UPC Code

    694318024942

About Rane Seventy-two

The Rane DJ Seventy-Two is a 2-channel, advanced control and performance mixer, addressing the creative power of Serato DJ Pro software. Featuring a full color touchscreen interface, stackable Serato and Flex FX, plus the ultimate in expressive playback control via eight multi-function trigger pads, the Rane Seventy-Two redefines the scope and possibilities for Pro, Club and Scratch DJ/Turntablists. With the strength and durability of solid-steel and aluminum casing, the gig and battle-ready Seventy-Two mixer represents the ultimate in advanced control needs and performance expectations of today's DJs. Designed in collaboration with leading Turntablists around the world and with the foundation of a globally trusted Seattle, US based engineering heritage, the Seventy-Two redefines what is possible when true DJ artistry meets ground-breaking technology.

Powered by the all-new Serato DJ Pro software, the Seventy-Two's 4.3" color touch-screen interface visualizes its moving waveforms, enabling navigation, track selection and extensive performance preference adjustment too. It also offers full FX control and sonic manipulation utilizing and stacking the Seventy-Two's dual Flex FX engines with Serato DJ Pro's extensive and expressive effects banks. Two DJ's can perform simultaneously and handover effortlessly via the unit's dual-USB connections. Turntablists can cut, flare, chirp, crab, orbit and transform with the new, tactile and precision based Mag Three faders, then flip between expressive control functions via the 16 MPC-style pads with RGB backlight and multi-performance mode selections. Also, Serato's expressive Pitch 'n Time DJ expansion is included free with the Seventy-Two, for DJs to integrate creative 'pitch-play' techniques into the mix.

Rane Seventy-two Features

  • Solid steel construction-built like a tank for non-stop, heavy-duty use
  • (3) New MAG THREE contactless tension-adjustable faders for crossfader and channel faders with reverse, contour controls and cut-in adjustment
  • 4.3" touchscreen for moving-wave display, X/Y FX control, song selection and user customizations
  • Dual FLEX FX engines, one for each channel
  • Post Fader Software and Hardware FX
  • Stacked Serato DJ Pro FX with internal FLEX FX
  • Dual die-cast aluminum FX paddles with 180-degree rotation
  • Chain-integrated Serato software effect control plus one internal FLEX effect per channel
  • 11 Flex FX effects - also XY controllable (Echo, Hold Echo, Duck Echo, Reverb, Filter, Phaser, Auto Gate, Flanger, Delay, Ping Pong Delay, Beat-Breaker)
  • Quick Auto-Loop triggers knob
  • Four Pad FX (Echo, Brake, Reverse, Gate)
  • Full control over Single and Gang Serato FX
  • Mic Echo
  • Foot Switch control option
  • 14 Pad Modes (Cue, Pitch Play, Auto Loop, Manual Loop, Roll, Pad FX, Sampler, Fader FX, Flip (requires purchase of Serato Flip expansion), Slicer, Transport, Slicer Loop, Flip, 3 Custom Pad Sets)
  • Dual USB connections for DJ handoffs and simultaneous performance
  • Legacy Rane US engineered superior, class-leading audio quality (114db SNR USB to analog output)
  • 16 Akai Pro MPC performance pads w/RGB backlight, adjustable threshold and aftertouch, with independent mode controls per deck
  • Industry first - assignable USB controller inputs for RANE TWELVE motorized control turntable
  • Full on-board Serato DJ Pro transport/pad control should traditional turntables fail
  • Unlocks Serato DVS, with Serato's Official Control Vinyl included (also ships with Serato Pitch 'n Time DJ expansion)

What's in the box:

  • Rane DJ Seventy-Two 2-Channel Mixer with 4.3 " Touchscreen
  • Power Cord
  • 2x Serato NoiseMap Control Vinyl Records
  • 2x Serato NoiseMap Control CDs
  • Serato Pitch 'n Time Download Card
  • 2x USB Cables
  • Set of Rane Stickers
  • User Guide
  • Safety Manual
  • Rane 2 Year Limited Warranty
