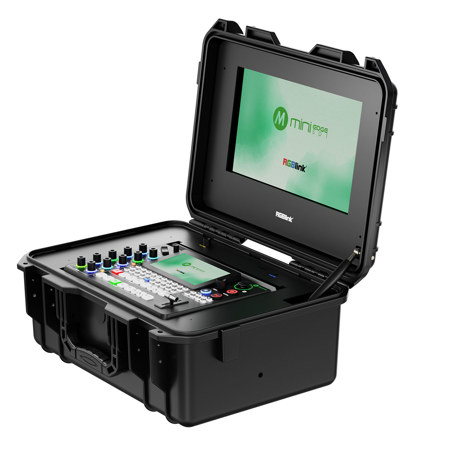

RGBlink mini-edge SDI EFP All-In-One Streaming Video Switcher Kit with 14" Display and Case, Black

SKU: RB2300008020 MFR: RGBLINK-230-0008-02-0
Earn VIP Reward Points

Key Features

  • Create engaging live streams with this all-in-one video switcher kit, ready for any event.
  • Enjoy high video quality with 4K HDMI inputs, ensuring your streams look professional.
  • Easily manage your live production with the integrated 14" display for clear monitoring.
  • Versatile compatibility with HDMI, SDI, and NDI inputs for seamless integration.
  • Stream directly to platforms via USB-C or LAN, making real-time streaming simple.
  • Portable design with included flight case, perfect for on-the-go video switching.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$89.99

3 Year

$109.99

4 Year

$139.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RGBlink mini-edge SDI EFP Specifications

mini-edge SDI: Connectors

mini-edge SDI: Connectors

Jump to...
  • Input

    HDMI 4K: 4x HDMI-A
    UVC (Webcam): 1x USB-C
    3G SDI: 4x SDI
    NDI: 1x NDI

  • Output

    HDMI 2K: 2x HDMI-A
    USB (Record): 1x USB-C
    USB (Stream): 1x USB-C
    NDI: 1x NDI

  • Audio

    MIC IN: 1x 6.35mm XLR + TS Jack (48V Phantom Power)
    LINE IN: 1x 6.35mm TRS Jack
    OUT: 1x 6.35mm TRS Jack
    1x 3.5mm mini-Jack

  • Communication

    LAN: 1x RJ45

  • Power

    Power Supply: 1x USB-C

mini-edge SDI: Performance

Jump to...
  • Input Resolution

    HDMI: 1280x720@50/59.94/60 | 1024x768@60 | 1280x768@60 | 1280x800@60 | 1280x1024@60 | 1360x768@60 | 1366x768@60 | 1440x900@60 | 1600x1200@60 | 1680x1050@60 | 1920x1200@60 | 1920x1080i@50/59.94/60 | 1920x1080p@23.98/24/25/29.97/30/50/59.94/60 | 3840x2160p@30/50/60 | 4096x2160@30/50/60

  • Output Resolution

    HDMI/USB (Webcam): 1280x720@50/60 | 1920x1080@24/25/30/50/60

  • Video

    Video Formats: HDMI 2.0 | HDCP 2.2
    Grayscale Processing: 10bit
    Video Sampling: 4:4:4 YUV
    Video Latency: <4 frames

  • Audio

    Line In Delay: 8 frames

    Audio Format:
    HDMI: Linear PCM, 24 bits/48 kHz, 2 ch
    USB: Linear PCM, 16 bits/48 kHz, 2 ch

  • Record/Storage

    Record Formats: MP4
    Disk Formats: FAT32 (<=32 GB) | exFAT (64GB-2TB)

  • Supported Standards

    HDMI: 2.0
    USB: 3.0
    H.265: ITU-T H.265/ISO/IEC 23008-2

mini-edge SDI: Power

Jump to...
  • Compatibility

    USB Power Delivery (PD) 3.0

  • Supported Cables

    Certified USB PD Aware

  • Input Voltage

    Type-C 12V/3.3A

  • Maximum Power

    40W

mini-edge SDI: Environment

Jump to...
  • Temperature

    32 Degree F to 113 Degree F (0 Degree C to 45 Degree C)

  • Humidity

    10% to 85% RH

mini-edge SDI: Physical

Jump to...
  • Dimension

    11.45 x 8.77 x 2.81" (291 x 222.6 x 71.3mm)

  • Weight

    3.26 lbs (1.48kg)

mini-EFP-4S: Connectors

Jump to...
  • Input

    HDMI 4K: 4x HDMI-A
    SDI 3G: 4x BNC
    Media | UAC: 1x USB-C (Record)
    NDI: 1 xRJ45 (LAN)

  • Output

    HDMI 2K: 1x HDMI-A (PGM)
    USB 2.0: 1x USB-C (Record)
    UVC: 1x USB-C (Webcam)
    RTMP(S) | NDI: 1x RJ45 (LAN)

  • Audio

    MIC IN 1: 1x 6.35mm TRS jack
    LINE IN: 1x 6.35mm TRS jack
    Audio OUT: 1x 6.35mm TRS jack

  • Communication

    LAN: 1x RJ45

  • Power

    1x IP65 AC jack

mini-EFP-4S: Performance

Jump to...
  • Input Resolution

    HDMI: 1280x720@50/59.94/60 | 1024x768@60 | 1280x768@60 | 1280x800@60 | 1280x1024@60 | 1360x768@60 | 1366x768@60 | 1440x900@60 | 1600x1200@60 | 1680x1050@60 | 1920x1200@60 | 1920x1080i@50/59.94/60 | 1920x1080p@23.98/24/25/29.97/30/50/59.94/60 | 3840x2160p@30/50/60 | 4096x2160@30/50/60
    SDI: 720p@50/59.94/60 | 1080i@50/59.94/60 | 1080p@23.98/24/25/29.97/30/50/59.94/60

  • Output Resolution

    HDMI/USB (Webcam): 1280 x 720@50/60 | 1920x1080@24/25/30/50/60

  • Video

    Color Space (HDMI | SDI): RGB | YUV
    Video Sampling: 4:4:4 | 4:2:2
    Bit depth: 8bit | 10bit
    Video Latency: <4 frames

  • Audio

    Audio Format (HDMI): Linear PCM, 24 bits/48 kHz, 2 ch
    Audio Format (USB): Linear PCM, 16bits/48 kHz, 2 ch

  • Record/Storage

    Record Formats: MP4
    Disk Formats: FAT32 (<=32 GB) | exFAT (64GB-2TB)

  • Supported Standards

    HDMI: 2.0
    USB: 3.0
    H.265: ITU-T H.265/ ISO/IEC 23008-2
    SDI: SMPTE 425M (Level A & B) | SMPTE 424M | SMPTE 292M | SMPTE 259M-C | DVB-ASI

mini-EFP-4S: Display

Jump to...
  • Screen Size

    14" (35.56cm)

  • Panel Type

    TFT

  • Border Size (L/R/U)

    4.82/6.72/4.42

  • Resolution

    1920x1080 pixels

  • Contrast Ratio

    Type: 500/Min: 350

  • Gamut

    45%

  • Brightness

    220 cd/sq. m

  • View Angle (U/D/R/L)

    24 Degree/45 Degree/45 Degree/45 Degree

mini-EFP-4S: Power

Jump to...
  • Input Voltage

    AC 100 to 240V

  • Maximum Power

    40W

mini-EFP-4S: Physical

Jump to...
  • Color

    Black

  • Material

    Polypropylene

  • Dimensions

    14.17 x 12.13 x 6.97" (360 x 308 x 177mm)

  • UPC Code

    6976965941204

About RGBlink mini-edge SDI EFP

- mini-EFP-4S -
This Dedicated Portable Case made of high-strength PP material is equipped with a 14-inch IPS display and a switcher with option of mini-ISO, mini-mx SDI or mini-edge SDI. Integrated audio and video switching, PTZ camera control, multi-view monitoring, and recording in one case, this portable and shock-resistant carry case is perfect for all sites, from music festival to lawn wedding, sports competition and other outdoor activities.


- mini-edge SDI -
mini-edge SDI features four 4K HDMI 2.0 inputs and four 3G-SDI inputs, one UVC and one NDI bi-direction input & output, supporting digital embedded audio and video signals from PC, Camera and more. Also analog audio by 1x Phantom,1x Line in and 1x Mic, and a Bluetooth audio.

There are two separate HDMI outputs for multi-viewer Preview, Program or Test Pattern. One USB 3.0 output supports YUY2 and MJPEG capture formats, which can be recognized as a webcam for streaming to Facebook, YouTube, ZOOM, etc.

The UVC can be used bidirectionally for USB disk recording, wireless speaker and wireless microphone. This function can be applied to devices such as RGBlink AI mini. The Ethernet port with NDI license enable is bi-direction too, which ensures that the NDI encoder and decoder can work at the same time.

mini-edge SDI is built in with 5.5-inch TFT panel for menu operation and multiviewer video display.

Compared with mini-edge, mini-edge SDI has 4 more 3G SDI inputs, a ready-to-be-licensed bidirectional NDI, and also noise reduction for audio inputs. Else it features dynamic output control, multi-view preview, picture in picture, chroma key, transitions, on board PTZ camera controls and much more.

mini-edge SDI is webAPP ready. It is also integrated with TAO Cloud for remote control and can stream to at least 4 content platforms at the same time.

• Education
• Sport
• Worship
• Event
• Conference

Full-Featured Keyboard Controls at a Glance
The onboard 5.5-inch HD full-color screen monitors all input channels and output images in real time. Full-featured keyboard, fast control of any function.

• Configurable HDMI Output for live presentations
• HDMI PVW port - configure for multi-view or AUX each input

Take Full Control

Integrated PTZ Camera Control
Forget about having multiple separate control panels for video and camera control. mini-edge SDI brings it all together, supporting industry standard VISCA or NDI protocol for PTZ control directly from the mixer. Control up to four separate cameras with pan, tilt, zoom and focus.

Precise Fingertip Control
Integrated joystick provides tactile control for each PTZ camera. Together with the toggle on the front panel, they can control the pan, tilt, zoom and focus of the PTZ camera. Joystick and toggle are additionally dynamically assigned to settings including scale, position and crop for enhanced usability when a layer being controlled.

Professional broadcast SDI input
Longer transmission distance and more professional broadcast SDI camera input.

Pro Color Rendering and Layers: One-Click Chroma Key
Enable presenters to be in virtual studios and environments with Chroma Key. Select from standard key colors and enable Chroma Key directly on mini-edge SDI without the need for an app. Refine color selection and tolerances from the touch screen to optimize

Pro Level Audio

Capture Every Sound
With two separate insert audio ports, mini-edge SDI has got external balanced mic and line level audio covered. All two ports accept TRS 1/4in jacks, with MIC supporting direct XLR connection too. Plus there is 48V phantom power directly from mini-edge SDI available too on MIC, negating the need for a separate DI, and instantly making studio mics native connections as they should be.

Follow the Action & Always be In Sync
Set AFV for any HDMI embedded audio so the audio switches with the video source to PVW and PGM automatically.

Configure audio delay for MIC inputs or a camera input to keep audio in sync with the video.

Monitor & Set Live
The professional audio console with dynamic button operation is both eye-catching and convenient. lt provides precise control, allowing for easy volume adjustment and enabling one - key mute and monitoring, which brings the user an excellent live-streaming experience.

• Bluetooth audio input supports

Pro Level Video

Sophisticated Multi-Layer Presentation
Assemble visuals with multiple layers of video and graphics. mini-edge SDI offers 2 full video layers plus background image, two graphic overlays from the media pool as well.

Dynamically Scalable
Each of the two assignable video layers maybe scaled, positioned and cropped with these placed over the background.

Multiple Layer Sophistication
Besides dual video sources, also add media pool graphic overlays for lower -thirds and branding logos, and switch seamlessly between graphic elements.

Intuitively Interactive Operation
Select any source or preset with control panel thumbnails and iconography that makes mini-edge SDI a natural an intuitive way to present and stream.

Transition Like a Pro
mini-edge SDI includes multiple DVE transition effects from preset to program, adding sophistication and effect.

Leverage the Power of Presets
mini-edge SDl supports saving and quick recall of 16 preset scenes, including graphics, audio, and even the parameters of the PTZ position and focus enabling smooth transitions between scenes

Go Remote
mini-edge SDI web app companion apps for laptop and mobile allow remote use from the mini-edge SDI and the video connections. Fully integrated with the RGBlink TAO cloud control streams remote too with TAO cloud.

Pro Streaming: Enhanced Streaming

H.265
Take advantage of advanced H.265 compression and encoding for higher performance streams.

Capture & Share
Connect mini-edge SDI to a laptop for instant recognition as a webcam to enable capture for apps such as OBS and more of others.

Share your presentation on Teams, Zoom or any collaboration platform.

live stream
Vertical-screen live-streaming supported, which is compatible with multiple mobile live-streaming platforms.

RTMP(s)
Stream up to four multiple platforms simultaneously directly over IP without a laptop. And with TAO cloud integrated directly into mini-edge SDI, cloud-stream up to 32 platforms or connections at the same time.

Recording
The USB 3.0 recording output interface can be directly connected to a hard drive with a maximum capacity of 2TB.

It can simultaneously record while streaming, and the recording of 160Mbps high-definition video can last 100 hours.

Audio and video can be imported and used simply by inserting a USB disk.

RGBlink mini-edge SDI EFP Features

  • mini-edge SDI
  • Embedded 5.5" (13.97cm) monitor
  • 10 input connectors (4x HDMI 2.0, 4x 3G-SDl, 2K UVC, and 2K NDI)
  • 6-CH customizable video inputs
  • Maximum 8 channels for audio mixing
  • 2-CH independent HD HDMI
  • 2K streaming and live via IP and UVC
  • Streaming supports NDI, HX2
  • Streaming and management via RGBlink TAO Cloud
  • Manual real-time control of PTZ cameras, such as zoom in/out, rotation, and focus, via VISCA or NDI
  • Third-party control and integration via free RGBlink Central Control Protocol
  • mini-EFP-4S
  • Professional aviation connector to ensure high-quality performance
  • Flexible standard connectors to meet personalized application
  • Built-in 14" (35.56cm) HD IPS monitor
  • High strength PP flight case features long-lasting durability
  • hydraulic rod support to enhance the stability
  • Powerful air-cooling system designed for outdoor use
  • 4K multi-channel streaming video mixer
  • 4x 4K HDMI inputs and 4x 3G SDI inputs
  • 1x HDMI PROGRAM Output
  • 2K streaming and live via IP and UVC
  • Streaming supports NDI, HX2
  • Streaming and management via RGBlink TAO Cloud
  • Manual real-time control of PTZ cameras, such as zoom in/out, pan/tilt, and focus, via VISCA or NDI
  • mini-ISO-4S built-in magnetic wireless charging module supports charging for mobile phones

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Key Features

  • Create engaging live streams with this all-in-one video switcher kit, ready for any event.
  • Enjoy high video quality with 4K HDMI inputs, ensuring your streams look professional.
  • Easily manage your live production with the integrated 14" display for clear monitoring.
  • Versatile compatibility with HDMI, SDI, and NDI inputs for seamless integration.
  • Stream directly to platforms via USB-C or LAN, making real-time streaming simple.
  • Portable design with included flight case, perfect for on-the-go video switching.

What's in the box:

  • RGBlink mini-edge SDI EFP All-In-One Streaming Video Switcher (Black)
  • 14" Display
  • Flight Case Suit
  • RGBlink 1 Year Limited Warranty
