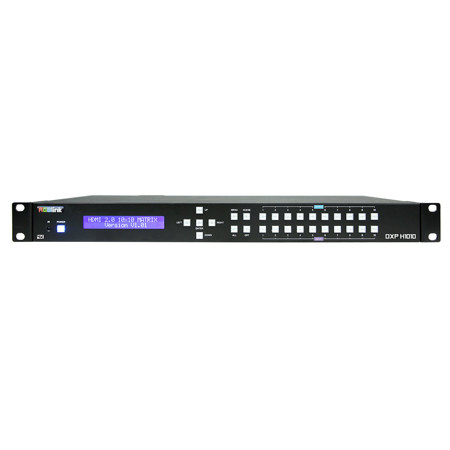

RGBlink DXP H1010 4K 10x10 HDMI Matrix Switcher with Audio Output

SKU: RB5521010010 MFR: RGBLINK-552-1010-01-0
Earn VIP Reward Points

Key Features

  • Seamlessly switch with this RGBlink 4K HDMI matrix switcher, supporting up to 10 inputs!
  • Enjoy high-fidelity audio output with Dolby TrueHD support on this HDMI matrix.
  • Control your video sources via TCP/IP, RS232, or IR with our versatile KVM switch.
  • This 10x10 HDMI matrix supports resolutions up to 4096x2160@60 for crystal-clear display.
  • Perfect for presentations, effortlessly manage multiple HDMI sources with this switcher.
  • Reliable HDMI 2.0 standard ensures optimal performance and compatibility for your devices.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$289.99

3 Year

$449.99

4 Year

$549.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

RGBlink DXP H1010 Specifications

Connectors

Connectors

Jump to...
  • Input

    HDMI: 10x HDMI-A

  • Output

    HDMI: 10x HDMI-A
    SPDIF: 2x Coaxial

  • Communication

    IR: 1x 3.5mm mini jack
    TCP/IP: 1x RJ45
    RS232: 1x DB9

  • Power

    1x DC Jack
    Input Voltage: DC 12V 6.67A (via AC plug pack supplied)

Performance

Jump to...
  • Input Resolutions

    HDMI:
    SMPTE: 480i | 576i | 720p@50/59.94/60 | 1080i@50/59.94/60 | 1080p@50/59.94/60 | 2160p@30/60
    VESA: 800 x600@60 | 1024 x768@60 | 1280 x768@60 | 1280 x1024@60 | 1366 x768@60 | 1600 x1200@60 | 1920 x1080@60 | 2048 x1152@60 | 2560 x1600@60 |3840 x2160@60 4096 x2160@60

  • Output Resolutions

    HDMI:
    SMPTE: 480i | 576i | 720p@50/59.94/60 | 1080i@50/59.94/60 | 1080p@50/59.94/60 2160p@30/60
    VESA: 800 x600@60 | 1024 x768@60 | 1280 x768@60 | 1280 x1024@60 | 1366 x768@60 | 1600 x1200@60 | 1920 x1080@60 | 2048 x1152@60 | 2560 x1600@60 |3840 x2160@60 | 4096 x2160@60

  • Audio

    LPCM 7.1 @ 192KHz | Dolby TrueHD

  • Supported Standard

    HDMI: 2.0

Environment

Jump to...
  • Temperature

    32 Degree F to 131 Degree F (0 Degree C to 55 Degree C)

  • Humidity

    10% to 95% RH

Physical

Jump to...
  • Color

    Black

  • Dimensions

    19.02 x 8.86 x 1.73" (483 x 225 x 44mm)

  • Weight

    6.44 lbs (2.92kg)

About RGBlink DXP H1010

DXP H1010 is a true 4K HDMI Matrix Switcher which allows to route any of 4 HDMI sources to any 4 HDMI displays! The 10x10 HDMI Matrix switch is a complete HDMI routing solution for True 4K HDMI systems. It supports resolution up to 4K 60Hz @ 4:4:4 and effortless control through Ethernet control, Android App Control, IR remote control, RS-232 and the front panel.

RGBlink DXP H1010 Features

  • HDMI 2.0 with 3D, HDCP 2.2 & DVI1.1 Compliant
  • Ultra-high-definition video up to 4K 60Hz @ 4:4:4 18Gbps (6Gbps per color)
  • Support HDR10, Dolby Vision, HLG
  • Supports Dolby TrueHD, Dolby ATMOS, DTS-HD MA, DTS:X, LPCM 7.1 @ 192KHz
  • Supports ARC (Audio Return Channel) function
  • Multiple control methods: Front panel buttons/IR remote control/RS232 Control
  • Built-in LCM screen & LED button at front panel provides quick view of all port connection
  • Rack mountable (1U design)
  • S/PDIF coaxial audio outputs allow audio to be de-embedded from HDMI outputs
  • Support HDMI cable lock on each HDMI input/output port

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Key Features

  • Seamlessly switch with this RGBlink 4K HDMI matrix switcher, supporting up to 10 inputs!
  • Enjoy high-fidelity audio output with Dolby TrueHD support on this HDMI matrix.
  • Control your video sources via TCP/IP, RS232, or IR with our versatile KVM switch.
  • This 10x10 HDMI matrix supports resolutions up to 4096x2160@60 for crystal-clear display.
  • Perfect for presentations, effortlessly manage multiple HDMI sources with this switcher.
  • Reliable HDMI 2.0 standard ensures optimal performance and compatibility for your devices.

What's in the box:

  • RGBlink DXP H1010 4K 10x10 HDMI Matrix Switcher
  • Power Supply
  • RGBlink 1 Year Limited Warranty
