RGBlink Q16pro Gen2 8U 4K Mediahub and Multiple Canvas Video Wall Processor

Multi-Window splicing processor for LCD & LED Videowall
Q16pro Gen2 is a high-performance video image processing system and high-performance video splicing server using pure hardware and leading-edge FPGA processing architecture. Offering a range of input and output signals via a card-based structure, and supporting hot swap of modules, and options including redundant power supplies, Q16pro Gen2 is a stable high-performance platform that can be deployed in varied applications including corporate and visual messaging as well in retail and digital signage applications The Q16pro Gen2 models allow connection of 4K video sources as well as output to 4K, with outputs offering multi-screen and multi-layer capabilities. A host of features are built in to Q16pro Gen2, including EDID management, 3D image processing, and highly configurable OSD features at high-definition.

Multi- Layer Multi-Window
Q16 pro offers up to 8-16 x 2K windows or 4 x 4K windows per output slot, Layer resources able to be freely used across any of the outputs within a slot for maximum availability and efficiency, including combinations of both 2K and 4K layer windows. Q16 pro layering allows multi-window applications for large scale and spanning multiple display outputs

Frame Sizes for Every Scale

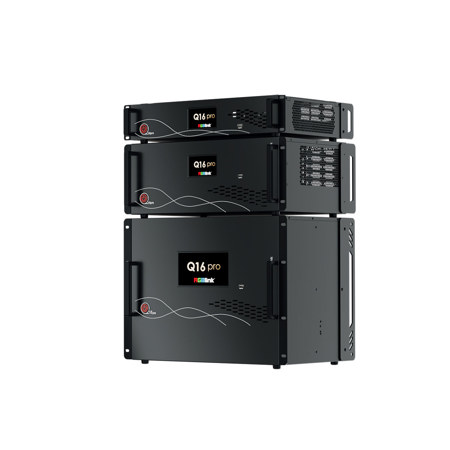

Q16pro Gen2 models range from the compact 2U through to 14U with up to 80 inputs and 80 outputs with common modules across the range. Q16pro Gen2 is truly scalable for even the largest applications.

Take Control
Configure and control Q16pro Gen2 devices from the acclaimed RGBlink XPOSE apps for laptop/desktop and mobile devices.

Input and output preview
Equipped with 2 high-definition multi-screen monitoring output interfaces, it can monitor 16 input or 16 output at the same time, Among them, 16 input source preview supports 4/9/16 screen division.

Dual network communication
Supports dual network communication, it has 1 local communication network port and 1 remote control port. In addition to remote control, the remote control port also has H.265 media remote control and monitoring functions.

Dante audio codec
Independent design, simplify the connection, easy to install Supports 32-channel audio input and output, transmits high-quality audio with low latency Dante audio management platform, easily de-embedded audio signals, and flexibly responds to a variety of audio devices.

Multi-Platform Live Streaming Server (NDI)
Breaking through the traditional processor industry limitations, the new multi-platform live broadcast server to achieve full hardware distribution of live broadcasts, distributed hard disk recording and storage, to provide a more reliable live broadcast guarantee, to meet the needs of multi-platform live broadcasts, NDI non-destructive input and output, high quality and low latency, high-definition enjoyment, and live broadcasts are more stable.

OSD Dynamic Titles
Customized text in almost any format can be overlayed on output displays. The facility supports static and dynamic arrangements including scrolling messaging.

High Performance Lossless 4K Processing
Q16pro Gen2 not only supports HDMI 2.0 and DisplayPort 1.2 4K@60 signals and is engineered end-to-end to maintain and enhance fidelity with full 4:4:4 maintained throughout. Utilizing advanced processing. engine developed RGBlink.

3D stitching
Scale and deliver 3D signals for 120Hz interpolated signals with internal frame-lock synchronization. Segmentation and fusion are completely seamless. Single key switching is available to transition between 2D and 3D on demand.

Modular Hybrid Modules
The processor offers a range of input and output modules, with signals able to be mixed-and-matched to meet requirement without in incurring overhead. Modules are easily user-fit lowering TCO and simplifying operations of Q16pro based installations.

Signal processing capability
The entire chassis input output and internal transmission are all 60 frames of RGB 4:4:4 signals. The signal supports 12bit processing, and the transmission rate of each channel can reach 5.9Gbps.

Configurable Audio Delivery
Both embedded and external/insert audio sources may be embedded to any output as well as be switched a part of video presets.
