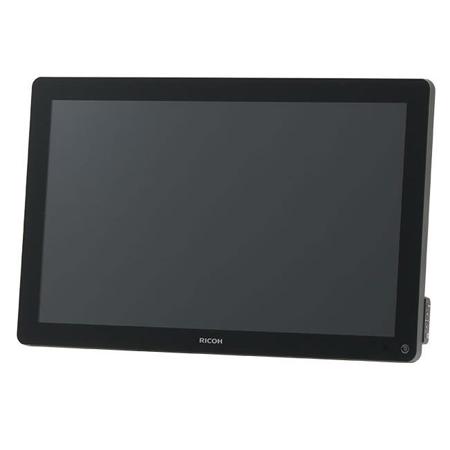

Ricoh D3210BK 32" Liquid Crystal Touchscreen Interactive Whiteboard, Black

SKU: RC432424

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Ricoh D3210BK Specifications

Display Panel

Display Panel

Jump to...
  • Panel size

    32"
    28.3" horizontal
    16.3" vertical

  • Backlight

    LCD display/LED system

  • Resolution

    1920 x 1080

  • Color

    16.77 million (8-bit color processing)

  • Brightness

    500 cd/sq. m

  • Aspect ratio

    16:9

  • Contrast ratio

    3000:1

  • Pixel pitch

    0.3637mm

  • Response speed

    Less than 10 milliseconds

  • Viewing angle (H/V)

    Left and Right: 178 Degree
    Up and Down: 178 Degree

  • Display glass

    0.7" (2mm) thick anti-glare glass

Touch Sensor

Jump to...
  • Technology

    Projected Capacitive Touch Panel (PCTP)

  • Maximum touch points

    10 (When IWB software is active, max. number of touch points is 4)

  • Touch screen interface

    USB 2.0 (Type B) located on side panel

  • Touch accuracy

    +/- 0.7" (2mm) (over 90% area)

  • Operating system support

    Multi-touch (up to 10): Windows 7, support 8, 8.1, 10

General

Jump to...
  • Video input

    Mini D-Sub 15-pin (VGA) x 1, HDMI x 1 (HDCP compliant), DisplayPort x 1 (HDCP compliant)

  • Video output

    DisplayPort x 1

  • Audio input/output

    In: 0.13" (3.5mm) Line in Jack x 1 (For VGA, DVI)
    Out: Internal Speaker (8W x 2)

  • Touch screen control

    USB 3.0 Type B x 1

  • Display control

    RS-232c x 1 (Input), RS-232c x 1 (Output)

  • Power source

    AC 100 - 240 V, 50/60 Hz

  • Power consumption operating/standby

    < 215 W / < 0.3W

  • Advanced display

    RS232 Control Daisy Chain, Picture features Mode (including Low Blue Light mode), Backlight, Adaptive Contrast (Dimming Control), Brightness, Saturation, Chroma, Phase, Sharpness, Color Temperature, Treble, Bass, Balance, Volume, Mute, Speaker, Audio Source

  • Advanced display (Contd.)

    Picture-in-Picture, Picture-by-Picture, Aspect, Adjust Screen, Touch Feature, Language, Power Save, Quick Start Mode, Control Setting, Touch Control Setting, Set Monitor ID, Advanced Information Reset

  • Remote sharing function

    Up to 20 interactive whiteboards and projector systems. Up to 20 browser viewers per interactive whiteboard (business controller only). Up to 50 remote devices (iOS, Android and Windows) per interactive whiteboard

  • Remote PC operation

    Yes

  • Dimensions (W x D x H)

    31 x 2.75 x 18.89" (789 x 70 x 480mm)

  • Weight

    33 lb (15kg)

  • UPC Code

    026649323737

About Ricoh D3210BK

Collaborate visually in virtually any space
Bring breathtaking displays and real-time collaboration directly to small groups with the RICOH Interactive Whiteboard (IWB) D3210BK. Also known as an Interactive Flat Panel Display (IFPD), this versatile and easy to-transport 32-inch device can be conveniently mounted or placed flat on any surface, making it ideal for desktops, training rooms, commercial outlets and other environments with limited space. Leverage its versatile architecture to add your choice of controllers for more secure, interactive and productive meetings. Pair the device with a wide range of video communication hardware, collaboration apps, cloud services and more for two-way interactions and share information with audiences in up to 19 other locations.

Capture attention, captivate audiences
Showcase information confidently with impressive clarity. With 10-bit processing of more than 16.7 million colors, you can present clearly defined drawings, images, video and more in brilliant 1920 x 1080 HD resolution. Don't worry about ambient lighting. The glare-free touchscreen and LED backlighting produce sharp contrasts in any environment, from meeting rooms and reception areas to exhibition spaces. In addition, you can add optional RICOH Unified Communication System Advanced (UCSA) software and create a web-based video conference in only moments, so you can monitor your audience's visual cues and personalize your message accordingly.

Add a new dynamic to any meeting, anywhere
Use the RICOH IWB D3210BK as a display-only touch screen and connect via VGA, HDMI or DisplayPort, or use your choice of an embedded controller to present with annotations, zooming and more. Simply mount the IFPD for horizontal or vertical viewing, use an optional desktop stand, or place it flat on a tabletop. Versatile placement puts your presentation closer to your audience, so multiple users can add feedback and notes easily, even simultaneously. When laid flat, you can rotate the presentation to adjust to each viewer's viewpoint. You can also create a password-protected PDF file of your notes and additions from the IFPD and distribute it to participants moments after the meeting ends.

Let everybody see for themselves
Go big with your message with the native interoperability of the RICOH IWB D3210BK. When you want to share your ideas with more people, simply connect the IFPD to a Ricoh video conferencing system or Ricoh projector and present on larger screens and surfaces in conference rooms and auditoriums. You'll maintain the same multi-point touch screen control. A projected capacitive (PCAP) touch screen lets you deftly manoeuvre between tasks, add notes, zoom and undo changes with the same finger movements and gestures you use on today's popular smartphones and tablets. Use the standard stylus pen for even more precise touchscreen control.

Present face-to-face in any space

Control real-time collaborations
With the RICOH IWB D3210BK's versatile architecture, choose between multiple controllers for fast, easy operation out of the box. For example, you can opt for a closed Ricoh business controller for maximum security. No software or modifications are allowed, and only administrators have access to configuration settings. It keeps information inside your network and stored in local files, where they can be automatically deleted after a specified time frame. Or, with a Windows-based open controller, you get to choose your own collaboration apps to expand viewing and distribution options. For example, you can use the RICOH UCS or UCS Advanced Service to collaborate with a large number or remote participants without delays, jitter or bandwidth constraints.

Expand capabilities to enhance your message
Measuring 32 inches diagonally, the RICOH IWB D3210BK is ideal for impromptu meetings in small spaces - but it can also make a huge impact with people unable to attend. Interact in real-time with up to 19 additional Ricoh IFPDs via the optional collaborative license on your network. From there, each licensed IFPD can connect to as many as 50 additional endpoints, including smartphones, tablets and laptops. Up to 1,000 people can participate whether at a remote office, at home or even in transit without incurring public cloud service fees or travel expenses. With the Windows controller, if you need to collaborate with people off your network, simply use Skype for Business, Google Hangouts, Join. Me or other public cloud service.

Showcase with speed and ease
Get your ideas in front of audiences as quickly as possible with an all-in one, easy-to-use IFPD. Regardless of the controller you choose, you can operate the display and collaborate with others without calibration, PC connection or IT support. With Quick Start mode, you can begin your presentation in moments and shut down instantly without a cooling down period. The sleek design, available in a black finish, features back- and side-ports to speed set up and ensure your message remains the focus. If you encounter any problems, Ricoh's Live Tech Support (RLTS) agent can respond immediately to a screen touch or phone call to answer your questions and resolve issues.

Ricoh D3210BK Features

  • Open or closed system controller options
  • Vivid HD 32" multi-touch screen
  • Tabletop, desktop stand or flat surface mounting
  • Integrate with video conferencing services

Key Features

  • Open or closed system controller options
  • Vivid HD 32" multi-touch screen
  • Tabletop, desktop stand or flat surface mounting
  • Integrate with video conferencing services

What's in the box:

  • D3210BK 32 " Liquid Crystal Touchscreen Interactive Whiteboard (Black)
  • Ricoh 3 Year Limited Warranty
