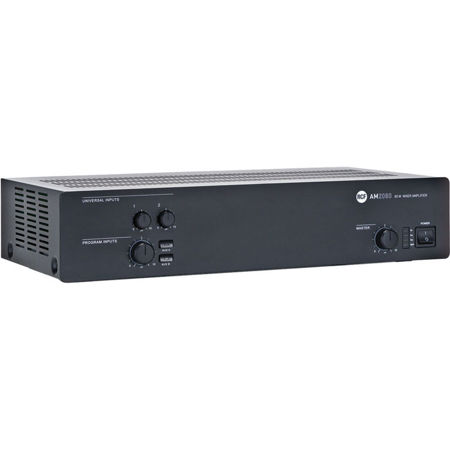

RCF AM 2080 80W 2 Mic Input Mixer Amplifier with Short Circuit/Overload Protection, 50Hz-18kHz Frequency Response, XLR Connector

The RCF AM 2080 is a 80 W mixer-amplifier, with 2 mic-line audio inputs on removable connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g. CD players, tuners, etc.). The inputs 2 also has an RJ 45 port for quick connection of an RCF BM 3001 paging microphone (through CAT5 cable). The amplifier output is available either for low impedance loudspeakers (min. 4 Ohms ) or 100 - 70 V constant voltage line (for loudspeakers having 100 - 70 V transformers). The input 1 has a signal detection circuit ('VOx') providing automatic priority operation. The inputs 1 and 2 can access the priority through an external command (connected to either the removable connector or the RJ 45 port).

A 'MUSIC ON HOLD' aux output allows to send the music (the AUX INPUT A signal) to additional amplifiers, mixers, phone systems ('music on hold' function), etc. . A 'PRE OUT' aux output is useful to send the signal (the same routed to the internal amplifier) to additional amplifiers. The 2 mic-line inputs have a high-pass filter (with a common on/off dipswitch) that are useful to improve speech intelligibility. The 2 aux inputs have independent tone controls (common for both aux inputs). Front panel LEDs indicate the device state (ON, PROT), priority circuit enabled (PRIOR) and the signal level / peak (SIG/PK).
