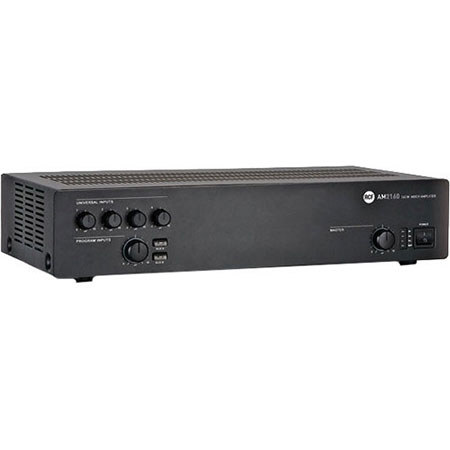

RCF AM 2160 Mixer Amplifier with 4 Audio Inputs, 50Hz-18kHz Frequency Response, XLR / RJ45 Connectors, Aux Inputs with Volume and Tone Controls

The RCF AM 2160 is a mixer-amplifiers with 4 mic-line audio inputs on removable connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g. CD players, tuners, etc.). 160 W nominal output power available either for low impedance loudspeakers or 100 - 70 V constant voltage line. The amplifier output is available either for low impedance loudspeakers (min. 4 Ohms ) or 100 - 70 V constant voltage line (for loudspeakers having 100 - 70 V transformers). Input 1 has a signal detection circuit ('VOx') providing automatic priority operation. All inputs 1, 2, 3 and 4 can access the priority through an external command (connected to the removable connector). Inputs 2 and 3 also have an RJ 45 socket for quick connection of an RCF BM 3001 paging microphone (through CAT5 cable).

The MUSIC ON HOLD aux output allows to send the music (the output signal of the device connected to the AUX INPUT A) to additional amplifiers, mixers, phone systems ('music on hold' function), etc.. The 4 mic.-line inputs have a common 'presence' control and separate highpass filters that are useful for improving speech intelligibility. The 2 aux inputs have independent tone controls (common for both aux inputs). Front panel LEDs indicate the device state (ON, PROT), the priority activation (PRIOR) and the signal level (SIG/PK).
