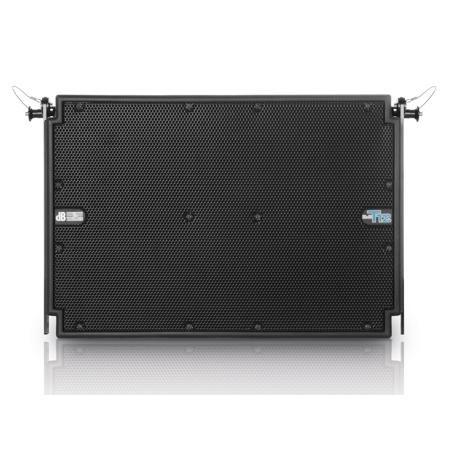

dB Technologies DVA T12 3- Way Active Line-Array Module with Power Cable DPC15, 60 - 19.000Hz Frequency Response, 136dB SPL, DSP 56 Bit Processor Controller

Enhance your live sound reinforcement systems with the DVA T12 3-Way Active Line-Array Module, a product of dBTechnologies' commitment to developing and manufacturing high-quality speaker components. This professional-grade module is a significant advancement from the successful DVA T4 line array system, offering more power and greater range while maintaining the ease of setup and installation.

The DVA T12 is a fully powered three-way unit, designed to be scalable to setups of any size. It features a lossless signal path, eliminating the need for speaker cables, and sequentially configurable array segments for maximum flexibility. The high-end digital controller (DSP) on board ensures precise sound processing, and the integrated RDNet port makes it network-ready.

This advanced module is equipped with state-of-the-art neodymium speakers and high-performance digital amps, delivering a total output power of 1,410W. In combination with top-tier DSP and premium quality AD-DA converter, the DVA T12 produces high-definition sonic images with a massive SPL, making it ideal for large sound reinforcement applications.

Despite its compact size, weighing just 29kg, the DVA T12 packs a powerful punch with its 12" neodymium woofer in a band-pass housing, covering the low frequency range down to 60 Hz. The two 6.5" neodymium midrange speakers are placed close together to maximize coherent coupling and response for critical midrange frequencies. The 1" neodymium HF drivers feature 1.4" Mylar diaphragms, delivering richly detailed signals with remarkably linear frequency response.

The DVA T12 ensures consistent coverage with its constant directivity horns, HF drivers, and midrange speakers optimized to deliver a uniform 100-degree-by-10-degree coverage pattern. The module can be adapted to suit various sound reinforcement applications by varying the length of the array and adjusting the splay between individual components.

The DVA T12 is also compatible with DVA T8 units, allowing for use as down-fills in large PA systems or as far-fill extensions. The PFC switched-mode power supply allows up to four DVA T12 units to be connected to one phase, making it a versatile and powerful addition to your sound reinforcement setup.
