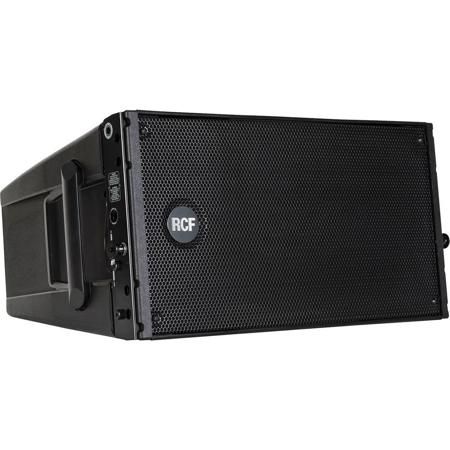

RCF HDL10A 1400W Line Array Module, 65Hz-20kHz Frequency Response, 133dB Maximum SPL, 100-15 deg. Coverage Angle, 2x 8.0" Woofer, 2.0" Compression Driver

SKU: RCFHDL10ALAM

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What type of events is the RCF HDL10A 1400W Line Array Module best suited for?

The RCF HDL10A is ideal for live sound reinforcement at concerts, festivals, and large-scale events where high-quality sound and powerful output are essential.

Can the RCF HDL10A Line Array Module be used for both indoor and outdoor venues?

Yes, with its high maximum SPL and wide coverage angle, the RCF HDL10A is suitable for delivering clear, high-quality sound in both indoor and outdoor settings.

What are the benefits of having a 100-15 degree coverage angle in the RCF HDL10A?

The 100-15 degree coverage angle in the RCF HDL10A ensures even sound distribution, providing a consistent audio experience for audience members throughout the venue.

Does the RCF HDL10A Line Array Module require an external amplifier?

No, the RCF HDL10A is an active PA speaker with built-in amplifiers, making it easy to set up and use without the need for additional amplification.

How does the dual 8.0" woofer design enhance the sound quality of the RCF HDL10A?

The dual 8.0" woofers in the RCF HDL10A work together to produce a deep and rich bass response, complementing the high and mid frequencies for a well-rounded and full sound profile.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

RCF HDL10A Specifications

  • Frequency Response

    65 Hz - 20 kHz

  • Maximum SPL

    133 dB

  • Horizontal Coverage Angle

    100 deg.

  • Vertical Coverage Angle

    15 deg.

  • Compression Driver

    2.0" (5.1 cm) with 2.5" (6.4 cm) voice coil

  • Woofer

    2x 8.0" (20.3 cm) with 2.0" (5.1 cm) voice coil

  • Input Connectors

    XLR-Jack

  • Output Connectors

    XLR

  • Input Sensitivity

    -2 dBu / +4 dBu

  • Crossover Frequencies

    800 Hz

  • Protection

    Thermal, RMS

  • Limiter

    Soft limiter

  • Controls

    Cluster, HF, high curving, indoor

  • Peak Power

    Total: 1400 W
    High Frequencies: 400 W
    Low Frequencies: 1000 W

  • RMS Power

    Total: 700 W
    High Frequencies: 200 W
    Low Frequencies: 500 W

  • Cooling

    Convection

  • Other Connectors

    PowerCON in/out

  • Material

    Composite PP, wooden reinforced

  • Hardware

    Rigging flyware

  • Handles

    2 side

  • Dimensions

    11.5 x 22.4 x 17.1" / 292.10 x 568.96 x 434.34mm

  • Weight

    56.0lbs / 25.40kg

  • UPC Code

    8024530010850

About RCF HDL10A

Take your live sound reinforcement to the next level with the RCF HDL10A 1400W Line Array Module. This powerful and high-quality active PA speaker is engineered to deliver unparalleled audio performance for concerts, festivals, and large-scale events. With its robust 1400W peak power output, the HDL10A ensures that your sound is not only loud but also crystal clear.

The module boasts an impressive frequency response range of 65Hz-20kHz, enabling it to reproduce the full spectrum of sound with exceptional accuracy and detail. Whether you're amplifying the deep bass of electronic music or the high notes of a live orchestra, this line array module captures the essence of every genre.

Experience the advanced technology of the HDL10A's dual 8.0" woofers, which work in harmony to produce a rich and powerful bass response. Complementing the low-end are the precision 2.0" compression drivers, which handle the mids and highs with finesse, ensuring that vocals and instruments cut through even in the most demanding environments.

With a maximum SPL of 133dB, the RCF HDL10A is capable of reaching every corner of your venue without distortion. The coverage angle of 100-15 degrees is meticulously designed to provide even sound distribution, so every member of your audience enjoys the same high-quality audio experience, regardless of their location.

The HDL10A's durable construction and versatile design make it an ideal choice for touring and permanent installations alike. Its advanced sound projection and clarity set it apart from alternatives, making it a go-to solution for audio professionals seeking a reliable and efficient line array system.

Incorporate the RCF HDL10A 1400W Line Array Module into your audio setup and ensure that your events are remembered for their exceptional sound quality. This module is not just a speaker; it's an investment in a superior auditory experience for any live sound application.

RCF HDL10A Features

  • High-performance 1400W Line Array Module for superior sound reinforcement
  • Broad frequency response range of 65Hz-20kHz for accurate sound reproduction across genres
  • Dual 8.0" woofers and 2.0" compression driver for a full range of sound frequencies
  • Impressive maximum SPL of 133dB, ideal for large venues and outdoor events
  • Wide coverage angle of 100-15 degrees for even sound distribution
  • Durable and versatile design, suitable for both touring and permanent installations

Key Features

  • Experience superior sound quality with this RCF line array module, perfect for live sound.
  • Achieve powerful audio with a 1400W peak, ideal for PA systems in large venues.
  • Enjoy wide sound dispersion with 100-15° coverage, ensuring every listener is reached.
  • The dual 8" woofers deliver exceptional bass, enhancing your overall audio experience.
  • Durable composite construction ensures reliability, making it perfect for touring sound.
  • Optimize your setup with versatile input/output options, including XLR and PowerCON.

What's in the box:

  • RCF HDL10A 1400W Line Array Module
  • RCF 1 Year Limited Warranty
