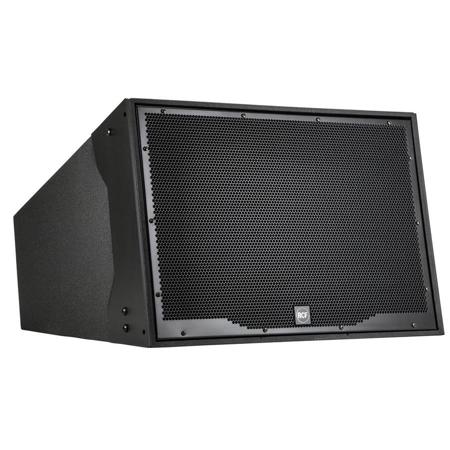

RCF HL 2290 Horn Loaded Two Way Array System with 2x 12" Precision Woofer, 22.5x90deg., Single

The HL 2290 is a horn loaded two-way full range array system that incorporates a 2x 12" woofer and a 2.0" exit 4.0" voice coil titanium compression driver for mid distance and long throw applications. The system is very compact and provides very high output and accurate voice and sound reproduction. The system is equipped with the latest generation of RCF precision transducers. The system has a vertical dispersion of 22.5deg. and 90deg. horizontal and is ideally used in point source configuration for mid distance applications or can be clustered with narrower angles for long throw applications.

The loudspeaker enclosure shape is trapezoidal and offers a 22.5deg. coupling angle each side. Connections to the amplifier are made through a watertight Amphenol multi-pole connector. The grille is in custom perforated steel, epoxy coated, with open-cell fibers and water repellent woven fabric backing. The cabinet is constructed of multi-ply Baltic birch marine plywood and finished in a very resistant, textured, polyurea black paint. The cabinet is equipped with 12 x M 8 brass inserts, a stainless steel U-Bracket and pair of spacers for 90deg. mounting. The front logo is in aluminum and rotatable. The grille is in custom perforated aluminum with open-cell fibers and water repellent woven fabric backing
