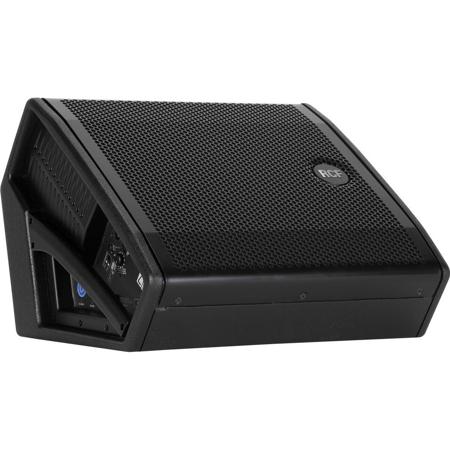

RCF NX10-SMA 400W Active Coaxial Stage Monitor, 60Hz-20kHz, 127dB Max SPL, 10" Neo Woofer, 1" Neo Compression Driver, 60x60 deg. Horn, Single

The maximum flexibility philosophy has been maintained for RCF NX10-SMA so that it is possible to use it as a portable PA system, thanks to the rugged powder coated steel pole mount installed on the side. The newly designed 10"+1" coaxial neodymium transducers assure outstanding audio quality and definition as well as an extremely lightweight of the final system. The advantages of the coaxial transducers are the complete absence of feedback and, thanks to the coherent single spherical wave front with a perfect dispersion control, a perfect listening in every position. The design is powered from a large sized single neodymium ring magnet that provides an extremely high flux density and BL factor.

The new hyper-vented aluminum basket and magnetic assembly design provide an excellent heat dissipation and lower power compression. Special air-forced ventilations are provided for voice coil, magnet assembly and basket. A 2.5" voice coil combined a strength fiberglass former and aluminum wire drives the mid-bass cone with high efficiency and a good extension. The 1.7" dome compression driver, loaded to a 60deg. conical waveguide, provides a clear vocal output and a perfect high frequency extension

The NX10-SMA Coaxial Stage Monitor is provided with brand new digital amplifiers with powerful DSP processing. The NX10-SMA is equipped with a 400 W amplifier, 300 W feed the low frequencies and 100 W are used for the high frequencies. In order to control the response of the speakers in such different applications, RCF has incorporated two special Equalization Modes: Floor, for stage monitoring and Free Field, for the use of the speakers as a stand-alone PA system.

The input board is fully equipped in order to configure the stage monitors for any stage situation with XLR Input and Output Link, Jack Input, Volume, Input Sensitivity Switch, Free Field - Floor Switch, Status LEDs, Powercon AC Input and Output Link. Cabinet is made in Baltic Birch plywood, finished with an extremely resistant paint for an extensive use on the road. An ergonomic side handle, integrated with the input panel, is provided for an easier transport.
