RCF P5228-L Specifications

  • System: Frequency Range (-10 db)

    80 Hz - 20 kHz

  • System: Frequency Range (-3 db)

    100 Hz - 20 kHz

  • System: Horizontal coverage angle(-6 db)

    90deg.

  • System: Vertical coverage angle (-6 db)

    20deg.

  • System: Directivity factor; Q

    11

  • System: Sensitivity

    98 dB, 1W at 1m

  • System: Rated maximum spl

    131 dB, at 1m

  • System: Nominal impedance

    8 Ohms

  • System: Input power rating rms

    500 W

  • System: Input power rating peak

    2000 W

  • System: Recommended amplifier

    1000 W

  • System: HF protection

    Dynamic

  • System: Crossover

    1.3 kHz

  • Transducers: Low frequency

    Woofer: Dual 8" (203.2mm) woofer, 2.5" (63.5mm) voice coil
    Driver: Dual 1" (25.4mm) throat, 1.75" (44.45mm) coil diaphragm assembly

  • Transducers: Nominal impedance

    Woofer: 16 Ohms
    Compression Driver: 16 Ohms

  • Transducers: Input power rating

    Woofer: 300 W AES; 1200 W Peak
    Compression Driver: 50 W AES; 200 W Peak

  • Transducers: Sensitivity

    Woofer: 95 dB, 1W at 1m
    Compression Driver: 109 dB, 1W at 1m

  • Applications

    Outdoor Sound Reinforcement in medium-large spaces
    High-Level AV Playback
    Flown cluster configurations
    Large speech systems
    Music Sound Reinforcement

  • Enclosure

    Trapezoidal, 2deg. Horizontal side angles, 15deg. Vertical side angle, 8mm Polyethylene roto-molded

  • Rigging inserts

    4x M8 inserts

  • Grille

    Custom perforated aluminum grille with open-cell fiber and water repellent woven fabric backing

  • Input connectors

    4 pole Amphenol

  • Dimensions (H x W x D)

    22.28 x 10.55 x 16.23" / 565.91 x 267.97 x 412.24mm

  • Weight

    30.8lbs / 13.97kg

  • UPC Code

    8024530008703

About RCF P5228-L

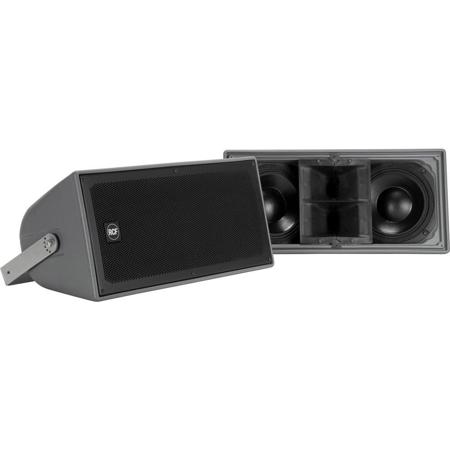

The RCF P5228-L is an IP55 (International Protection Rating) weatherproof full range, two-way gray line array loudspeaker module, offering substantial power and efficiency for a variety of professional indoor or outdoor applications. The high frequency section includes two constant directivity CMD horn, each loaded with a 1" RCF Precision Neodymium compression driver with a 1.75" diaphragm assembly for smooth, wide horizontal dispersion and highly controlled 20deg. vertical coverage. The low-frequency transducers are two 8" woofers with a 2.5" voice coil.

The cabinet is a single piece rotational molded enclosure, made in medium density polyethylene, fully UV protected equipped with 4 x M 8 brass inserts and a stainless steel U-Bracket. Connections to the amplifier are made through a watertight multi-pole connector. The grille is in custom perforated aluminum with open-cell fibers and water repellent woven fabric backing.

RCF P5228-L Features

  • Weatherproof cabinet IP55
  • Aluminum grill and stainless steel bracket
  • Two 8" high-output LF transducers with 2.5" voice coil
  • Precision Neodymium 1" compression driver with 1.75" diaphragm assembly
  • 90deg. x 20deg. constant directivity horn
  • 2deg. x 15deg. enclosure sides for array configurations
  • Active Mosfet Compression Driver Protection
  • LICC (Low Impedance Compensated Crossover) network
  • Input connector 4 pole Amphenol IP67

Key Features

  • Weatherproof cabinet IP55
  • Aluminum grill and stainless steel bracket
  • 90deg. x 20deg. constant directivity horn
  • Active Mosfet Compression Driver Protection
  • LICC (Low Impedance Compensated Crossover) network
  • Input connector 4 pole Amphenol IP67

What's in the box:

  • RCF P5228-L 2x 8 " 500W Indoor/Outdoor 2-Way Speaker
  • 4x M8 Brass Insert
  • Steel U-Bracket
  • RCF 3 Year Limited Warranty
