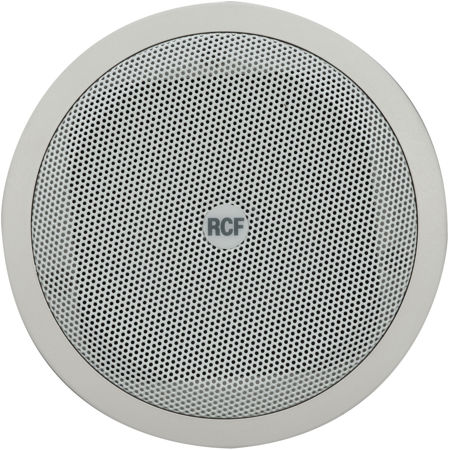

RCF PL 40 3.5" Coaxial Ceiling Speaker with Line Transformer, 16W Peak Power, 100dB SPL, 90Hz-20kHz, 88dB, 8 Ohms, 120x120deg., Single, White

SKU: RCFPL40

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the frequency response of the RCF PL 40 3.5" Coaxial Ceiling Speaker?

The RCF PL 40 3.5" Coaxial Ceiling Speaker has a wide frequency response range of 90Hz-20kHz, enabling it to produce clear and detailed sound across a variety of applications.

Can the RCF PL 40 3.5" Coaxial Ceiling Speaker be installed on walls?

Yes, the RCF PL 40 3.5" Coaxial Ceiling Speaker is designed for versatile installation. It can be flush-mounted in false ceilings or panels, and can also be attached to walls using a special accessory for surface mount installation.

What power options does the RCF PL 40 3.5" Coaxial Ceiling Speaker offer when connected to a 100V line?

When connected to a 100V line, the RCF PL 40 3.5" Coaxial Ceiling Speaker offers selectable power options of 8W, 6W, 4W, or 2W. This allows you to tailor the sound output to your specific audio requirements.

What makes the installation of the RCF PL 40 3.5" Coaxial Ceiling Speaker easy?

The RCF PL 40 3.5" Coaxial Ceiling Speaker features a unique three-terminal system that eliminates the need for screws or other attachment elements. This makes the setup process quick and hassle-free.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

RCF PL 40 Specifications

  • Loudspeaker

    3.5" / 88.9mm Full Range

  • Power (on 8 Ohm load)

    8 / 16 W (RMS / Music power)

  • Power

    8 W - 6 W - 4 W - 2 W (100V)

  • Sensitivity

    88 dB (1 W / 1 m)

  • Max. SPL (6W/1m)

    100 dB(A) (1 m / POWER MAX)

  • Frequency Response

    100 Hz - 20 kHz

  • Angle of coverage

    160/140/100deg. at 1/2/4 kHz (hor.)

  • Connector

    5 pin terminal strip

  • Main body material

    Plastic

  • Grill material

    Steel

  • Flush-mounting hole

    Dia. 122mm / 4.8"

  • Max ceiling thickness

    4mm / 0.16"

  • Relative humidity

    90% non condensing

  • Dimensions

    Dia. 130 x 110mm / 5.12 x 4.33"

  • Weight

    1kg / 2.2lbs

About RCF PL 40

What sets the RCF PL 40 3.5" Coaxial Ceiling Speaker apart is its blend of superior sound quality, elegant design, and versatile installation options. This high-quality, durable speaker is designed to be seamlessly flush-mounted in false ceilings or panels, enhancing the aesthetic appeal of any space while delivering exceptional audio performance.

The PL 40 features a 3.5" full-range loudspeaker, capable of producing clear, detailed sound across a wide frequency response range of 90Hz-20kHz. This makes it an ideal choice for various applications, from home entertainment systems to professional audio setups.

Equipped with a line transformer, the PL 40 allows for direct connection to constant voltage systems at 70V or 100V. This efficient speaker offers selectable power options of 8W, 6W, 4W, or 2W when connected to a 100V line, providing flexibility to match your specific audio requirements.

The PL 40 also stands out for its easy installation process. Thanks to a unique three-terminal system, it eliminates the need for screws or other attachment elements, making the setup process quick and hassle-free.

In addition, the speaker's stylish white finish and 120x120 degree coverage make it a reliable and visually pleasing addition to any audio system. Whether you're looking to enhance your home audio experience or upgrade your professional sound equipment, the RCF PL 40 3.5" Coaxial Ceiling Speaker is a top-notch choice.

RCF PL 40 Features

  • Easy to install
  • Simple power settings

Key Features

  • Elegant 3.5" full-range coaxial ceiling speaker for high-quality audio in any setting
  • Wide frequency response of 90Hz-20kHz ensures clear, detailed sound across all applications
  • Versatile installation options with flush-mount design and special surface mount accessory
  • Direct connection to 70V or 100V systems with a line transformer for efficient setup
  • Selectable power taps at 8W, 6W, 4W, or 2W on a 100V line for tailored sound output
  • Quick and easy installation with a screw-free three-terminal system

What's in the box:

  • RCF PL 40 3.5 " Coaxial Ceiling Speaker with Line Transformer
  • Connection Terminal
  • Steel Grill
  • RCF Warranty
