RCF TT25-SMA Active Precision Stage Monitor with 3.5" Voice Coil, 750W Amplifier Total Power, 131dB Max SPL, 50-20000Hz, XLR In/Out, Powercon In/Out

The RCF TT25-SMA Active Precision Stage Monitor a is a full range, high power active system that sets a new standard in the touring and theatre sound reinforcement. By producing fl at amplitude and phase responses, full-range bandwidth and exceptional impulse response, the TT25-SMA far exceeds the capabilities of conventional stage monitors.

The TT25-SMA horn on a coaxial transducer exhibit constant Q. The beamwidth remains consistent across the horn's operating frequency range and coverage (60-degree conical) allows the performer great freedom of movement within the coverage area. Frequency response is uniform across the specified beamwidth, with minimal side lobes.

The compact, active, TT25-SMA enclosure houses a new design coaxial 15-inch neodymium cone driver and a 64-mm diaphragm compression driver along with phasecorrected control electronics and amplification. The amplifier section features 750 watt switching power supply module, 500 watt low frequency digital amplifier module, 250 watt high frequency digital amplifier module, extra capacitor bus able to sustain the voltage for 100 ms burst signals. The total available power supply power is 750 watts and can be distributed to the 2 final amplifier sections. Each amplifier section has a very high maximum output power capability in order to provide, when necessary, maximum output bursts in a specifi c frequency range.

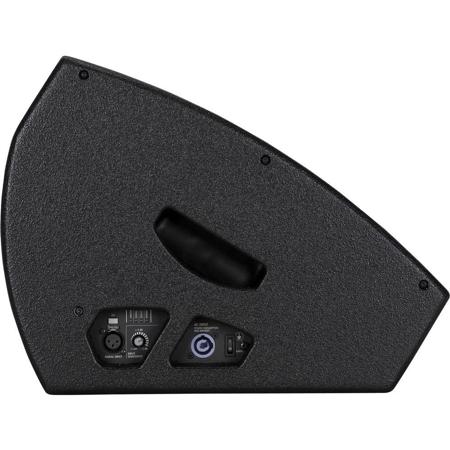

The input section provides In/Out XLR connectors, system sensitivity control, side to side coupling correction switch, 4 status LEDs. The high quality analog input board provides linear phase crossovers, system equalization, fast limiter, RMS limiter and confi guration control preventing driver over-excursion and assuring high sound pressure levels with minimal power compression. The AC panel features In/Out Powercon connectors, On/Off switch. The cabinet is in marine baltic birch plywood, coated with high resistance epoxy paint. The cabinets features 2 side handles.
