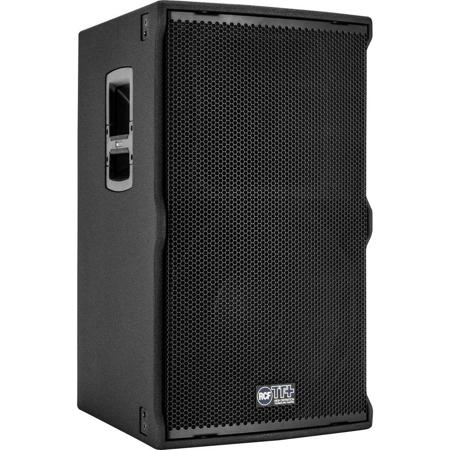

RCF TT5-A Active High-Output 2-Way Speaker with 4" Voice Coil, 1600W Amp Total Power, 136dB Max SPL, 45-20000Hz Frequency Response, RDNet Ready, Single

SKU: RCFTT5A

This item is no longer available.

Overview
Compare
Q&A

Questions & Answers

Reviews about this item

Review Summary

About RCF TT5-A

The RCF TT5-A Active High-Output 2-Way Speaker comes with the large sized horn, the incredibly fast woofer. TT5-A offers the highest performance from a wide dispersion, active, 2 way system. High output and dynamics, extreme linearity and fidelity makes the TT5-A a unique product in its category. The TT5-A is the ideal professional two-way speaker for mid field and near field sound reinforcement, live performance and events. The RCF Precision newly designed 4" compression driver assures the exceptional sound projection and pattern control and the high power 15" neodymium woofer with a 4" voice coil assures a very controlled and precise bass response perfect for indoor applications such as theatres. A fully optimized T-pole design generates the minimum amount of flux modulation, the unique dual-forced air venting system assures a very efficient voice coil ventilation for minimum power compression and higher power handling.

The integration of the 1600 Watt, 2 way digital amplification and the advanced digital processing set a new standard for distortion, noise and thermal efficiency TT5-A is equipped with a state of the art input board which features XLR In/ Out, Gain reduction, Time Delay, Speaker presets, RDNet ready option, RDNet bypass switch, 4 status LEDs, Powercon In/Out TT5-A features a 96 Khz, 32 bit DSP processing and a dedicated networking board. Using proprietary RDNet protocol is possible to monitor all the system parameters, form the input to the status of each single amplifier. Having a Dsp on board of each cabinet, it is possible to address to single cabinets or groups of cabinets specific presets or modifications of parameters like gain, equalization or delay. The RDNet protocol is based on RS-485 communication protocol, it is very stable and it is possible to send and receive data on a simple XLR cable.

All new TT+ Two-Way Systems feature a newly designed multifunctional rear encoder to easily control all the speaker functions (Gain reduction, Delay, Speaker presets), even without network connection. Foam-backed grilles hide the drivers from view for pleasing aesthetics. The speaker is equipped with a complete set of integrated rigging mechanics for rental or installation. Dedicated accessories to create clusters are available.

What's in the box:

  • RCF TT5-A Active High-Output 2-Way Speaker
  • RCF 3 Year Parts and Labor Limited Warranty
