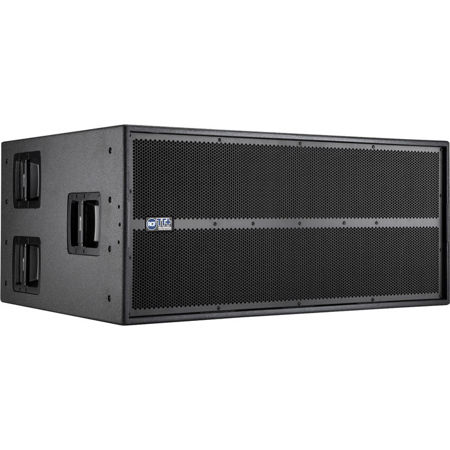

RCF TTS36-A Active High Power Subwoofer with 2x18" Neo Woofer & 4.5" Voice Coil, 4000W Amplifier Power, 143dB Max SPL, 35-120000Hz, XLR In/Out, Single

The RCF TTS36-A is a high power, high output active subwoofer system that sets a new standard in the touring sound reinforcement. The new 18" neodymium design represent the result of many years dedicated in pioneering new solutions for the transducers technology. The low-frequency transducers are RCF Precision high-power 18" woofers with a 4, 5" inside/outside voice coil to minimize power compression and extend the life of the product. The TTS36-A amplifier section features 2 x 2000 Watt highly advanced digital amplifier modules. The power amplifiers and the input board are housed on a heavy duty aluminum paned suspended from the main cabinet with flexible mounts to obtain the best insulation from vibrations of the electronic parts. Each module features Power Factor Correction (PFC), Separated power supply and amplification, High efficiency, very low consumption, two "on board" ventilation fans and comprehensive, smart protection features: thermal, overcurrent, non audio signals.

The input section provides: In/Out XLR connectors, Crossover Out XLR connector, System sensitivity control, crossover set-up (90 Hz - 120 Hz ), High pass set-up (35 Hz - 50 Hz), 4 status LEDs, RDnet Ethercon In/Out connectors The TTS36-A is equipped with a dedicated RDnet networking board. It is possible to monitor all the system parameters, form the input to the status of each amplifier, to address to single cabinets or groups of cabinets specific presets or modifications of parameters like gain, equalization or delay. It's possible to create subwoofer cadioid systems using groups of three modules The TTS36-A cabinet is built in Baltic birch plywood and protected with heavyduty coating. The internal structure is braced and reinforced and all the parts are assembled on metal inserts with metric screws. The front grille is powder coated a features and special foam backing very transparent to the sound.
