Review Summary
Desktop
Laser-beam scanning & electro photographic printing with dual component toner development, 4-drum tandem method
10.1" Smart Operation Panel color touchscreen with integrated USB 2.0 host port and SD card slot
60 ppm (B&W/Full-color)
20 seconds or less
7.3 seconds
B&W: 3.1 seconds or less; Full-color: 4.6 seconds or less
Near 100% productivity for all paper sizes
Up to 1200 x 1200 dpi
550-Sheet x 2 Paper Tray + 100-Sheet Bypass Tray (1,200 sheets total capacity)
4,700 Sheets (Standard Trays 1 & 2 + 2,000-Sheet LCT + 1,500-Sheet Side LCT + 100-Sheet Bypass)
Standard: 500 sheets, face down (8.5" x 11" or smaller); 250 sheets, face down (8.5" x 14" or larger)
Maximum: Up to 4,000 sheets with Finisher, Bridge Unit and 4-Bin Mailbox
Standard Tray 1: Fixed for Letter (8.5" x 11") (216 x 279 mm), A4, A5
Standard Tray 2 and Optional Paper Feed Units: User adjustable up to 12" x 18" including Letter (8.5" x 11"), Legal (8.5" x 14"), Exec (10.5" x 7.25"), Ledger (11" x 17"), A3, A4, A5, A6
Custom Sizes: 3.55" x 5.83" - 12.6" x 18" (90 x 148 mm to 320 x 457 mm)
Envelopes for Tray 2: Com10, Monarch, C5, C6, DL
Envelopes for Optional Paper Feed Units: Com10, C5
Bypass Tray: User adjustable up to 12" x 18" including 5.5" x 8.5" to 11" x 17" (140 x 216 mm to 279 x 432 mm), A3, A4, A5, A6
Custom Sizes: 3.55" x 5.83" to 12.6" x 49.6" (90 x 148 mm to 320 x 1260 mm)
Envelopes: Com10, Monarch, C5, C6, DL
Optional 2,000-Sheet LCT and Optional 1,500-Sheet Side LCT: Fixed for Letter (8.5" x 11") (216 x 279 mm), A4
When Duplexing: 3.55" x 5.83" to 12.6" x 18" (90 x 148 mm x 320 x 457 mm)
Paper Weights Standard Trays: 16 - 82 lb. Bond/ 170 lb. Index (60 - 300 g/m2 )
Bypass Tray: 14 - 82 lb. Bond/ 170 lb. Index (52 - 300 g/m2 )
Optional Paper Feed Units, Optional 2,000-Sheet LCT and Optional 1,500- Sheet Side LCT: 16 - 82 lb. Bond/ 170 lb. Index (60 - 300 g/m2 )
Duplex Unit: 14 - 68 lb. Bond/ 140 lb. Index (52 - 256 g/m2)
All Sources: Plain Paper, Recycled Paper, Color Paper, Letterhead, Special Paper 1-3, Card Stock, Bond Paper, Preprinted Paper, Coated Paper
Envelopes: Com10 and C5 envelopes can be fed using Standard Tray 2, Bypass Tray and Optional Paper Feed Units Bypass Tray Only: Labels, OHP
120 - 127V, 60 Hz
Operating: 1,584 W or less
Sleep Mode: 0.7 W
2.8 kWh/week
Intel R Atom Processor BayTrail-I 1.75 GHz
2GB RAM
Standard 320GB
Standard: PCL5c/e, PostScript3 emulation, PDF Direct emulation, Direct Media Print (JPEG/TIFF), PJL, RPCS
Optional: Genuine IPDS Host Print, XPS (via download), Genuine Adobe PostScript 3, PDF Direct from Adobe, PictBridge, Universal Driver (via download)
Standard: PCL - 93, P3/PDF emulation PS3/PDF - 93
Optional: Adobe PS3/PDF - 136, IPDS - 108
10Base-T/100Base-TX/1000Base-T Gigabit Ethernet, High Speed USB 2.0 Type B, Dual USB 2.0 Host Type A, USB 2.0 Type A/SD Card Slot integrated into Smart Operation Panel (for Print from Portable Media)
IEEE 802.11a/b/g/n, IEEE 1284, USB 2.0 Port
Standard: TCP/IP (IPv4/IPv6)
Optional: IPX/SPX
Windows Vista/7/8/8.1/10/Server 2008/ Server 2008R2/Server 2012/Server 2012R2; Citrix Presentation Server 4.5, Citrix XenApp 5.0+; Mac OS X 10.8 or later; SAP R/3; Novell NetWare Server 6.5 (option is required), UNIX (Using Ricoh UNIX filter): Sun Solaris 9/10, HP-UX 11.x/11i v2/11i v3, SCO OpenServer 5.0.7/6.0, RedHat Linux Enterprise V4/V5/V6, IBM AIX 5L V5.3/ V6.1/V7.1
Device Manager NX Series, SmartDeviceMonitor for Admin and Client, SmartDeviceMonitor for Admin Accounting Report Package, Web SmartDeviceMonitor, Web Image Monitor, Remote Communication Gate Type S, At Remote
DataOverwriteSecurity System (DOSS), Authentication (Windows/ LDAP/Kerberos/Basic/User Code/802.1.x Wired), Wireless LAN Security (WPS/IEEE802.11i/IEEE802.11w), Encryption (Address Book/Authentication Password/SSL Communication/S/MIME/IPsec Communication/HDD/SMTP over SSL/TLS/Transport Layer Security/ SSH/Wireless LAN), Network Protocols ON/OFF, IP Address Filtering, Quota Setting/Account Limit, Compulsory Security Stamp, Unauthorized Copy Prevention and Mask Type for Copying
Total HDD Capacity: 320GB (shared with other functions)
Maximum Stored Documents: 3,000 files
Maximum Pages/Document: 1,000 pages
Maximum Stored Page Capacity: Approx. 9,000 pages total
23.1 x 27 x 34" (58.67 x 68.58 x 86.36cm) (Standard Configuration)
187 lbs (84.82kg)
026649081064
Create your own professional print environment

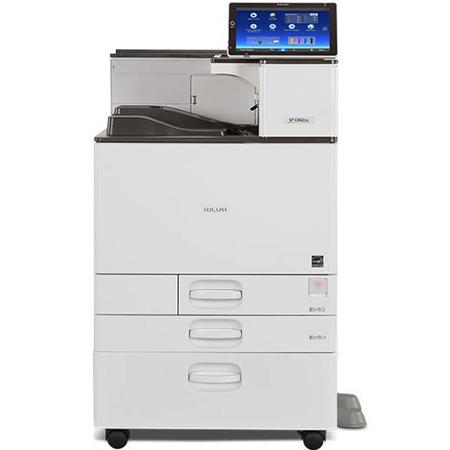

Use the SP C842DN Color Laser Printer to print high-quality direct mailers, brochures, labels, point-of-sale displays and more in house in less time for less money. Transition between jobs quickly with print speeds up to 60 pages per minute (ppm). Stock up to 4,700 sheets to work continuously with fewer delays. Optimize user productivity by checking printer status from across the room with an available Attention Light. Replace toner and consumables in moments without technical assistance.
Prints up to 60 ppm
1200x1200 dpi max print resolution
Paper capacity up to 4,700 pages
Keep pace with in-house professional color printing at high speeds and low cost
Make your mark with color
Keep colors bright and text tight with our proprietary toner and 1200 x 1200 dpi resolution. Audiences will notice smoother gradations between colors for more lifelike reproductions.
Finish big on a smaller budget
Add professional finishing in-house with several automated options. Use the Internal Multi-Fold Unit to automate four different types of folding, including tri-folds and z-folds. Use the 1,000-Sheet Hybrid Staple + Stapleless Finisher and create document sets without staples in schools and other environments where staples are discouraged.
Hit your target with more media
Take advantage of six paper sources, including large capacity trays, for incredible versatility and extended runs. Use the 100-Sheet Bypass Tray for labels, envelopes, thicker stocks up to 300g/m2 and 49.6-inch-long banners. Print SRA/12.6" (SRA3) output with crop marks and color bars for high-end projects. Organize every project with a convenient 4-bin mailbox. Reduce misfeeds with auto-draw paper trays.
Slide into customizable convenience
Swipe. Pinch. Flick. Scroll. Use Workstyle Innovation Technology to simplify the way you work on the all-digital 10.1" Smart Operation Panel. Choose from multiple interfaces and create your own workflow shortcuts. For specific tasks, such as printing files from shared folders, simply download an app from the Ricoh Application Site. You can also use the site to access Smart Operation Panel how-to videos.
Make a big production with a little integration
Add plug-and-play Ricoh or third-party workflow software solutions to automate tasks from the Smart Operation Panel. For example, RICOH Streamline NX combines print and device management, accounting and authentication modules in one convenient platform. Or, use Equitrac Office for output reduction and device usage.
Add versatility and mobility
Print from your personal device. With the RICOH Smart Device Connector app, you can touch your smartphone or tablet to the printer's Near Field Communication (NFC) tag to connect quickly. Access information from cloud applications such as Google Drive and Dropbox via any web browser. Add an available dual network port to give visitors the same freedom to print on a second network.
Keep track of print costs
Use passcodes or an optional NFC card reader to track user activity or set print quotas for specific users. Add Ricoh Device Manager NX Accounting or other optional software to issue chargebacks. Use Locked Print to hold print jobs until the authorized user releases them. Keep tabs of meter reads for the SP C842DN and your entire fleet with RICOH @Remote Office NX.
Make energy savings a top priority
Reduce paper costs with default duplex printing and save energy while in Sleep Mode. The device is also ENERGY STAR certified, meets EPEAT Gold criteria and offers Typical Electricity Consumption (TEC) of 1.7 kWh/week.
