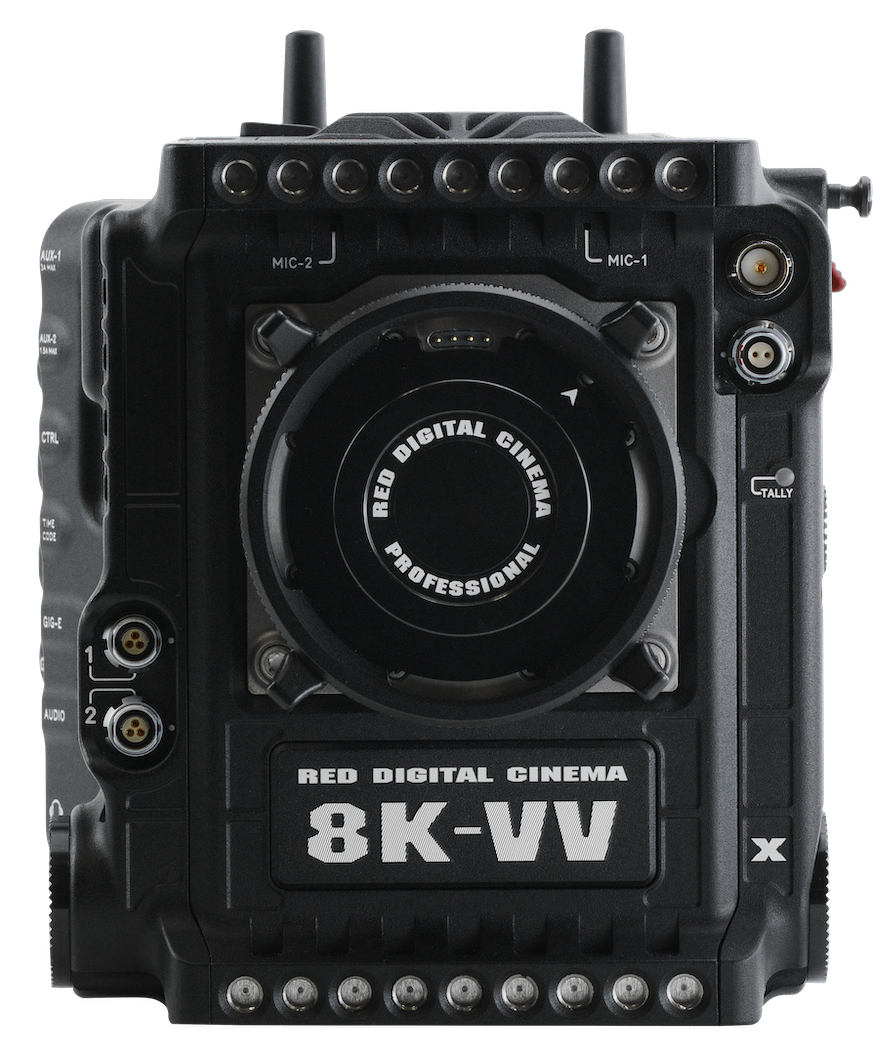

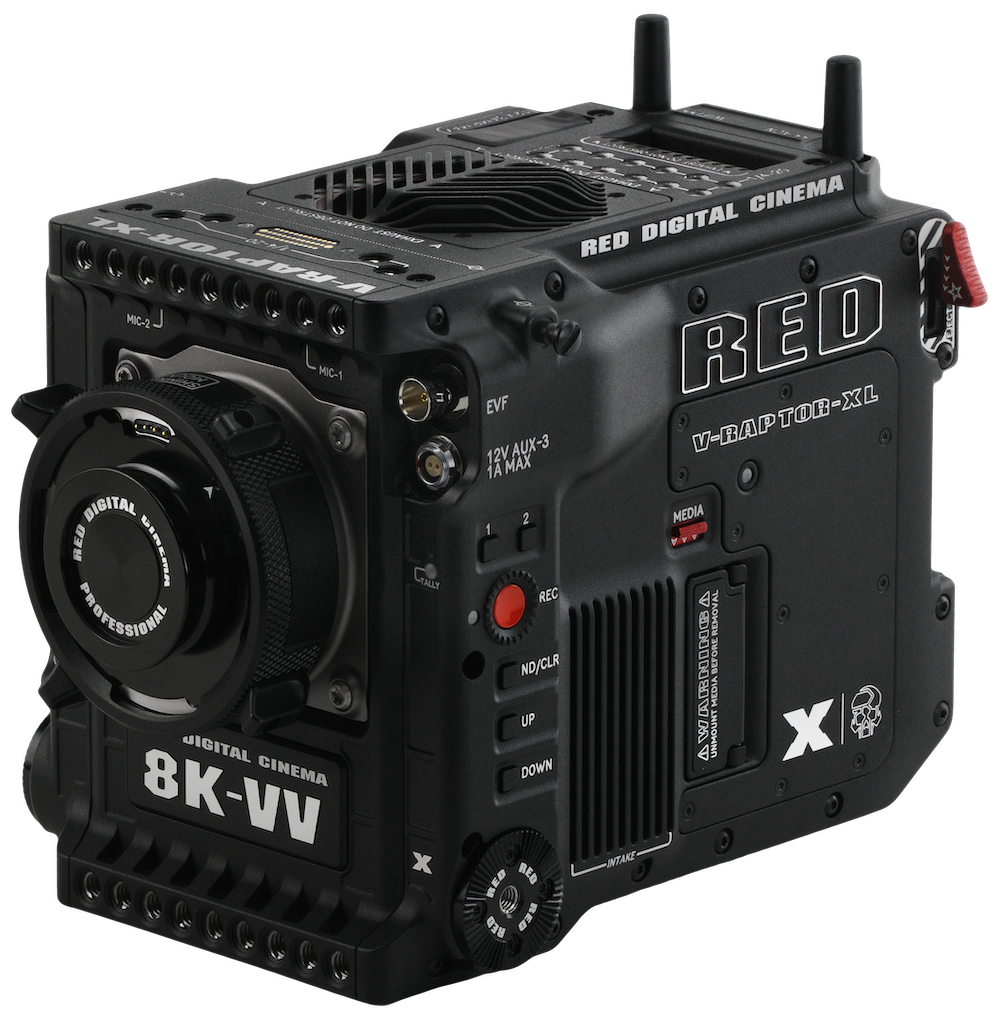

RED Digital Cinema V-RAPTOR XL (X) 8K VV DSMC3 Cinema Camera V-Mount

SKU: RD7100394 MFR: 710-0394
Earn VIP Reward Points

Key Features

  • Capture stunning visuals with the V-RAPTOR XL's 8K VV global shutter CMOS sensor.
  • Achieve cinematic brilliance using the camera's impressive 17+ stops of dynamic range.
  • Enjoy flexible lens options with the included V-RAPTOR XL PL Mount (shimmable).
  • Record in multiple formats, including REDCODE RAW, for ultimate creative control.
  • Experience seamless workflow integration with RED Connect for live 8K video over IP.
  • Utilize integrated dual channel audio inputs for pristine sound in every recording.
See More Product Details

Product Options

Pre Order Now?

Final Sale - No Returns or Exchanges

Free Expedited Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

RED Digital Cinema V-RAPTOR (X) 8K VV DSMC3 Specifications

Sensor
  • Sensor Type

    V-RAPTOR[X] 8K VV 35.4MP Global Shutter CMOS

  • Effective Pixels

    8192 x 4320

  • Sensor Size

    40.96mm x 21.60mm (Diagonal: 46.31mm)

  • Dynamic Range

    17+ stops

Lens Mount

Jump to...
  • Built-In ND

    Motorized clear filter and precision controlled electronic ND filter
    Electronic ND minimum density 2 stops, maximum density 7 stops
    Electronic ND selectable increments of 1/3 stops, 1/4 stops, and 1 stop

  • Mount Type

    Interchangeable Lens Mount, Included V-RAPTOR XL PL Mount (Shimmable)
    Optional V-RAPTOR XL Locking Canon EF Mount
    Physically compatible with DSMC Lens Mounts, but does not provide electronic communication or control

  • Media Type

    CFexpress Type B

  • Battery

    Integrated Dual Voltage 14/26V V-Lock or Gold Mount Battery Interface

Recording

Jump to...
  • Max Data Rates

    Up to 800 MB/s using RED branded or other qualified CFexpress media cards

  • REDCODERaw Max Frame Rates

    120 fps at 8K 17:9, 150 fps at 8K 2.4:1
    140 fps at 7K 17:9, 175 fps at 7K 2.4:1
    160 fps at 6K 17:9, 200 fps at 6K 2.4:1
    192 fps at 5K 17:9, 240 fps at 5K 2.4:1
    240 fps at 4K 17:9, 300 fps at 4K 2.4:1
    320 fps at 3K 17:9, 400 fps at 3K 2.4:1
    480 fps at 2K 17:9, 600 fps at 2K 2.4:1

  • Playback Frame Rates (Project Time Base)

    23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps, all resolutions

  • Best Available REDCODESettings

    REDCODE HQ, MQ, LQ, and ELQ at 8K 17:9 up to 60 fps
    REDCODE LQ and ELQ at 8K 17:9 up to 120 fps
    REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 up to 96 fps
    REDCODE MQ, LQ, and ELQ at 6K 17:9 up to 160 fps
    REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 up to 240 fps
    REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 up to 480 fps

  • REDCODERaw Acquisition Formats

    8K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
    7K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
    6K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
    5K 17:9, 2:1, 2.4:1, 16:9, 1:1
    4K 17:9, 2:1, 2.4:1, 16:9, 1:1
    3K 17:9, 2:1, 2.4:1, 16:9, 1:1
    2K 17:9, 2:1, 2.4:1, 16:9, 1:1

  • Apple ProRes

    Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K (4096x2160) 120P
    Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) up to 60P

Features

Jump to...
  • Red Global Vision

    Extended Highlights capability to capture more detail and color in extreme dynamic range scenarios.
    Phantom Track recording mode to capture multiple LED instances as dedicated clips.

  • Color Management

    Image Processing Pipeline 2 (IPP2)
    Supports 33x33x33 3D LUTs
    Supports import and adjustment of CDLs

  • Audio

    Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
    Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz
    3.5mm stereo headphone port

  • Autofocus

    Phase Detect with Face Detection

  • IP Connected

    Compatible with the RED Connect Module for live 8K R3D video over IP or live 4K over SMPTE ST 2110
    Dual band Wi-Fi (2.4 GHz or 5 GHz) for wireless camera control, live preview, and direct Camera to Cloud workflow via FrameIO or Amazon S3
    Wired control via USB-C or Ethernet (compatible USB-C to Ethernet adapter1 required) for remote camera control, live preview, direct Camera to Cloud workflow and high speed remote media offload

  • Power Outputs

    Regulated 12 V Outputs:
    2x P-TAP Connectors (3AMP Combined)
    1x Rear 2-Pin 0B (3 AMP)
    1x Rear 2-Pin 0B (1.5 AMP)
    1x Front 2-Pin 0B (1 AMP)
    Regulated 24 V Connectors:
    2x Front 3-Pin Fischer (3 AMP Combined)

  • Monitor Outputs

    Proprietary Top Accessory Port for Monitoring and Control
    Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
    12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
    6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
    3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
    1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
    SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

  • Monitor Options

    DSMC3 RED Touch 7.0" LCD
    RED Compact EVF with DSMC3 Adapter A
    IP streamed 1080p live preview wirelessly or wired via USB-C or Ethernet
    Integrated 2.4" LCD for camera control (no preview video)

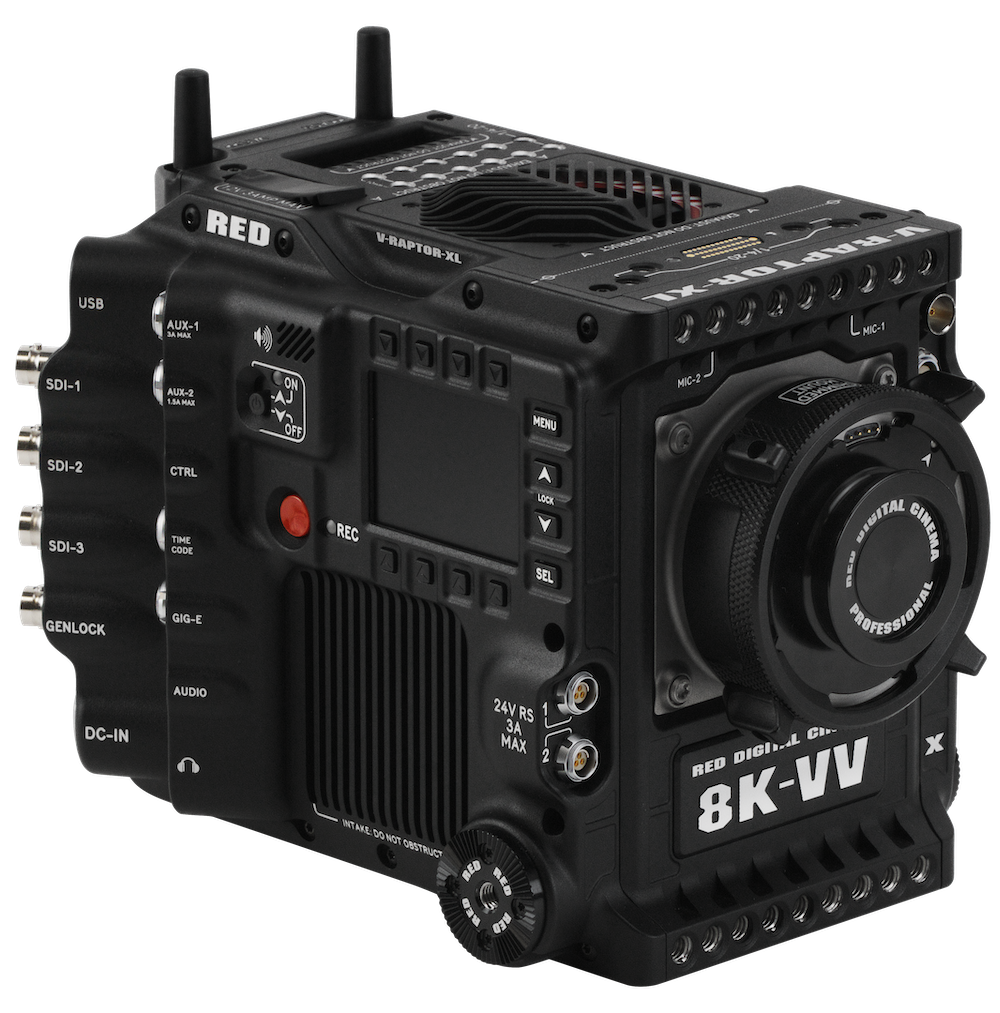

  • Additional I/O

    Tri-Level Genlock via BNC
    Linear Timecode (LTC) through 5-Pin 0B
    PTP and remote camera access via 9-Pin 0B GIG-E
    RCP2 Camera Control via 4-Pin 00B CTR
    Wireless Genlock and Timecode via integrated Ambient Communication Network (ACN)

Software

Jump to...
  • Red Control& Red Control Pro

    Access full camera controls and live preview from iOS or Android devices
    Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location
    RED Control works wirelessly or wired via USB-C

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

General

Jump to...
  • Available Battery Mount

    V-Mount, Gold Mount

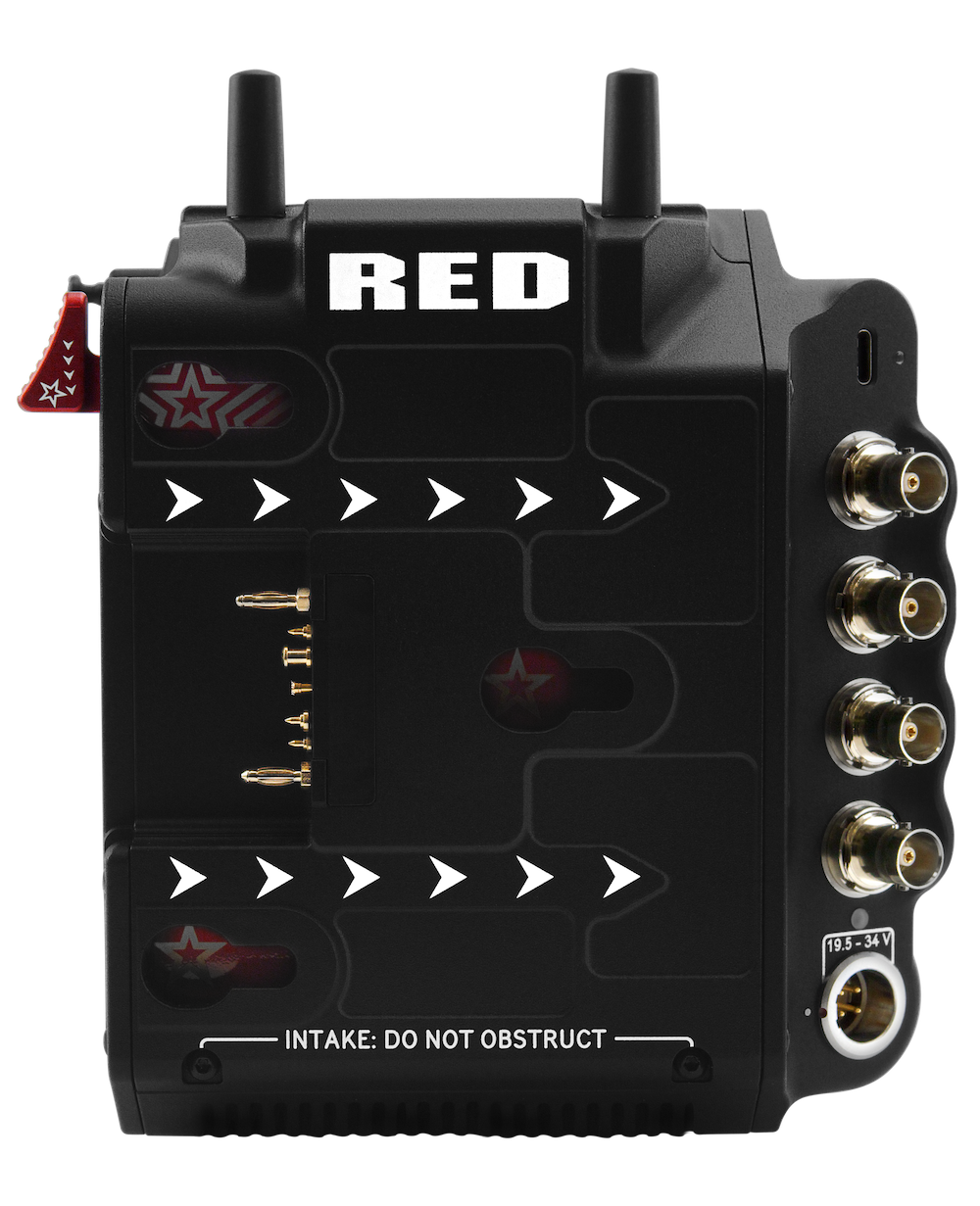

  • Construction

    Aluminum Alloy

  • DC Power Input

    19.5-34 V via 4-Pin 2B DC-IN

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)

  • Storage Relative Humidity

    0% to 85% non-condensing

  • Dimensions (L x W x H)

    7.9 x 6 x 6.5" (200.81 x 151.38 x 165.9mm)

  • Weight

    7.99 lbs (3.62kg) (V-Lock with PL Mount)

  • UPC Code

    810016944553

43 Accessories for RED Digital Cinema V-RAPTOR XL (X) 8K VV DSMC3 Cinema Camera

  • All Accessories (43)
  • Memory & Storage (4)
  • Lenses (6)
  • Extended Warranty (1)
  • Digital Cinema Lenses (9)
  • Viewfinders (1)
  • Adapters & Mounts (1)
  • Grips & Handles (1)
  • Monitor & Recorder (3)
  • Viewfinder Accessories (6)
  • Card Readers (1)
  • Microphones & Audio (4)
  • Flash & Lighting (6)

About RED Digital Cinema V-RAPTOR (X) 8K VV DSMC3

V-RAPTOR XL [X]

WORLD’S FIRST LARGE FORMAT GLOBAL SHUTTER

New flagship all-in-one DSMC3 system with RED Global Vision: a global shutter sensor and suite of tools for unprecedented flexibility and dynamic range.

V-RAPTOR® XL [X] 8K VV combines the strengths of RED's two families of cameras into one powerful all-purpose workhorse. The frame rates, light sensitivity, and resolution of the V-RAPTOR line combined with the global shutter advancements of KOMODO, the V-RAPTOR [X] 8K VV sensor is the culmination of the latest advancements in digital cinema image making. Using RED's newest 8K VV sensor, V-RAPTOR [X] XL leverages the benefits and flexibility of large format, global shutter, high framerate, 8K acquisition, all inside of a large-scale-production ready XL camera body.

RD71003

TOOLS OF THE TRADE

V-RAPTOR XL [X] is designed to support high-end motion picture and television productions as well as any filmmaker who would benefit an all-in-one solution.

Dual voltage battery support offers compatibility with a wide range of common batteries found on set today, both 14 V batteries and high voltage 26 V V-Lock or Gold Mount options.

Built-in electronic ND allows cinematographers to precisely select their density in ¼, 1/3, and full stop increments, providing never before seen exposure and depth of field control inside a cinema camera of this level.

12 V and 24 V auxiliary power outputs allows camera assistants to power all the peripherals needed to do their job from one centralized place.

RD71003

Front facing 3G-SDI and 2-Pin 12 V power, as well as compatibility with the DSMC3™ RED® Touch 7.0" LCD, supports any camera operators viewing preference.

Wireless timecode, genlock, and camera control, as well as four SDI outputs support the DIT, giving them access to everything they need at their cart.

Improved in-camera audio performance for run and gun single system audio setups.

Additionally, the V-RAPTOR XL [X] and the DSMC3 platform features advanced connectivity solutions which enable applications such as remote control and monitoring, in-camera Frame.io integration, AWS direct upload, RED Connect for live 8K R3D video over IP or live 4K over SMPTE ST 2110, and more.

RD71003

GLOBAL VISION

V-RAPTOR XL [X] 8K VV is pushed to new limits with the introduction of RED Global Vision, a new suite of tools that use the global shutter sensor to provide even more flexibility and ease of use throughout the production process. Global Vision's Extended Highlights allows the camera to see even further into highlight detail, providing more detail for HOR finishes, or softer and more subtle highlight roll-off for SOR. RED Global Vision also includes Phantom Track to streamline any Virtual Production environment employing GhostFrameTM or Frame Remapping, capturing distinct R3D clips per each sub-frame slice, as well as allowing for monitoring of either slice live on-set over each SDI.

RD71003

Features

  • 8K VVV GLOBAL SHUTTER SENSOR: Groundbreaking new image-capture technology and the first of its kind in a cinema camera.
  • GLOBAL VISION: Extended Highlights protection for unmatched color and detail in the highlights, and Phantom Track dual-capture mode for maximum flexibility and potential in virtual production workflows.
  • 17+ STOPS OF DYNAMIC RANGE: Leverage the industry-best low-light performance of the 8K VV sensor and unlock even more dynamic range with Extended Highlights mode.
  • INTEGRATED I/O: Flexible and robust power and I/O ecosystem with 4K and HD SDI monitoring, discreet LUT management, intuitively placed power outputs, all designed to support large productions.
  • UP TO 120FPS @ 8K: With unmatched frame-rate performance in a cinema camera, shooters can leverage elements like timelapse, speed-ramping, or pull ultra-sharp stills.
  • INTEGRATED CONTROL DISPLAY: Easy to navigate and intuitive. Allowing for comprehensive controls, including in-camera format selections, customized buttons, and more.
  • ELECTRONIC ND SYSTEM: Internal electonically variable ND system with 2 to 7 stops in 1/4, 1/3, or full stop increments.
  • ALL-NEW AUDIO ARCHITECTURE: Newly engineered audio hardware provides cleaner and clearer audio when connecting external microphones.

*Subject to credit approval. See adorama.com/edge for details.

Product Documents

User Manual

Key Features

  • Capture stunning visuals with the V-RAPTOR XL's 8K VV global shutter CMOS sensor.
  • Achieve cinematic brilliance using the camera's impressive 17+ stops of dynamic range.
  • Enjoy flexible lens options with the included V-RAPTOR XL PL Mount (shimmable).
  • Record in multiple formats, including REDCODE RAW, for ultimate creative control.
  • Experience seamless workflow integration with RED Connect for live 8K video over IP.
  • Utilize integrated dual channel audio inputs for pristine sound in every recording.

What's in the box:

  • RED Digital Cinema V-RAPTOR XL (X) 8K VV DSMC3 Cinema Camera
  • V-RAPTOR XL PL Mount
  • RED PL Mount Shim Pack
  • RED 270W AC Power Adapter
  • 10' 3-Pin XLR to 4-Pin 2B Power Cable
  • RED Logo Sticker
  • User Manual
  • (Battery Not Included)
  • RED Digital Cinema 2 Year Limited Warranty
