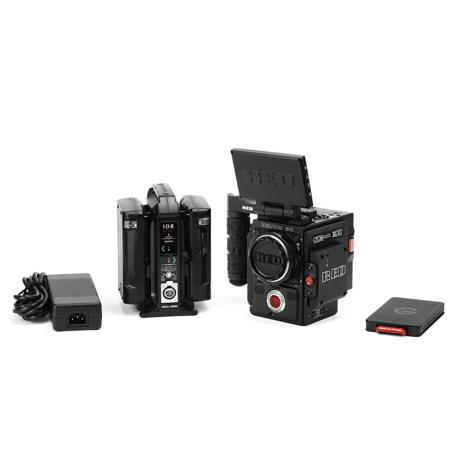

RED Digital Cinema DSMC2 GEMINI 5K Education Kit, Includes RED Touch 4.7" LCD and 480GB RED MINI-MAG

- DSMC2 BRAIN with GEMINI 5K S35 Sensor -
RED cameras deliver stunning resolution and image quality-creating clean and organic images that bring your footage to life. For flexibility in any situation, GEMINI is RED's highest sensitivity sensor to date and offers significantly increased performance in low-light settings and improved performance in shadows. A DSMC2 BRAIN is capable of data write speeds of 300MB/s and can simultaneously record in REDCODE RAW and Apple ProRes or Avid DNxHR/HD.

With features like cable-free peripherals, integrated media bay, wireless control and more-DSMC2 is also compatible with a growing arsenal of modules and accessories-from RED and other Third-Party manufacturers. Tack on interchangeable OLPFs and lens mounts and DSMC2 gives you the ultimate control over your footage.

- DSMC2 Outrigger Handle -
The DSMC2 Outrigger Handle offers a low profile side handle-designed with an ergonomic molded grip and integrated Record Start/Stop button. Mounted to the Top Handle Port on your DSMC2 camera, the DSMC2 Outrigger Handle provides comfort and stability, as well as additional 1/4-20 mounting points for your peripheral camera components. The built-in Record button puts Start/Stop functionality right at your fingertips-so you're always ready to capture the perfect shot. The DSMC2 Outrigger Handle is ideal for shooters who use one hand on the handle, for grip and record button access and the other for lens adjustments or support.

- DSMC2 V-Lock I/O Expander -
The DSMC2 V-Lock I/O Expander offers a variety of Input/Output connections, as well as an industry standard V-Lock mount to power your DSMC2 camera using RED BRICK or other V-lock batteries. Constructed from lightweight and durable magnesium, this expander module mounts directly to the rear of the camera BRAIN and offers connections for the following:

• DC Power input (DC-IN)
• HDMI 1.2 output (Type A socket)
• 3G-SDI output (HD-SDI, 75 Ohms BNC)
• CTRL & SYNC ports (2x 00B 4-Pin, Timecode and Genlock support)
• AUX Power output (P-Tap 2-Pin female)
• USB Power output (Type A, 5 V at 1.5 A for powering HDMI transmitters or small mobile devices)
• Stereo Headphone output (3.5 mm jack)
• Stereo Analog input (3.5 mm jack)

The DSMC2 V-Lock I/O Expander also features a selector switch that enables the BRAIN to automatically boot when power is provided via the DC-IN connector on the expander. This feature allows you to use a connected DC input supply to turn the BRAIN on and off when the camera is mounted in remote or difficult to maneuver locations. This expander is an ideal solution for a wide variety of production environments-from low-profile run-and-gun situations to studio shoots that require mobility.

- DSMC S35 AL Canon Mount -
The DSMC S35 Canon Mount offers support for a wide variety of Canon EF and EF-S compatible lenses to use with your DSMC or DSMC2 BRAIN. Available in lightweight machined aluminum or robust titanium-the DSMC Canon Mount offers modularity and convenience and supports autofocus and electronic iris control with compatible lenses. The mount attaches easily to the front of your camera BRAIN and uses a dual-ring lock system to secure Canon EF and EF-S lenses. Both aluminum and titanium models feature captive mounting screws, so you'll never have to worry about searching for hardware.

- DSMC2 RED Touch 4.7" LCD -
The DSMC2 RED Touch 4.7" LCD offers a high definition-720p interactive viewing experience in the smallest and most compact form factor available for your DSMC2 camera system. The 4.7" LCD features a lay flat hinge design with a tilt range of approximately 240deg. (90deg. forward and 150deg. backward) for space savings or optimizing your configuration. Use the cable-free DSMC2 RED Touch 4.7" LCD as your primary display by mounting it to the top of your BRAIN with 1/4-20 mounting points-or mount it to the secondary (side) EVF/LCD port for a low profile secondary display.

The built-in 180deg. image rotation feature (mirror and flip) provides additional display mounting options by allowing monitor footage to be displayed upside down. The DSMC2 RED Touch 4.7" LCD is the ideal cable-free display for shooters looking for a small and lightweight camera rig.

- IDX DUO-C98 Battery -

Announcing the Next Generation of IDX Compact Battery
IDX is proud to announce the newest addition to the DUO Compact battery series, the DUO-C98. This has the same features as the DUO-C95, one USB port, one standard D-Tap and a D-Tap Advanced which allows for mating with the VL-DT1 charger, making travel easier with this charger. Like the DUO-C95, the DUO-C98 now becomes the world's most perfect compact. IATA friendly (<100Wh) Li-ion professional battery with multiple power outputs- perfect for handheld gimbal and aerial setups. The DUO-C98 has the same features plus greater capacity at 96Wh, is high load at 10A and comes equipped with the new D-Tap Advanced charge/discharge port, standard D-Tap and USB power ports.

Additionally, the addition of SMBUS allows for data display in the viewfinder on RED cameras. The DUO-C98's continue where the DUO-C95's left off. It shares the same slim profile of 25.4mm / 1.5" allowing the battery to fit camera systems where space is limited. With the ability to handle a 70W load, the DUO-C98 is the idea battery for keeping your equipment light and compact. All of this at the same cost as DUO-C95!

D-Tap Advanced
The three pin design allows for safe charging/ discharging operations while still maintaining compatibility with standard D-Tap connectors.

Power Outputs
Standard D-Tap and USB power outputs available for powering accessories.

- IDX VL-2X Battery Charger -
The VL-2X delivers slim, lightweight 2-channel charging with the added advantage of an integrated 36W power supply. With a new fanless design, the VL-2X also delivers high power charging without the noise of a typical quick charger. The VL-2X is a multi-chemistry charger for both Li-ion and Ni-Cad battery types.

- RED MINI-MAG -
The RED MINI-MAG is the smallest, fastest and most powerful media option available. Compared to their predecessor, the REDMAG 1.8", RED MINI-MAGs have faster read/write speeds to support higher frame rates and resolutions with minimal compression. RED MINI-MAG data transfer speeds are up to 50% faster on DSMC2, compared to their speeds on EPIC DRAGON.

Capable of supporting simultaneous R3D and Apple ProRes or Avid DNx recording on DSMC2 camera systems-RED MINI-MAGs offer the ideal media solution-whatever your workflow might be Manufactured from robust aluminum, RED MINI-MAGs offer rugged reliability in a compact form factor. Available in multiple capacities, standard Gray models provide maximum read/write speeds up to 225 MB/s-while the turbo-charged red models can achieve up to 300 MB/s for even lower REDCODE compression.

- RED MINI-MAG Edition -
Designed to optimize and simplify your RED camera workflow, the ev Series Reader, RED MINI-MAGR Edition leverages high-performance connectivity for fast RED footage transfers and back-up. It is the latest accessory in the Evolution Series of high performance, flexible storage solutions. Transfer content quickly from your RED MINI-MAG media1 onto any ev Series-compatible or other G-Technology drive. And, when shooting on-the-go, slip it into the watertight protective ev Series All-Terrain Case.
