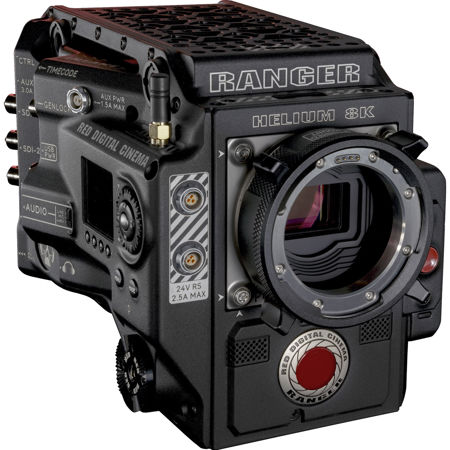

RED Digital Cinema RED RANGER Camera System with HELIUM 8K S35 Sensor, V-Lock
See all Red Digital Cinema items

RED Digital Cinema RED RANGER Camera System with HELIUM 8K S35 Sensor, V-Lock

SKU: RD7100330

This item is no longer available.

Recommended Alternatives

Red Digital Cinema KOMODO 6K: Picture 1 regular
RED Digital Cinema KOMODO 6K Camera
$2,995.00
Red Digital Cinema KOMODO 6K: Picture 1 regular
RED Digital Cinema KOMODO 6K Production Pack without Batteries
$6,500.00$5,990.00
Red Digital Cinema V-RAPTOR V-Mount: Picture 1 regular
RED Digital Cinema V-RAPTOR 8K VV DSMC3 Camera Production Pack, V-Lock
$35,500.00
Red Digital Cinema KOMODO-X: Picture 1 regular
RED Digital Cinema KOMODO-X 6K S35 DSMC3 Camera, Black
$6,995.00
See More Recommendations
Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

RED Digital Cinema RED RANGER Specifications

  • Sensor Type

    HELIUM 35.4 Megapixel CMOS

  • Effective Pixels

    8192 x 4320

  • Sensor Size

    29.90 x 15.77mm (1.18 x 0.62")
    Diagonal: 33.8mm (1.33")

  • Dynamic Range

    16.5+ stops

  • Max Data Rates

    Up to 300 MB/s using RED MINI-MAG (480GB, 512GB, 960GB & 1TB)
    Up to 225 MB/s using RED MINI-MAG (120GB & 240GB)

  • Max Frame Rates

    60 fps at 8K Full Format (8192 x 4320), 75 fps at 8K 2.4:1 (8192 x 3456)
    60 fps at 7K Full Format (7168 x 3780), 75 fps at 7K 2.4:1 (7168 x 3024)
    75 fps at 6K Full Format (6144 x 3240), 100 fps at 6K 2.4:1 (6144 x 2592)
    96 fps at 5K Full Format (5120 x 2700), 120 fps at 5K 2.4:1 (5120 x 2160)
    120 fps at 4K Full Format (4096 x 2160), 150 fps at 4K 2.4:1 (4096 x 1728)

  • Max Frame Rates (Cont.)

    150 fps at 3K Full Format (3072 x 1620), 200 fps at 3K 2.4:1 (3072 x 1296)
    240 fps at 2K Full Format (2048 x 1080), 300 fps at 2K 2.4:1 (2048 x 864)

  • Playback Frame Rates (Project Timebase)

    23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60 fps, all resolutions

  • Redcode Settings

    (Range From 2:1 Up to 22:1):
    5:1 REDCODE at 8K Full Format (8192 x 4320) and 24 fps
    12:1 REDCODE at 8K Full Format (8192 x 4320) and 60 fps
    2:1 REDCODE at 4K Full Format (4096 x 2160) and 24 fps
    3:1 REDCODE at 4K Full Format (4096 x 2160) and 60 fps

  • Redcode Raw Acquisition Formats

    8K Full Format (8192 x 4320), 2:1, 2.4:1, 16:9, 14:9, 8:9, 3:2, 6:5, 4:1, 8:1 and Ana 2x, 1.3x, 1.25x
    7K Full Format (7168 x 3780), 2:1, 2.4:1, 16:9, 8:9, 6:5, 4:1, 8:1 and Ana 2x, 1.3x
    6K Full Format (6144 x 3240), 2:1, 2.4:1, 16:9, 8:9, 3:2, 4:3, 6:5, 4:1, 8:1 and Ana 2x, 1.3x, 1.25x
    5K Full Format (5120 x 2700), 2:1, 2.4:1, 16:9, 8:9, 4:3, 6:5, 4:1, 8:1 and Ana 2x, 1.3x

  • Redcode Raw Acquisition Formats (Cont.)

    4K Full Format (4096 x 2160), 2:1, 2.4:1, 16:9, 8:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, 1:1 and Ana 2x, 1.3x
    3K Full Format (3072 x 1620), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1 and Ana 2x, 1.3x
    2K Full Format (2048 x 1080), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1 and Ana 2x, 1.3x

  • Apple ProRes

    ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 4K (4096 x 2160) up to 30 fps
    ProRes 4444 XQ and ProRes 4444 at 2K (2048 x 1080) up to 120 fps
    ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 2K (2048 x 1080) up to 120 fps

  • AVID Codecs

    DNxHR HQX at 4K (4096 x 2160) 12-bit up to 30 fps
    DNxHR HQ and SQ at 4K (4096 x 2160) 8-bit up to 30 fps
    DNxHR 444 at 2K (2048 x 1080) 12-bit up to 120 fps
    DNxHR HQ and SQ at 2K (2048 x 1080) 8-bit up to 120 fps
    DNxHD 444 and HQX (1920 x 1080) 10-bit up to 120 fps
    DNxHD HQ and SQ (1920 x 1080) 8-bit up to 120 fps

  • Color Management

    Supports 33x33x33, 32x32x32, 26x26x26 and 17x17x17 3D LUTs
    Variable number of 3D LUT outputs
    User programmable shaper 1D LUTs
    Tetrahedral interpolation, 16-bit processing

  • Audio

    Integrated dual channel digital stereo microphones,
    uncompressed, 24-bit 48 kHz
    Integrated dual channel 5-pin XLR
    with preamplifiers, uncompressed, 24-bit 48 kHz

  • Remote Control

    External R.C.P. Wi-Fi antenna with SMA connector Ethernet, RS232 and GPI Trigger

  • Monitor Outputs

    3G-SDI (HD-SDI) and MON-1
    1080p RGB or 4:2:2, 720p RGB or 4:2:2
    SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

  • Monitor Options

    DSMC2 RED Touch 4.7" LCD, DSMC2 RED Touch 7.0" LCD and DSMC2 RED EVF (OLED) with cable-free connection. RED Touch 9.0" LCD, RED Touch 7.0" LCD, RED Touch 5.0" LCD, RED PRO 7" LCD, DSMC2 Touch 7.0" Ultra-Brite LCD, BOMB EVF (OLED) and BOMB EVF (LCOS) compatible with DSMC2 LCD/EVF Adapter A or DSMC2 LCD/EVF Adapter D and LCD/EVF cable

  • REDCINE-X PRO Delivery Formats

    4K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
    2K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
    1080p RGB 4:2:2, 720p 4:2:2 : QuickTime, JPEG, AVID AAF, MXF
    1080p 4:2:0, 720p 4:2:0 : H.264, .MP4

  • Video Editing Software Compatibility

    Adobe Premiere Pro, AVID Media Composer, DaVinci Resolve, Edius Pro, Final Cut Pro, Vegas Pro

  • Construction

    Aluminum Alloy

  • Battery Type

    V-Lock

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 50 deg. C (-4 to 122 deg. F)

  • Relative Humidity

    0% to 85% non-condensing

  • Dimensions

    8.12 x 6.32 x 6" (206.36 x 160.6 x 152.35mm)

  • Weight

    7.5 lbs (3.40kg) (with Integrated Media Bay, PL Mount and V-Lock)

3 Accessories for RED Digital Cinema RED RANGER Camera System with HELIUM 8K S35 Sensor, V-Lock

  • All Accessories (3)
  • Bags & Cases (1)
  • Tripod Kits (1)
  • Digital Cinema Lenses (1)
CamRade run&gunBackpack for Up to 20.47" Professional Cameras, Large
CamRade run&gunBackpack for Up to 20.47" Professional Cameras, Large
$249.00
OConnor Ultimate 1040 flowtech 3-Section Carbon Fiber Tripod System w/Fluid Head
OConnor Ultimate 1040 flowtech 3-Section Carbon Fiber Tripod System w/Fluid Head
$12,990.00
Venus Laowa 24mm f/14 2x Macro Probe Lens for PL Mount, Cine-Mod Version
Venus Laowa 24mm f/14 2x Macro Probe Lens for PL Mount, Cine-Mod Version
$1,599.00

About RED Digital Cinema RED RANGER

Red Ranger

The RED RANGER

The RED RANGER is an all-in-one camera system that features an integrated and less complex platform for filmmakers. The standardized camera body weighs around 7.3 pounds, supports wide input voltage (11.5V to 32V) and boasts more independent SDI and AUX power outputs as well as an integrated XLR audio input. It also has a larger fan for quieter and more efficient temperature management. Features like integrated I/O's, 24V power out, shimmed PL Mount and improved thermal performance give users peace of mind in any shooting environment. The camera will ship complete with necessary rigging and support for improved set-up time.

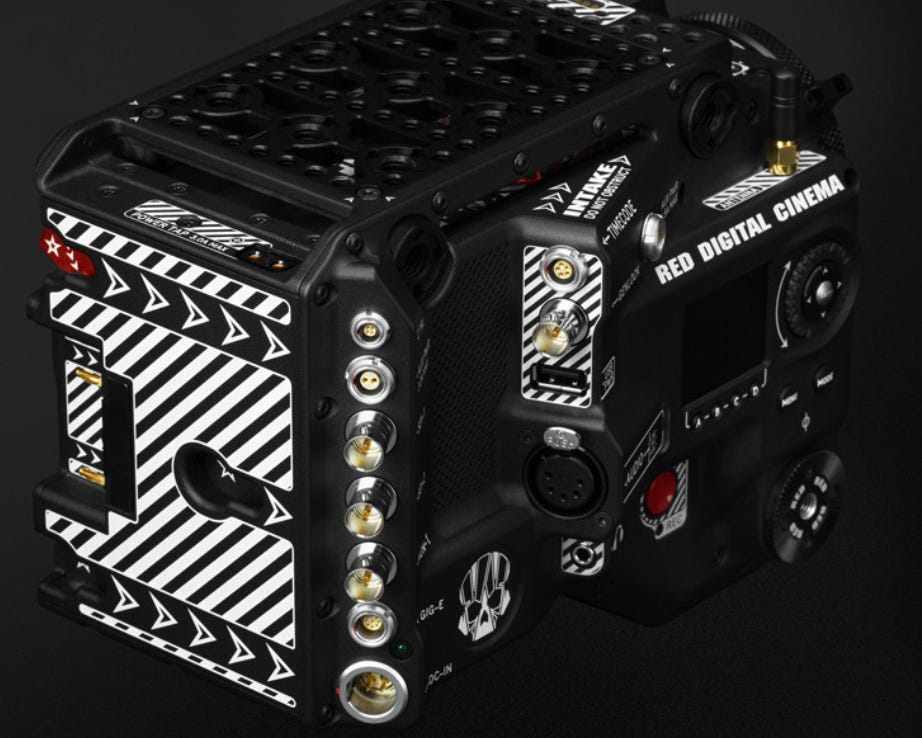

All-In-One Camera System

No matter which amazing sensor you choose, the RED RANGER camera system will feature the same compact, standardized camera body, weighing around 7.5 pounds (depending on whether the user chooses the V-Lock or Gold Mount variant). RANGER comes complete with a comprehensive I/O array to satisfy power-hungry studio configurations, and boasts a large fan for quiet, more efficient temperature management.

red ranger

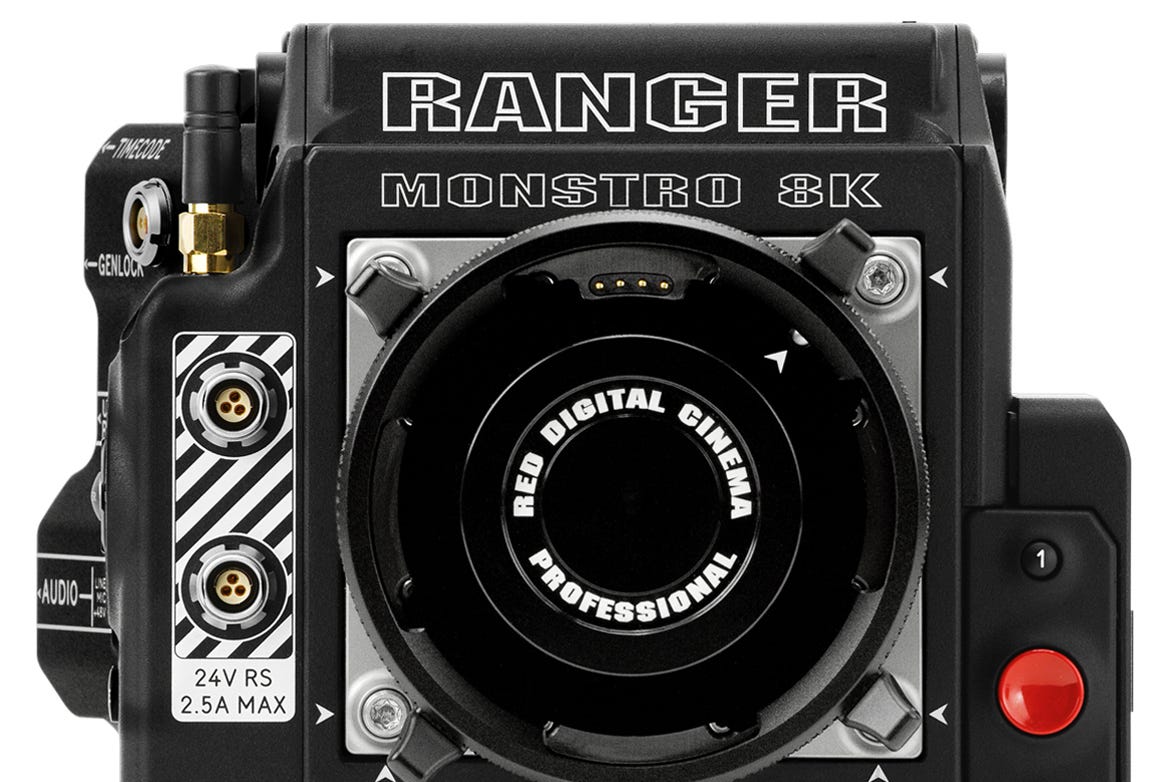

Choose Your Sensor

RED RANGER is available with three difference sensor options: MONSTRO 8K VV, HELIUM 8K S35 and GEMINI 5K S35. All three sensors deliver stunning resolution and image quality-creating clean and organic images that bring your footage to life. The MONSTRO and HELIUM sensors take the next step in exceeding beauty offered by film - up to 17x more resolution than HD-and over 4x more than 4K. For flexibility in any situation, GEMINI is RED's highest sensitivity sensor to date and offers significantly increased performance in low-light settings and improved performance in shadows.

red ranger

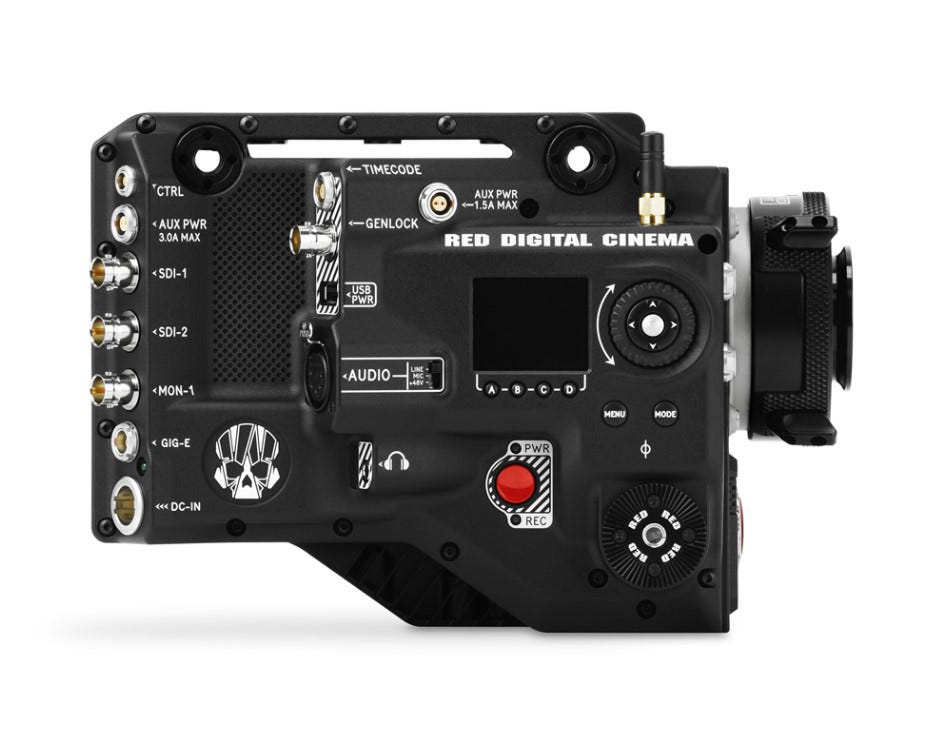

The RANGER Features

  • Integrated I/O’s
  • Three SDI outputs (two mirrored and one independent)
  • Support for wider input voltage (11.5-32V)
  • 24V & 12V power outs (two of each)
  • 12V P-Tap port
  • Integrated 5-pin XLR stereo audio input (line/mic/+48V selectable)
  • Genlock, timecode, USB, and control
  • Shimmed PL mount
  • Large diameter fan provides improved thermal performance
  • Available in V-Lock or Gold Mount variants
red ranger

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

What's in the box:

  • RED Digital Cinema RED RANGER BRAIN with HELIUM 8K S35 Sensor
  • Shimmed PL Mount and PL Mount Shim Pack
  • Production Top Handle
  • LCD/EVF Adapter D
  • RED RANGER AC Power Adapter
  • 10' 3-Pin XLR-to-RED RANGER Power Cable
  • Compatible Hex and Torx Tools
  • RED Digital Cinema 2 Year Warranty
