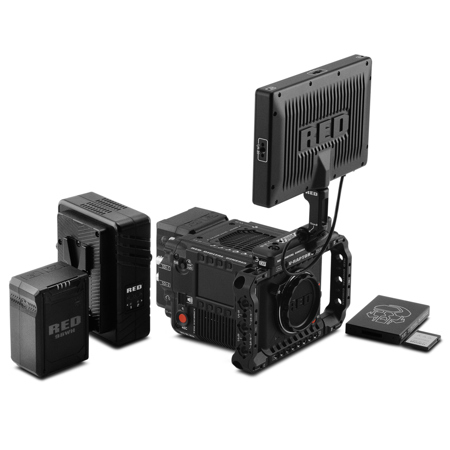

RED Digital Cinema V-RAPTOR 8K VV DSMC3 Camera Starter Pack

SKU: RD7100364 MFR: 710-0364
Earn VIP Reward Points

Key Features

  • Capture stunning visuals with the V-RAPTOR 8K VV's impressive 35.4MP CMOS sensor.
  • Achieve cinematic brilliance using the camera's versatile REDCODE RAW recording.
  • Enjoy flexible lens options with the integrated RF mount, adapting to any shoot.
  • Experience smooth, stabilized footage, perfect for dynamic filmmaking scenarios.
  • Record pro-quality audio with dual-channel inputs, enhancing sound precision.
  • Power your creativity with included REDVOLT Micro-V batteries for extended shoots.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

RED Digital Cinema V-RAPTOR Specifications

V-RAPTOR 8K VV DSMC3 Camera

V-RAPTOR 8K VV DSMC3 Camera

Jump to...
  • Sensor Type

    V-RAPTOR 8K VV 35.4 Megapixel CMOS

  • Effective Pixels

    8192 x 4320

  • Sensor Size

    40.96 mm x 21.60 mm (Diagonal: 46.31 mm)

  • Dynamic Range

    17+ stops

  • Mount Type

    Integrated RF mount with RF lens support
    Supports Canon EF lenses via compatible Canon RF to EF mount adapters
    Accepts other Canon RF mount-based lens adapters for diverse lens choices

  • Max Data Rates

    Up to 800 MB/s using RED branded or other qualified CFexpress media cards

  • REDcode Raw Max Frame Rates

    120 fps at 8K 17:9 (8192 x 4320), 150 fps at 8K 2.4:1 (8192 x 3456)
    140 fps at 7K 17:9 (7168 x 3780), 175 fps at 7K 2.4:1 (7168 x 3024)
    160 fps at 6K 17:9 (6144 x 3240), 200 fps at 6K 2.4:1 (6144 x 2592)
    192 fps at 5K 17:9 (5120 x 2700), 240 fps at 5K 2.4:1 (5120 x 2160)
    240 fps at 4K 17:9 (4096 x 2160), 300 fps at 4K 2.4:1 (4096 x 1728)
    320 fps at 3K 17:9 (3072 x 1620), 400 fps at 3K 2.4:1 (3072 x 1296)

  • REDcode Raw Max Frame Rates (Contd.)

    480 fps at 2K 17:9 (2048 x 1080), 600 fps at 2K 2.4:1 (2048 x 864)

  • Best Available Redcode Settings

    REDCODE HQ, MQ and LQ at 8K 17:9 (8192 x 4320) up to 60 fps
    REDCODE LQ at 8K 17:9 (8192 x 4320) up to 120 fps
    REDCODE HQ, MQ and LQ at 6K 17:9 (6144 x 3240) up to 96 fps
    REDCODE MQ and LQ at 6K 17:9 (6144 x 3240) up to 160 fps
    REDCODE HQ, MQ and LQ at 4K 17:9 (4096 x 2160) up to 240 fps
    REDCODE HQ, MQ and LQ at 2K 17:9 (2048 x 1080) up to 480 fps

  • Redcode Raw

    8K 17:9 (8192 x 4320), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x

  • Acquisition Formats

    7K 17:9 (7168 x 3780), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
    6K 17:9 (6144 x 3240), 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
    5K 17:9 (5120 x 2700), 2:1, 2.4:1, 16:9, 1:1
    4K 17:9 (4096 x 2160), 2:1, 2.4:1, 16:9, 1:1
    3K 17:9 (3072 x 1620), 2:1, 2.4:1, 16:9, 1:1
    2K 17:9 (2048 x 1080), 2:1, 2.4:1, 16:9, 1:1

  • Construction

    Aluminum Alloy

  • Battery Type

    Integrated V-Lock battery interface optimized for Micro V-Lock Batteries

  • Dc Power Input

    11-17V via 6-pin DC-IN

  • Operating Temperature

    0 Degree C to 40 Degree C (32 Degree F to 104 Degree F)

  • Storage Temperature

    -20 Degree C to 50 Degree C (-4 Degree F to 122 Degree F)

  • Storage Relative Humidity

    0% to 85% non-condensing

  • Color Management

    Image Processing Pipeline 2 (IPP2)
    Supports 33 x33 x33 3D LUTs
    Supports import of CDLs

  • Audio

    Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
    Integrated dual channel mic/line/+48V input via 5-pin Audio Port, uncompressed, 24-bit 48 kHz

  • Remote Control

    Wi-Fi for camera control via interchangeable dual band (2.4 GHz/5 GHz) antenna mounted to a female RP-SMA connector
    Genlock, Timecode-in, GPIO and Ctrl (RS-232) via the integrated 9-pin EXT Port
    Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter1 required) allowing remote camera control, live MJPEG preview video feed and remote media offload

  • Monitor Outputs

    Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
    12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
    6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
    3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
    1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
    SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

  • Monitor Options

    DSMC3 REDTouch 7.0" LCD
    Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
    Integrated 2.4" LCD for camera control (no preview video)

  • Red Control

    Access full camera controls and live preview from iOS or Android devices
    Available from the Apple App Store and Google Play Store. RED Control works wirelessly or wired via USB-C

  • Weight

    4.03 lbs (1.8kg) (Without body cap and CFexpress card)

DSMC3 Touch 7" LCD Monitor

Jump to...
  • Material

    Aluminum Alloy

  • Resolution

    1920 x 1200

  • Pixel Density

    322 pixels per inch (ppi)

  • Refresh Rate

    60 Hz

  • Response Time

    25 ms

  • Contrast

    1250:1

  • Brightness

    1300 cd/sq. m

  • Color Depth

    10 bit

  • Colors

    100% DCI-P3[1]

  • Viewing Angle

    +/- 160 Degree all axes

  • Display Orientation

    Landscape, 180 Degree rotation

  • Touch

    Projected Capacitive (pCap), multi-touch

  • Camera Connection

    Power and Communication via RMC cable

  • Mounting

    15mm Rail

  • Hood Mounting

    4x M3 Mounting Points

  • Buttons

    4 Buttons Function 1,2,3 & 4

  • Power Consumption

    Max 18.3W

  • Operating Temperature

    0 Degree C to 38 Degree C (32 Degree F to 104 Degree F)

  • Storage Temperature

    -18 Degree C to 49 Degree C (-0 Degree F to 120 Degree F)

  • Operating Humidity

    0% to 85%, non-condensing

  • Storage Humidity

    0% to 85%, non-condensing

  • Firmware Requirement

    Compatible with camera firmware V1.1 or later

  • Dimensions (H x W x D)

    Monitor: 4.67 x 7.09 x 1.13" (118.7 x 180.1 x 28.8mm)
    Arm: 1.18 x 2.4 x 0.7" (30 x 61 x 17.5mm)
    RED Monitor Interface: 1.67 x 4.25 x 1.51" (42.5 x 108 x 38.23mm)

  • Weight

    Monitor: Approx. 20 oz (568g)
    Arm: Approx. 1 oz (30.1g)
    RED Monitor Interface: Approx. 4.4 oz (126g)

PRO CFexpress 2TB Memory Card

Jump to...
  • Max Data Rates

    V-RAPTOR ST 8K up to 800 MB/s

  • Operating Temperature

    14 Degree F to 158 Degree F (-10 Degree C to 70 Degree C)

  • Storage Temperature

    -4 Degree F to 185 Degree F (-20 Degree C to 85 Degree C)

  • Operating Humidity

    5% to 95%, non-condensing

  • Shock Resistance (Operating)

    50 G @ 10-2000Hz

  • Vibration Resistance (Operating)

    15 G

  • Usable Capacity

    RED PRO CFexpress 2TB bytes

  • Dimensions (H x W x D)

    Approx. 1.52 x 1.17 x 0.15" (38.5 x 29.6 x 3.8mm)

  • Weight

    Approx. 0.24 oz (7g)

CFexpress Card Reader

Jump to...
  • Drive Interface

    CFexpress Type-B

  • Power

    USB Bus-Power

  • Dimensions (H x W x D)

    Approx. 3.74 x 2.56 x 0.47" (95 x 65 x 12mm)

  • Weight

    4.2 oz (120g)

REDVOLT MICRO-V Battery

Jump to...
  • Compatibility

    RED Compact Dual V-Lock Charger

  • Battery

    Rechargeable Lithium-Ion Battery

  • Battery Capacity

    6600mAh / 98Wh

  • Output Voltage

    14.8 VDC

  • Operating Temperature

    50 Degree F to 113 Degree F (10 Degree C to 45 Degree C)

  • Charging Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    68 Degree F to 122 Degree F (20 Degree C to 50 Degree C)

  • Dimensions (H x W x D)

    3.93 x 2.82 x 1.94" (99.80 x 71.6 x 49.2mm)

  • Weight

    Approx. 19.1 oz (544.3g)

Compact Dual V-Lock Charger

Jump to...
  • Compatibility

    REDVOLT MICRO-V, Standard V-Lock Batteries

  • Input

    100V-240VAC 50/60Hz

  • Charge Current

    One Battery 3A, Two Batteries 1.5A

  • Charging Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    68 Degree F to 122 Degree F (20 Degree C to 50 Degree C)

  • Dimensions (H x W x D)

    4.5 x 5.5 x 3" (114.3 x 139.7 x 76.2mm)

  • Weight

    Approx. 16 oz (453.6g)

V-RAPTOR Wing Grip

Jump to...
  • Material

    Aluminum

  • Mounting to Komodo

    2x M4 captive mounting screws

  • Mounting to V-Raptor

    2x 1/4-20 mounting screws

  • Dimensions (H x W x D)

    4.21 x 1.45 x 1.07" (107 x 36.9 x 27.3mm)

  • Weight

    Approx. 2.8 oz (81.6g)

EXT-to-Timecode Cable

Jump to...
  • Weight

    5.6 oz (158.7g)

General

Jump to...
  • Battery Info

    Required, Included

  • Battery Material

    Lithium Ion

  • Battery Type

    -

  • Battery Quantity

    2

  • UPC Code

    810016942887

50 Accessories for RED Digital Cinema V-RAPTOR 8K VV DSMC3 Camera Starter Pack

  • All Accessories (50)
  • Lenses (3)
  • Monitor & Recorder (3)
  • Memory & Storage (9)
  • Batteries & Power Supply (5)
  • Grips & Handles (1)
  • Adapters & Mounts (1)
  • Card Readers (2)
  • Expansion Unit (1)
  • Microphones & Audio (3)
  • Cables & Adapters (1)
  • Tripods & Monopods (5)
  • Headphones (5)
  • Camera Cages and Rigs (1)
  • Recording Monitor (1)
  • Viewfinder Accessories (2)
  • Viewfinders (1)
  • Flash & Lighting (6)
Models
Red Digital Cinema V-RAPTOR 8K VV DSMC3 Camera Starter Pack
$29,250.00

Special Order

Generally ships in 7-14 days, subject to availability

RED Digital Cinema V-RAPTOR (X) 8K VV DSMC3 Cinema Camera, V Battery Mount
$29,995.00

Pre Order Now

You may place this on order now and it will be shipped on a first come first serve basis. We do not charge your card until we actually ship.

RED Digital Cinema V-RAPTOR 8K S35 Camera Production Pack, Rigid Hinge, V-Mount
$28,500.00

Special Order

Generally ships in 7-14 days, subject to availability

Special FeaturesBuilt-In Microphone, Interchangeable Lens, Time Code I/O, Touch Screen LCDBuilt-In Microphone, Genlockable, Interchangeable Lens, Time Code I/OBuilt-In Microphone, Genlockable, Interchangeable Lens, Time Code I/O
Resolution8K8K8K
Kit StyleStarter PackBaseBase
ConfigurationBody & KitBody OnlyBody & Kit
Sensor TypeCMOSCMOSCMOS
VersionBaseStandard with Battery MountProduction Pack with V-Mount
Sensor SizeFull FrameVistaVisionSuper 35mm
Lens Included-Without Lens-

About RED Digital Cinema V-RAPTOR

Where cutting-edge technology meets cinematic brilliance, the V-RAPTOR 8K VV DSMC3 Camera Starter Pack emerges as the pinnacle of RED Digital Cinema's engineering. This high-quality, professional-grade camera system is the most powerful and advanced offering from RED to date, marking a new era in the DSMC3 generation of cameras. The V-RAPTOR 8K VV is a testament to innovation, designed for filmmakers who demand the utmost in image quality and versatility.

At the heart of the V-RAPTOR lies a revolutionary multi-format 8K sensor capable of capturing stunning large format 8K footage or versatile 6K S35, providing unparalleled detail and clarity that exceeds 4K standards. This advanced sensor not only offers the largest lens compatibility in its class but also features the highest dynamic range and the most pristine shadow detail ever seen in a RED camera, ensuring that every shot is captured with the richest color and depth.

The sensor's rapid scan time, twice as fast as any previous RED camera, allows for remarkable high-speed capture of up to 600 fps at 2K, opening up a world of creative possibilities for slow-motion sequences. Additionally, the V-RAPTOR continues RED's legacy of superior image quality with its proprietary REDCODE RAW codec, enabling 16-bit RAW recording and integration with RED's latest IPP2 workflow and color management system.

Despite its advanced capabilities, the V-RAPTOR is housed in a durable and innovative compact body, weighing just over 4 lbs, making it an ideal choice for on-the-go shooting. The camera system is equipped with dual 4K 12G-SDI outputs, XLR audio with phantom power via an adapter, and the capability for 1080p live streaming, ensuring it can adapt to a wide range of production requirements.

The V-RAPTOR 8K VV Camera System is complemented by the DSMC3 RED Touch 7" LCD Monitor, which offers a high-definition viewing experience with a 1920 x 1200 resolution display. The monitor boasts a peak brightness of 1300 nits and covers 100% of the DCI-P3 Color Gamut, ensuring accurate color representation. It also provides comprehensive camera control with an intuitive menu system and a suite of monitoring tools for optimal shot framing and exposure.

Storage solutions are robust and reliable with the PRO CFexpress 2TB Memory Card, designed in collaboration with Angelbird Technologies. This card delivers high-performance recording for 8K content and is the official certified media for the V-RAPTOR system. The included CFexpress Card Reader ensures rapid and secure data transfer, while the REDVOLT MICRO-V Battery Pack offers a compact power source with a 98Wh capacity, perfect for extended shooting sessions.

The package also includes a Compact Dual V-Lock Charger for efficient battery management, a V-RAPTOR Wing Grip for enhanced camera handling, and a 3' EXT-to-Timecode Cable for precise timecode synchronization.

The V-RAPTOR 8K VV DSMC3 Camera Starter Pack is the ultimate choice for professionals seeking a high-resolution, interchangeable lens camera system that excels in both flexibility and performance. With this starter pack, filmmakers are equipped to capture their vision with clarity and precision that only RED Digital Cinema can deliver.

RED Digital Cinema V-RAPTOR Features

  • V-RAPTOR 8K VV DSMC3 Camera Features
  • Lightweight & Compact DSMC3 Design
  • Up to 8K120 17:9, 6K198 S35 & 4K240 17:9
  • 35.4MP Full-Frame, Rolling Shutter CMOS
  • 17+ Stops Dynamic Range
  • Compact Micro-V Batteries
  • Canon RF Lens Support
  • CFexpress 2.0 Type-B Card
  • REDCODE Raw HQ, MQ & LQ Options
  • Right-Side LCD Screen User Interface
  • USB Type-C & Dual 12G-SDI Ports
  • DSMC3 Touch 7" LCD Monitor Features
  • Touchscreen Camera Control
  • 1920 x 1200 Resolution
  • 180deg Rotation, 1800 cd/m Brightness
  • 7" Daylight-Viewable LCD, 322 ppi
  • PRO CFexpress 2TB Memory Card Features
  • For Photos, Videos, and Raw 4K to 12K
  • Magnetic Proof
  • Can Withstand Extreme Temperatures
  • Designed by Angelbird for RED
  • Shock / Dust / Water / X-Ray Proof
  • CFexpress Card Reader Features
  • Bus Powered
  • CFexpress 2.0 Type B Card Slot
  • USB 3.2 Gen 2x2 Interface (20 Gb/s)
  • Write-Protect Switch
  • REDVOLT MICRO-V Battery Features
  • Compact, Micro V-Mount Form
  • Powers RED V-RAPTOR Camera
  • Transmits Camera & Select Accessory Data
  • 98Wh, Supports up to 12A Draw
  • Compact Dual V-Lock Charger Features
  • Charge 2x 98Wh Packs in <5 Hours
  • Charges 2x REDVOLT MICRO-V Batteries
  • Dual-Bay V-Mount Charger, Compact Size
  • Simultaneous Charging at 3 A
  • V-RAPTOR Wing Grip Features
  • Wing Grip is an ideal and versatile handle solution for the V-RAPTOR camera
  • RED EXT-to-Timecode Cable (3') Features
  • Provides a Timecode connection via 9-pin EXT connector

Product Documents

User Manual

Key Features

  • Capture stunning visuals with the V-RAPTOR 8K VV's impressive 35.4MP CMOS sensor.
  • Achieve cinematic brilliance using the camera's versatile REDCODE RAW recording.
  • Enjoy flexible lens options with the integrated RF mount, adapting to any shoot.
  • Experience smooth, stabilized footage, perfect for dynamic filmmaking scenarios.
  • Record pro-quality audio with dual-channel inputs, enhancing sound precision.
  • Power your creativity with included REDVOLT Micro-V batteries for extended shoots.

What's in the box:

  • Red Digital Cinema V-RAPTOR 8K VV Camera System
  • DSMC3 RED Touch 7.0" LCDf Monitor
  • PRO CFexpress 2TB Memory Card
  • CFexpress Card Readerf
  • 2x REDVOLT MICRO-V Battery
  • Compact Dual V-Lock Charger
  • 2x V-RAPTOR Wing Grip
  • 3' EXT-to-Timecode Cable
  • Red Digital Cinema 2 Year Limited Warranty
