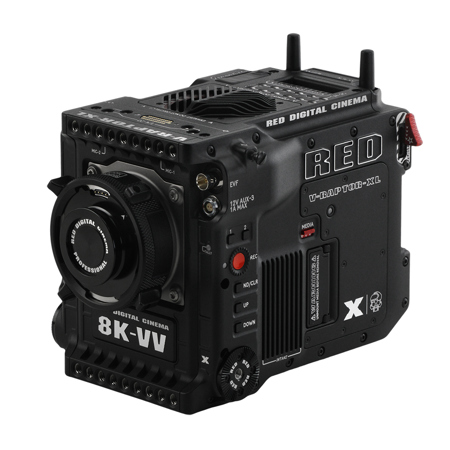

RED Digital Cinema V-RAPTOR XL (X) 8K VV DSMC3 Cinema Camera Gold Mount
SKU: RD7100395 MFR: 710-0395
Earn VIP Reward Points
Key Features
- Capture stunning visuals with the V-RAPTOR XL's 8K VV global shutter CMOS sensor.
- Achieve cinematic brilliance using the camera's impressive 17+ stops of dynamic range.
- Enjoy flexible lens options with the included V-RAPTOR XL PL Mount (shimmable).
- Record in multiple formats, including REDCODE RAW, for ultimate creative control.
- Experience seamless workflow integration with RED Connect for live 8K video over IP.
- Utilize integrated dual channel audio inputs for pristine sound in every recording.
Pre Order Now?
Final Sale - No Returns or Exchanges
Free Expedited Shipping
See Options
Qty
1
Need help? Ask our experts.
Overview
Compare
Accessories
Learn
Specs
Q&A
About RED Digital Cinema V-RAPTOR (X) 8K VV DSMC3
V-RAPTOR XL [X]
WORLD’S FIRST LARGE FORMAT GLOBAL SHUTTER
New flagship all-in-one DSMC3 system with RED Global Vision: a global shutter sensor and suite of tools for unprecedented flexibility and dynamic range.
V-RAPTOR® XL [X] 8K VV combines the strengths of RED's two families of cameras into one powerful all-purpose workhorse. The frame rates, light sensitivity, and resolution of the V-RAPTOR line combined with the global shutter advancements of KOMODO, the V-RAPTOR [X] 8K VV sensor is the culmination of the latest advancements in digital cinema image making. Using RED's newest 8K VV sensor, V-RAPTOR [X] XL leverages the benefits and flexibility of large format, global shutter, high framerate, 8K acquisition, all inside of a large-scale-production ready XL camera body.
TOOLS OF THE TRADE
V-RAPTOR XL [X] is designed to support high-end motion picture and television productions as well as any filmmaker who would benefit an all-in-one solution.
Dual voltage battery support offers compatibility with a wide range of common batteries found on set today, both 14 V batteries and high voltage 26 V V-Lock or Gold Mount options.
Built-in electronic ND allows cinematographers to precisely select their density in ¼, 1/3, and full stop increments, providing never before seen exposure and depth of field control inside a cinema camera of this level.
12 V and 24 V auxiliary power outputs allows camera assistants to power all the peripherals needed to do their job from one centralized place.
Front facing 3G-SDI and 2-Pin 12 V power, as well as compatibility with the DSMC3™ RED® Touch 7.0" LCD, supports any camera operators viewing preference.
Wireless timecode, genlock, and camera control, as well as four SDI outputs support the DIT, giving them access to everything they need at their cart.
Improved in-camera audio performance for run and gun single system audio setups.
Additionally, the V-RAPTOR XL [X] and the DSMC3 platform features advanced connectivity solutions which enable applications such as remote control and monitoring, in-camera Frame.io integration, AWS direct upload, RED Connect for live 8K R3D video over IP or live 4K over SMPTE ST 2110, and more.
GLOBAL VISION
V-RAPTOR XL [X] 8K VV is pushed to new limits with the introduction of RED Global Vision, a new suite of tools that use the global shutter sensor to provide even more flexibility and ease of use throughout the production process. Global Vision's Extended Highlights allows the camera to see even further into highlight detail, providing more detail for HOR finishes, or softer and more subtle highlight roll-off for SOR. RED Global Vision also includes Phantom Track to streamline any Virtual Production environment employing GhostFrameTM or Frame Remapping, capturing distinct R3D clips per each sub-frame slice, as well as allowing for monitoring of either slice live on-set over each SDI.
Features
- 8K VVV GLOBAL SHUTTER SENSOR: Groundbreaking new image-capture technology and the first of its kind in a cinema camera.
- GLOBAL VISION: Extended Highlights protection for unmatched color and detail in the highlights, and Phantom Track dual-capture mode for maximum flexibility and potential in virtual production workflows.
- 17+ STOPS OF DYNAMIC RANGE: Leverage the industry-best low-light performance of the 8K VV sensor and unlock even more dynamic range with Extended Highlights mode.
- INTEGRATED I/O: Flexible and robust power and I/O ecosystem with 4K and HD SDI monitoring, discreet LUT management, intuitively placed power outputs, all designed to support large productions.
- UP TO 120FPS @ 8K: With unmatched frame-rate performance in a cinema camera, shooters can leverage elements like timelapse, speed-ramping, or pull ultra-sharp stills.
- INTEGRATED CONTROL DISPLAY: Easy to navigate and intuitive. Allowing for comprehensive controls, including in-camera format selections, customized buttons, and more.
- ELECTRONIC ND SYSTEM: Internal electonically variable ND system with 2 to 7 stops in 1/4, 1/3, or full stop increments.
- ALL-NEW AUDIO ARCHITECTURE: Newly engineered audio hardware provides cleaner and clearer audio when connecting external microphones.
*Subject to credit approval. See adorama.com/edge for details.
Product Documents
User ManualKey Features
- Capture stunning visuals with the V-RAPTOR XL's 8K VV global shutter CMOS sensor.
- Achieve cinematic brilliance using the camera's impressive 17+ stops of dynamic range.
- Enjoy flexible lens options with the included V-RAPTOR XL PL Mount (shimmable).
- Record in multiple formats, including REDCODE RAW, for ultimate creative control.
- Experience seamless workflow integration with RED Connect for live 8K video over IP.
- Utilize integrated dual channel audio inputs for pristine sound in every recording.
What's in the box:
- RED Digital Cinema V-RAPTOR XL (X) 8K VV DSMC3 Cinema Camera
- V-RAPTOR XL PL Mount
- RED PL Mount Shim Pack
- RED 270W AC Power Adapter
- 10' 3-Pin XLR to 4-Pin 2B Power Cable
- RED Logo Sticker
- User Manual
- (Battery Not Included)
- RED Digital Cinema 2 Year Limited Warranty
