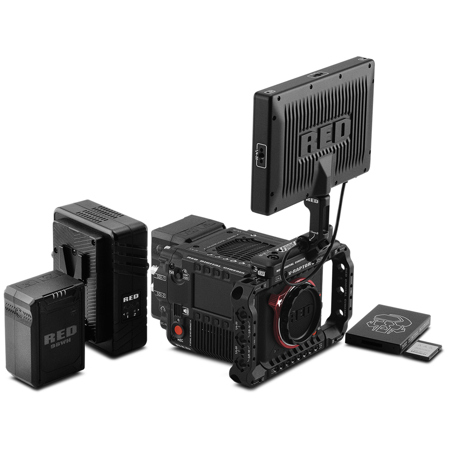

RED Digital Cinema V-RAPTOR (X) 8K VV DSMC3 Cinema Camera Starter Pack

SKU: RD7100401 MFR: 710-0409
Earn VIP Reward Points

Key Features

  • Capture stunning visuals with the V-RAPTOR [X]'s 8K VV global shutter CMOS sensor.
  • Achieve cinematic quality with 17+ stops of dynamic range for incredible detail.
  • Record ProRes 4444 XQ up to 4K/120P, ideal for high-end broadcast and film projects.
  • Utilize the integrated dual 12G-SDI outputs for streamlined monitoring workflows.
  • Enjoy versatile connectivity with Wi-Fi, USB-C, and Gigabit Ethernet for remote control.
  • Experience superior low light performance with the advanced global vision technology.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified

Final Sale - No Returns or Exchanges

Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

RED Digital Cinema V-RAPTOR (X) 8K VV DSMC3 Specifications

V-RAPTOR (X) 8K VV DSMC3

V-RAPTOR (X) 8K VV DSMC3

Jump to...
  • Sensor Type

    V-RAPTOR [X] 8K VV 35.4MP Global Shutter CMOS

  • Effective Pixels

    8192 x 4320

  • Sensor Size

    (40.96 x 21.6mm) (Diagonal: 46.31mm)

  • Dynamic Range

    17+ stops

  • Mount Type

    Integrated locking RF mount with electronic communication
    Supports /i PL lenses with RED RF to PL Adapters
    Supports Canon EF Adapter with communication and other adapters based on the RF mount

  • Max Data Rates

    Up to 800 MB/s using RED branded or other qualified CFexpress media cards

  • Redcode Raw Max Frame Rates

    120 fps at 8K 17:9, 150 fps at 8K 2.4:1
    140 fps at 7K 17:9, 175 fps at 7K 2.4:1
    160 fps at 6K 17:9, 200 fps at 6K 2.4:1
    192 fps at 5K 17:9, 240 fps at 5K 2.4:1
    240 fps at 4K 17:9, 300 fps at 4K 2.4:1
    320 fps at 3K 17:9, 400 fps at 3K 2.4:1
    480 fps at 2K 17:9, 600 fps at 2K 2.4:1

  • Best Available Redcode Settings

    REDCODE HQ, MQ, LQ, and ELQ at 8K 17:9 up to 60 fps
    REDCODE LQ and ELQ at 8K 17:9 up to 120 fps
    REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 up to 96 fps
    REDCODE MQ, LQ, and ELQ at 6K 17:9 up to 160 fps
    REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 up to 240 fps
    REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 up to 480 fps

  • Redcode Raw Acquisition Formats

    8K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x, 1.5x, 1.3x, 1.25x
    7K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 2x, 1.8x, 1.6x
    6K 17:9, 2:1, 2.4:1, 16:9, 1:1 and Anamorphic 1.5x, 1.3x, 1.25x
    5K 17:9, 2:1, 2.4:1, 16:9, 1:1
    4K 17:9, 2:1, 2.4:1, 16:9, 1:1
    3K 17:9, 2:1, 2.4:1, 16:9, 1:1
    2K 17:9, 2:1, 2.4:1, 16:9, 1:1

  • Apple Prores

    Dedicated recording in ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, and ProRes 422 LT at resolutions up to 4K (4096x2160) 120P
    Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) up to 60P

  • Construction

    Aluminum Alloy

  • Media Type

    CFexpress Type B

  • Battery

    Integrated V-Lock battery interface optimized for Micro V-Lock Batteries

  • DC Power Input

    11-17 V via 6-Pin DC-IN

  • Operating Temperature

    32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)

  • Storage Temperature

    -4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)

  • Storage Relative Humidity

    0% to 85% non-condensing

  • Red Global Vision

    Extended Highlights capability to capture more detail and color in extreme dynamic range scenarios
    Phantom Track recording mode to capture multiple LED instances as dedicated clips

  • Color Management

    Image Processing Pipeline 2 (IPP2)
    Supports 33x33x33 3D LUTs
    Supports import and adjustment of CDLs

  • Audio

    Integrated dual channel digital mono microphones, uncompressed, 24-bit 48 kHz
    Integrated dual channel (mic/line/+48V) input via 5-Pin 00B Audio Port, uncompressed, 24-bit 48 kHz
    3.5mm stereo headphone port

  • Autofocus

    Phase Detect with Face Detection

  • IP Connected

    Compatible with the RED Connect Module for live 8K R3D video over IP or live 4K over SMPTE ST 2110
    Dual band Wi-Fi (2.4 GHz or 5 GHz) for wireless camera control, live preview, and direct Camera to Cloud workflow via FrameIO or Amazon S3
    Wired control via USB-C or Gigabit Ethernet (compatible USB-C to Ethernet adapter required) allowing remote camera control, live MJPEG preview video feed and remote media offload

  • IP Connected (Contd.)

    Wired control via USB-C or Ethernet (compatible USB-C to Ethernet adapter required) for remote camera control, live preview, direct Camera to Cloud workflow and high speed remote media offload

  • Monitor Outputs

    Proprietary Top Accessory Port for Monitoring and Control
    Integrated dual 12G-SDI with 6G-SDI, 3G-SDI and 1.5G-SDI modes
    12G-SDI: Up to 4096 x 2160 4:2:2 for 60p
    6G-SDI: Up to 4096 x 2160 4:2:2 for 30p, 25p, 24p
    3G-SDI: Up to 2048 x 1080 4:2:2 for 60p
    1.5G-SDI: Up to 2048 x 1080 4:2:2 for 30p, 25p, 24p
    SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio

  • Monitor Options

    DSMC3 RED Touch 7.0" LCD
    RED Compact EVF with DSMC3 Adapter A
    Wireless 1080p live preview video feed via 2.4Ghz/5Ghz Wi-Fi for framing
    Integrated 2.4" LCD for camera control (no preview video)

  • Additional I/O

    Tri-Level Genlock Input via 9-Pin EXT
    LTC Timecode Input via 9-Pin EXT
    RS232 CTRL (using RCP2) via 9-Pin EXT

  • RED Control & RED Control Pro

    Access full camera controls and live preview from iOS or Android devices
    Pro App: Operate one or multiple cameras over an IP connection to synchronize settings, manage media files locally or upload directly to FrameIO, develop custom looks with advanced CDL and LUT controls, and more. Ideal for control of multi-camera arrays, multi-cam shoots, and live events, all from one central location

  • RED Control & RED Control Pro (Contd.)

    Standard app available from the Apple App Store and Google Play Store
    RED Control Pro available via Apple App store only and requires additional purchase
    RED Control works wirelessly or wired via USB-C

  • Dimensions (L x W x H)

    Largest Fixed: 5.9 x 4.5 x 4.3" (149.63 x 115.5 x 108mm)

  • Weight

    Without Body Cap and CFexpress Card: 4.03 lbs (1.83kg)

DSMC3 RED Touch 7": Display

Jump to...
  • Color/Monochrome

    Color

  • Panel Type

    LCD

  • Display Size

    7.0" (17.8cm)

  • Screen Resolution

    1920 x 1200

  • Touchscreen

    Yes

  • Maximum Brightness

    1300 nits / cd/sq. m

  • Contrast Ratio

    1250:1

  • Refresh Rate

    60 Hz

  • Pixels Per Inch (ppi)

    322 ppi

  • Color Gamut

    100% DCI-P3

DSMC3 RED Touch 7": Inputs / Outputs

Jump to...
  • Video I/O

    1 x USB-C Input/Output

DSMC3 RED Touch 7": Optics

Jump to...
  • Field of View

    160 Degree

DSMC3 RED Touch 7": Power

Jump to...
  • Power Consumption

    18.3 W (Maximum)

DSMC3 RED Touch 7": Environmental

Jump to...
  • Operating Humidity

    0 to 85%

  • Operating Temperature

    32 to 100 Degree F (0 to 38 Degree C)

  • Storage Humidity

    0 to 85%

  • Storage Temperature

    32 to 248 Degree F (0 to 120 Degree C)

DSMC3 RED Touch 7": General

Jump to...
  • Mounting

    2x 1/4"-20 Female

  • Material of Construction

    Aluminum

  • Dimensions

    7.1 x 4.7 x 1.1" (180 x 118.7 x 28.8mm)

  • Weight

    1.2 lbs (568g)

PRO CFexpress Memory Card

Jump to...
  • Card Type

    CFexpress Type B

  • Storage Capacity

    2 TB

  • Bus Type

    PCI-Express 3.0

  • Read Speed

    Maximum: 1785 MB/s
    Sustained: 1785 MB/s

  • Write Speed

    Maximum: 1550 MB/s
    Sustained: 1300 MB/s

  • Operating Temperature

    14 to 158 Degree F (-10 to 70 Degree C)

  • Storage Temperature

    -4 to 185 Degree F (-20 to 85 Degree C)

  • Certifications

    RoHS, CE, UKCA, REACH, Kcc, RCM

CFexpress Card Reader: Performance

Jump to...
  • Media Card Reader

    1x CFexpress Type B (CFexpress 2.0 / PCIe 3.0 x4)

  • System Connection

    USB-C Male [3.2 Gen 2x2 (20 Gb/s)]

  • Power Source

    USB Bus Power

CFexpress Card Reader: General

Jump to...
  • Dimensions (W x H x D)

    3.7 x 2.6 x 0.5" (95 x 65 x 12mm)

  • Weight

    4.2 oz (120g)

REDVOLT MICRO-V Battery

Jump to...
  • Mount / Series Type

    V-Mount

  • Chemistry

    Lithium-Ion

  • Battery Capacity

    98 Wh

  • Output Voltage

    14.8 VDC

  • Maximum Load

    12 A

  • Accessory I/O

    1x D-Tap / P-Tap Output
    1x USB-A Output

  • USB Output

    5 V

  • Battery Info

    Optional, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    2

  • Dimensions (W x H x D)

    3.9 x 2.8 x 1.9" / 99.8 x 71.6 x 49.2 mm

  • Weight

    1.2 lbs (544.3g)

Compact Dual Charger: Battery Charger

Jump to...
  • Charger Compatibility

    RED REDVOLT / RED REDVOLT XL / V-Mount

  • Number of Battery Bays

    2

  • Multi-Bay Charging Modes

    Independent, Simultaneous

  • Charger Power Source

    AC Power (Cable Included)

  • Charger Power I/O

    1x IEC Female Input
    100 to 240 VAC, 50 / 60 Hz

  • Charger Included Adapter / Cable

    1 x USA Type-A Plug to IEC Male Cable

  • Recharge Time

    1 to 5 Hours (98 Wh Batteries)

  • Indicator

    LED

  • Dimensions

    5.5 x 4.5 x 3" (139.7 x 114.3 x 76.2mm)

  • Weight

    1 lbs (453.6g)

Compact Dual Charger: Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    68 to 122 Degree F (20 to 50 Degree C)

V-RAPTOR Wing Grip: Mounting

Jump to...
  • Accessory Mounting

    Multiple x 1/4"-20 Thread
    Multiple x Anti-Twist 3/8"-16 Thread

  • Shoe Mounting

    No

  • Rosettes

    No

  • Rail Mounting

    No

V-RAPTOR Wing Grip: General

Jump to...
  • Materials

    Aluminum

  • Built-In Controls

    No

EXT-To-Timecode Cable

Jump to...
  • Connector 1

    1 x LEMO 9-Pin

  • Cable Length

    3' (91.44cm)

  • UPC Code

    810016944454

38 Accessories for RED Digital Cinema V-RAPTOR (X) 8K VV DSMC3 Cinema Camera Starter Pack

  • All Accessories (38)
  • Memory & Storage (4)
  • Extended Warranty (1)
  • Lenses (8)
  • Viewfinders (1)
  • Adapters & Mounts (1)
  • Grips & Handles (1)
  • Monitor & Recorder (3)
  • Viewfinder Accessories (6)
  • Card Readers (1)
  • Microphones & Audio (3)
  • Batteries & Power Supply (3)
  • Flash & Lighting (6)

About RED Digital Cinema V-RAPTOR (X) 8K VV DSMC3

V-RAPTOR [X]

Built off the same set of keystone features as the V-RAPTOR, The Red Digital Cinema V-RAPTOR (X) 8K VV DSMC3 Cinema Camera is the first large format global shutter camera available. No more worrying about the warping caused by a rolling shutter.

With the new global shutter, RED Global Vision, and a suite of other powerful features, the Red Digital Cinema V-RAPTOR (X) 8K VV DSMC3 Cinema Camera is a powerful workhorse for professional filmmakers.

A Powerful Global Shutter

By exposing the entire sensor at once, a global shutter allows creators to shoot the scenes they want with no compromise or post-production needed to remove the “jello effect.” Alone, the new global shutter would be an amazing upgrade, but Red has also introduced a suite of tools to simplify and enhance the production process: Red Global Vision.

RD7100390

Red Global Vision

Red Global Vision combined with the global shutter in the Red Digital Cinema V-RAPTOR (X) 8K VV DSMC3 Cinema Camera adds the flexibility of reaching into the highlights for more detail via Extended Highlights. This allows for more detail in High Dynamic Range (HDR) or can be turned off for a more subtle highlight roll-off when finishing with Standard Dynamic Range (SDR). In addition, RED Global Vision features Phantom Track, which helps streamline those virtual production environments using GhostFrame TM or Frame Mapping. Since individual R3D clips are captured per sub-frame slice, they can be monitored live on set via SDI.

RD7100390

Built for Powerful Productions

The Red Digital Cinema V-RAPTOR (X) 8K VV DSMC3 Cinema Camera is designed to support large productions with a large array of I/O and power options. These include 4k and HD SDI monitoring, discreet LUT management, and power outputs that are placed intuitively. For those who want to include time-lapse, speed ramping, or pull ultra-sharp stills, shooting up to 120FPS at 8K is a powerful feature. With all-new audio hardware, users with external microphones will have cleaner sound when recording in a camera. Electronic ND filters ranging from 2 to 7 stops in 1/4, 1/3, or full stop increments allow shooters to easily work in changing environments and gain more creative control of scenes.

RD7100390

Features

  • 8K VVV GLOBAL SHUTTER SENSOR: Groundbreaking new image-capture technology and the first of its kind in a cinema camera.
  • GLOBAL VISION: Extended Highlights protection for unmatched color and detail in the highlights, and Phantom Track dual-capture mode for maximum flexibility and potential in virtual production workflows.
  • 17+ STOPS OF DYNAMIC RANGE: Leverage the industry-best low-light performance of the 8K VV sensor and unlock even more dynamic range with Extended Highlights mode.
  • INTEGRATED I/O: Flexible and robust power and I/O ecosystem with 4K and HD SDI monitoring, discreet LUT management, intuitively placed power outputs, all designed to support large productions.
  • UP TO 120FPS @ 8K: With unmatched frame-rate performance in a cinema camera, shooters can leverage elements like timelapse, speed-ramping, or pull ultra-sharp stills.
  • INTEGRATED CONTROL DISPLAY: Easy to navigate and intuitive. Allowing for comprehensive controls, including in-camera format selections, customized buttons, and more.
  • ELECTRONIC ND SYSTEM: Internal electonically variable ND system with 2 to 7 stops in 1/4, 1/3, or full stop increments.
  • ALL-NEW AUDIO ARCHITECTURE: Newly engineered audio hardware provides cleaner and clearer audio when connecting external microphones.

*Subject to credit approval. See adorama.com/edge for details.

Are you in search of a high-performance, all-in-one cinema camera Look no further than the V-RAPTOR (X) 8K VV DSMC3 Cinema Camera Starter Pack. This advanced camera system combines the best features of RED's two camera families, offering a powerful, versatile tool for all your filming needs.

The V-RAPTOR (X) 8K VV is equipped with an 8K VV sensor, which is the latest in digital cinema image-making technology. This sensor allows for large format, global shutter, high framerate, 8K acquisition, all housed in a compact, feature-rich body that weighs just over 4lbs.

This camera is the first of its kind to offer a large format global shutter, building on the keystone features of the original V-RAPTOR. It includes 2x 12G SDI's for unique monitoring views, a locking Canon RF style lens mount for a wide range of lens options, and CFexpress Type B media for up to 800MB/s formats such as 8K 120P.

The V-RAPTOR (X) 8K VV also introduces RED Global Vision, a suite of tools that utilize the global shutter sensor to provide even more flexibility and ease of use throughout the production process. This includes Extended Highlights for more detailed HDR finishes and Phantom Track for streamlined virtual production environments.

The DSMC3 RED Touch 7" LCD Monitor offers an HD viewing experience with a 1920 x 1200 resolution display panel, 1300 nits peak brightness, and 100% DCI-P31 Color Gamut coverage for exceptional color accuracy.

The Starter Pack also includes a PRO 2TB CFexpress 2.0 Type-B Memory Card, designed in collaboration with Angelbird Technologies to meet the high-performance needs of the V-RAPTOR system. The RED CFexpress Card Reader allows for fast data offloading, while the REDVOLT MICRO-V 98Wh 12A V-Mount Rechargeable Li-Ion Battery provides powerful, compact energy storage.

The V-RAPTOR Wing Grip offers a versatile handle solution, with an ergonomic machined grip and multiple tactical 1/4-20 and 3/8-16th anti-rotate mount points. The pack also includes a 3' Ext-To-Timecode Cable for a Timecode connection via 9-pin EXT connector.

In summary, the V-RAPTOR (X) 8K VV DSMC3 Cinema Camera Starter Pack is a comprehensive solution for filmmakers seeking high-quality, versatile equipment for their production needs.

RED Digital Cinema V-RAPTOR (X) 8K VV DSMC3 Features

  • RED's newest 8K VV sensor
  • V-RAPTOR [X] leverages the benefits and flexibility of large format
  • Global shutter, high framerate, 8K acquisition
  • All inside of a compact and feature rich body weighing just over 4 lbs
  • Starter Pack Includes V-RAPTOR (X) 8K VV Camera, DSMC3 RED Touch 7" Monitor, PRO 2TB CFexpress Card, Card Reader, 2x REDVOLT MICRO-V Batteries, Dual Charger, 2x Wing Grip and 3' Cable

Product Documents

User Manual

Key Features

  • Capture stunning visuals with the V-RAPTOR [X]'s 8K VV global shutter CMOS sensor.
  • Achieve cinematic quality with 17+ stops of dynamic range for incredible detail.
  • Record ProRes 4444 XQ up to 4K/120P, ideal for high-end broadcast and film projects.
  • Utilize the integrated dual 12G-SDI outputs for streamlined monitoring workflows.
  • Enjoy versatile connectivity with Wi-Fi, USB-C, and Gigabit Ethernet for remote control.
  • Experience superior low light performance with the advanced global vision technology.

What's in the box:

  • RED Digital Cinema V-RAPTOR (X) 8K VV DSMC3 Cinema Camera
  • DSMC3 RED Touch 7" LCD Monitor
  • PRO 2TB CFexpress 2.0 Type-B Memory Card
  • CFexpress Card Reader
  • 2x REDVOLT MICRO-V 98Wh 12A V-Mount Rechargeable Li-Ion Battery
  • Compact Dual Charger
  • 2x V-RAPTOR Wing Grip
  • 3' Ext-To-Timecode Cable
  • RED Digital Cinema 2 Year Limited Warranty
