RED Digital Cinema V-RAPTOR XL 8K VV Cinema Camera Production Pack, Gold Mount

SKU: RD71369 MFR: 710-0369
Earn VIP Reward Points

Key Features

  • Capture stunning 8K VV cinematic footage with the RED V-RAPTOR XL camera.
  • Achieve superior image quality in low light with the V-RAPTOR XL's advanced sensor.
  • Enjoy flexible lens options with the included PL Mount for cinema-quality capture.
  • Record high frame rates for smooth slow-motion shots using CFexpress media cards.
  • Utilize the 7" LCD monitor for precise focus and exposure in any production setting.
  • Get pristine audio input with the included XLR adapter for professional sound recording.
See More Product Details
Special Order?Estimated to Ship: 02/02/2026
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Accessories
Learn
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the resolution of the V-RAPTOR XL 8K VV Cinema Camera?

The V-RAPTOR XL 8K VV Cinema Camera records in 8K VV resolution, providing exceptional detail and quality for professional filmmaking.

What type of monitor does the V-RAPTOR XL 8K VV Cinema Camera Production Pack come with?

The package includes a RED Touch 7" LCD monitor. This high-definition monitor offers a 1920 x 1200 resolution display panel, peak brightness of 1300 nits, and high pixel density at 322 ppi.

What storage media does the V-RAPTOR XL 8K VV Cinema Camera use?

The V-RAPTOR XL 8K VV Cinema Camera uses PRO CFexpress 2TB Memory Cards, designed in collaboration with Angelbird Technologies to meet the high-performance needs of 8K acquisition.

Is the V-RAPTOR XL 8K VV Cinema Camera compatible with other RED camera systems?

Some components of the V-RAPTOR XL 8K VV Cinema Camera Production Pack are not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems.

What type of power supply does the V-RAPTOR XL 8K VV Cinema Camera use?

The V-RAPTOR XL 8K VV Cinema Camera is powered through a Gold mount. The package also includes a Compact Dual Gold Charger for efficient charging of the REDVOLT MICRO-G batteries.

Reviews about this item

Review Summary

RED Digital Cinema V-RAPTOR XL Specifications

General

General

Jump to...
  • Color

    Black

  • Operating Conditions

    32 to 104°F / 0 to 40°C

  • Storage Conditions

    -4 to 122°F / -20 to 50°C up to 85% Humidity

  • Dynamic Range

    17+ stops

  • Material

    Aluminum

  • Power Consumption

    Max 18.3W

  • Sensor Size

    40.96 x 21.60mm (Diagonal: 46.31mm)

  • Max Data Rates

    Up to 800 MB/s using RED branded or other qualified CFexpress media cards

  • Color Management

    Image Processing Pipeline (IPP2)
    Supports 33x33x33 3D LUTs
    Supports import of CDLs

  • Refresh Rate

    60 Hz

  • Max Data Rates

    V-RAPTOR 8K up to 800 MB/s

  • Controls

    Run/Stop

Imaging

Jump to...
  • Lens Mount

    Interchangeable Mount with Included ARRI PL

  • Lens Communication

    Yes

  • Image Sensor

    40.96 x 21.6 mm (VistaVision) CMOS

  • Sensor Resolution

    35.4 Megapixel (8192 x 4320)

  • Image Stabilization

    No

  • Built-In ND Filter

    Mechanical Filter Wheel with Clear, 2-Stop (1/4), 3-Stop (1/8), 4-Stop (1/16), 5-Stop (1/32), 6-Stop (1/64), 7-Stop (1/128) ND Filters

  • Built-In CC Filter

    No

  • Internal Filter Holder

    No

  • Capture Type

    Video Only

Exposure Control

Jump to...
  • Shutter Type

    Electronic Rolling Shutter

  • Advertised Dynamic Range

    17 Stops

  • Focus Mode

    Automatic, Manual Focus

  • Internal Recording

    REDCODE RAW
    8192 x 4320 up to 120 fps
    7168 x 3780 up to 140 fps*
    8192 x 3456 up to 150 fps
    6144 x 3240 up to 160 fps*
    7168 x 3024 up to 175 fps*
    5120 x 2700 up to 192 fps*
    6144 x 2592 up to 200 fps*
    5120 x 2160 up to 240 fps*
    4096 x 2160 up to 240 fps*
    4096 x 1728 up to 300 fps*
    3072 x 1620 up to 320 fps*
    3072 x 1296 up to 400 fps*
    2048 x 1080 up to 480 fps*
    2048 x 864 up to 600 fps*
    *Sensor Crops During Recording
    REDCODE HQ/REDCODE LQ/REDCODE MQ

  • Video Output

    Proprietary Module
    4096 x 2160
    2048 x 1080

  • Fast-/Slow-Motion Support

    Yes

  • Gamma Curve

    RED IPP2

  • Built-In Microphone

    Mono

  • Audio Recording

    2-Channel, 24-Bit at 48 kHz

  • IP Streaming

    MJPEG
    1920 x 1080

Interface

Jump to...
  • Media/Memory Card Slot

    Single Slot: CFexpress Type B (CFast 2.0)

  • Internal Storage

    No

  • Video I/O

    3x BNC (12G-SDI) Output
    1x BNC (3G-SDI) Output
    1x Proprietary Output

  • Audio I/O

    1x 1/8" / 3.5 mm TRS Stereo Headphone Output
    1x 5-Pin LEMO Mic/Line Input (+48 V Phantom Power)

  • Power I/O

    1x LEMO 4-Pin (19.5 to 34VDC) Input
    2x D-Tap (12VDC up to 3 A) Output
    1x LEMO 2-Pin (12VDC at 3 A) Output
    1x LEMO 2-Pin (12VDC at 1.5 A) Output
    1x LEMO 2-Pin (12VDC at 1 A) Output
    2x Fischer 3-Pin (12VDC up to 3 A) Output

  • Other I/O

    1x BNC (Genlock)
    1x LEMO 5-Pin (Timecode)
    1x 9-Pin (Ethernet) Control/Data Input/Output
    1x USB-C

  • Wireless

    Wi-Fi

  • Mobile App Compatible

    Yes: Android & iOS
    App Name: RED Control

  • Global Positioning (GPS, GLONASS, etc.)

    No

Monitor

Jump to...
  • Display Type

    Primary Monitor: Fixed 2.4" Non-Touchscreen LCD

Viewfinder

Jump to...
  • Type

    Support via Video Out Only

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium-ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical Details

Jump to...
  • Dimensions

    4.55 x 4.25 x 5.89" / 115.5 x 108 x 149.63 mm

  • Weight

    7.99 lb / 3.62 kg (Body Only)

  • UPC Code

    810016943099

23 Accessories for RED Digital Cinema V-RAPTOR XL 8K VV Cinema Camera Production Pack, Gold Mount

  • All Accessories (23)
  • Digital Cinema Lenses (9)
  • Monitor & Recorder (2)
  • Microphones & Audio (3)
  • Viewfinder Accessories (2)
  • Viewfinders (1)
  • Flash & Lighting (6)

About RED Digital Cinema V-RAPTOR XL

V-RAPTOR XL 8K VV Production Pack from RED DIGITAL CINEMA adds a robust accessory selection to the V-RAPTOR XL 8K VV camera. This pack includes the V-RAPTOR 8K VV camera, four REDVOLT XL-G batteries, a dual-battery charger, an XL riser plate, two 2TB PRO CFexpress cards, a CFexpress card reader, a RED Touch 7" LCD monitor, an XL top handle with extensions, top and bottom XL 15mm LWS support brackets, a 5-pin to dual-XLR audio adapter, and an 18" DSMC3 RMI cable.

V-RAPTOR XL 8K VV Camera.

RED DIGITAL CINEMA's V-RAPTOR XL 8K VV Camera is small, fast, and versatile. Interface contains 3 12G-SDI outputs, 12 and 24V voltage output, and Power through Gold mount.

V-RAPTOR XL 8K VV Camera

Stunning 8K.

This successor to the V-RAPTOR offers multi-format recording in both 8K VV and 6K Super35, as well as an interchangeable lens mount and internal ND filters.

Stunning 8K.

Explore the world of professional filmmaking with the V-RAPTOR XL 8K VV Cinema Camera Production Pack from RED DIGITAL CINEMA. This comprehensive package includes the advanced V-RAPTOR 8K VV camera, equipped with four REDVOLT XL-G batteries, a dual-battery charger, an XL riser plate, and two 2TB PRO CFexpress cards.

The V-RAPTOR XL 8K VV Camera is a compact, high-speed, and versatile tool for filmmakers. It features 3 12G-SDI outputs, 12 and 24V voltage output, and power through a Gold mount. This innovative camera is the successor to the V-RAPTOR, offering multi-format recording in both 8K VV and 6K Super35, an interchangeable lens mount, and internal ND filters for superior image quality.

The package also includes a RED Touch 7" LCD monitor, providing an HD viewing experience with a 1920 x 1200 resolution display panel, peak brightness of 1300 nits, and high pixel density at 322 ppi. This monitor offers 100% DCI-P31 Color Gamut coverage for exceptional color accuracy and is powered by SmallHD PageOS, offering features like Waveform, Vectorscope, Histogram, False Color, and more.

The PRO CFexpress 2TB Memory Card, designed in collaboration with Angelbird Technologies, meets the high-performance needs of the V-RAPTOR system and 8K acquisition. The RED CFexpress Card Reader ensures fast and safe data offloading from the PRO CFexpress 2TB media cards to your workstation.

The Compact Dual Gold Charger offers dual-simultaneous Gold Mount charging for the REDVOLT MICRO-G batteries, ensuring continuous shooting with your V-RAPTOR. The V-RAPTOR Top Handle with Extensions kit provides a modular Top Handle solution, featuring a dedicated Start/Stop Button, ergonomic Bocote wood inlays, and multiple 3/8-16 and 1/4-20 mounting points.

The DSMC3 5-Pin to Dual XLR Adapter is a compact solution that breaks out the 5-Pin ODU port to Dual 3-Pin XLR ports, providing 48V phantom power with mic and line input. The 18" DSMC3 RMI Cable provides video, power, and control from the RED Monitor Interface to the DSMC3 RED Touch 7.0" LCD monitor.

Please note that some components of this package are not compatible with DSMC, DSMC2, RED RANGER, or KOMODO camera systems. The V-RAPTOR XL 8K VV Cinema Camera Production Pack is a sophisticated and high-quality solution for professional filmmakers seeking advanced and versatile equipment.

RED Digital Cinema V-RAPTOR XL Features

  • V-RAPTOR XL 8K VV Camera Features
  • Multi-Format 8K VV + 6K S35 Sensor
  • Purpose-Built Unified Body
  • Industry Standard Integrated I/O Array
  • Robust Professional Interchangeable Lens Mount
  • All-New Integrated Electronic ND System
  • Powerful & Versatile 12V and 24V Outputs
  • Remote-Production Ready Wireless Timecode & Genlock
  • Gold Mount Power
  • DSMC3 Touch 7.0" LCD Monitor Features
  • Touchscreen Camera Control
  • 1920 x 1200 Resolution
  • 180deg Rotation, 1800 cd/m Brightness
  • 7" Daylight-Viewable LCD, 322 ppi
  • Remote-Production Ready Wireless Timecode & Genlock
  • DSMC3 Touch 7.0" Hood Features
  • Compatible with DSMC3 Touch 7" LCD Monitor
  • PRO CFexpress 2TB Memory Card Features
  • For Photos, Videos, and Raw 4K to 12K
  • Magnetic Proof
  • Can Withstand Extreme Temperatures
  • Designed by Angelbird for RED
  • Shock / Dust / Water / X-Ray Proof
  • CFexpress Card Reader Features
  • Bus Powered
  • CFexpress 2.0 Type B Card Slot
  • USB 3.2 Gen 2x2 Interface (20 Gb/s)
  • Write-Protect Switch
  • Compact Dual Gold Mount Charger Features
  • Dual-simultaneous Gold Mount charging
  • Charges REDVOLT MICRO-G batteries
  • 3Amps to provide charge for two batteries in less than 4.5 hours
  • It will help ensure you can continue shooting with your V-RAPTOR
  • Top Handle with Extensions Features
  • Start/Stop Button
  • Ergonomic Bocote wood inlays
  • Multiple 3/8-16 and 1/4-20 mounting points
  • V-RAPTOR Tactical Top Plate is required to secure Top Handle Support Arm to the camera
  • DSMC3 5-Pin to Dual XLR Adapter Features
  • Compact solution to break out the 5-Pin ODU port to Dual 3-Pin XLR ports
  • Adapter can provide 48v phantom power with mic & line input
  • 18" DSMC3 RMI Cable Features
  • The DSMC3 RMI Cable should only be used with the DSMC3 RED Touch 7.0" LCD

Product Documents

User Manual

Key Features

  • Capture stunning 8K VV cinematic footage with the RED V-RAPTOR XL camera.
  • Achieve superior image quality in low light with the V-RAPTOR XL's advanced sensor.
  • Enjoy flexible lens options with the included PL Mount for cinema-quality capture.
  • Record high frame rates for smooth slow-motion shots using CFexpress media cards.
  • Utilize the 7" LCD monitor for precise focus and exposure in any production setting.
  • Get pristine audio input with the included XLR adapter for professional sound recording.

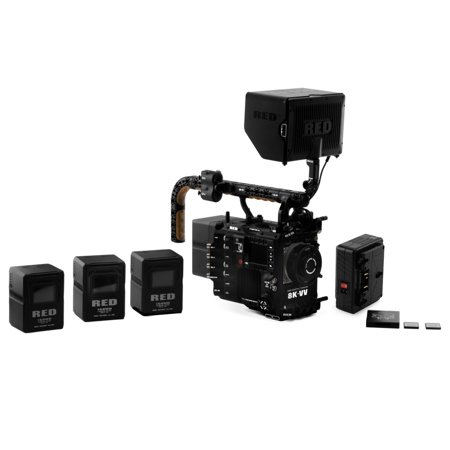

What's in the box:

  • RED Digital Cinema V-RAPTOR XL 8K VV Cinema Camera (Gold Mount)
  • DSMC3 Touch 7.0" LCD Monitor
  • DSMC3 Touch 7.0" Monitor Hood
  • REDVOLT XL-G Battery
  • Compact Dual Gold Mount Charger
  • PRO CFexpress 2TB Memory Card
  • CFexpress Card Reader
  • Top Handle with Extensions
  • Riser Plate
  • Top and Bottom 15mm LWS Rod Support Brackets
  • DSMC3 5-Pin to Dual XLR Adapter
  • 18" DSMC3 RMI Cable
  • RED Digital Cinema 2 Year Limited Warranty
